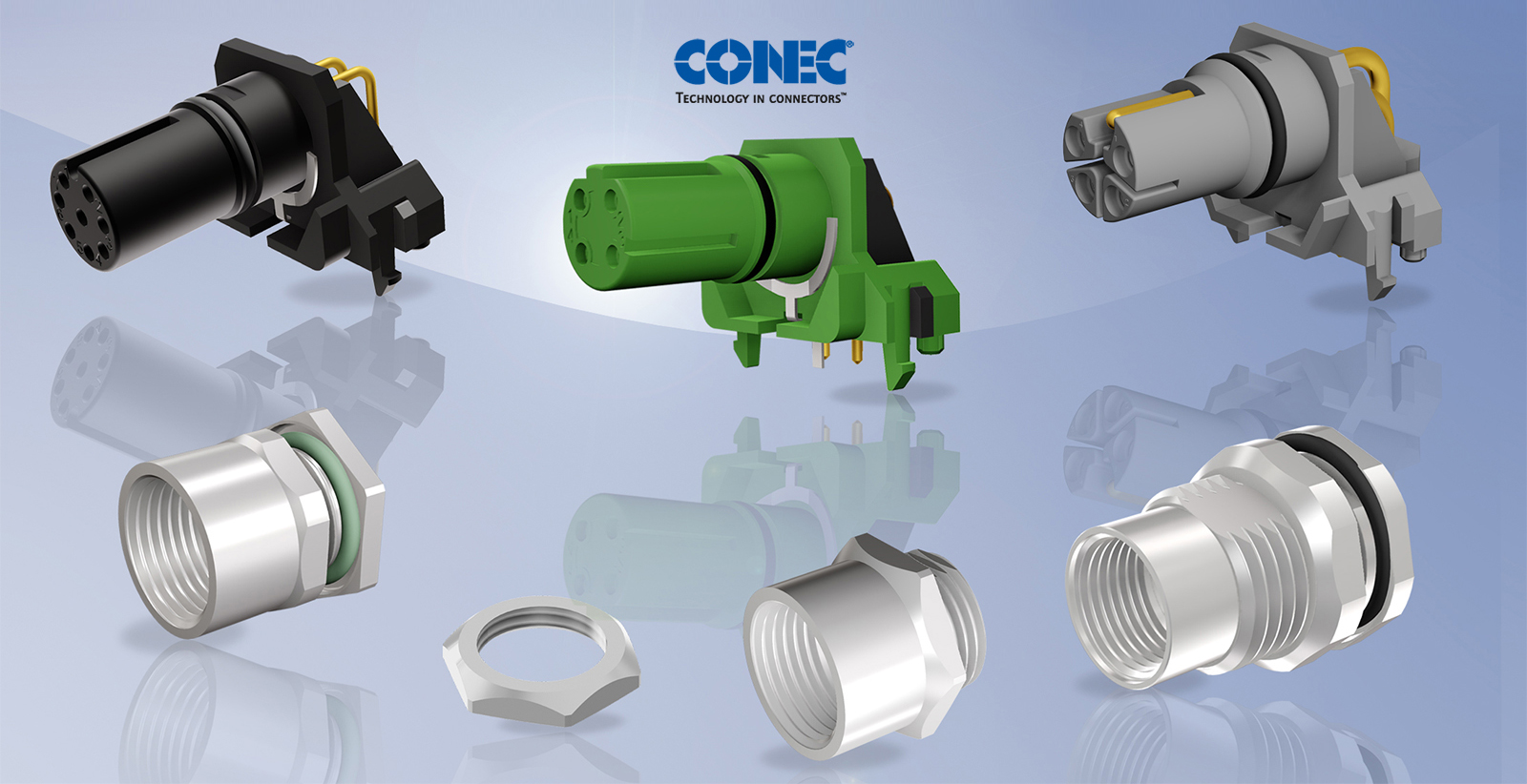

Due to the O-ring, the socket connectors are sealed against moisture from outside, even when unplugged. The two-part circuit board sockets are available with A-coding 4-, 5-, 8- and 12-pos. as well as D-coded 4-pos. for front and back panel mounting. The L-coded version is available for back panel mounting with 4- and 4+FE pos. The user can mount the board equipped with the insulating body in various socket geometries. The CONEC sockets are suitable for combined mounting and are ideal for a design where the M12x1 thread of the socket is directly formed.
The insulation body fitted with angled contacts is snapped into the circuit board and then processed in a wave solder bath or by selective soldering.
The connector housing is screwed into the device and the circuit board with the contact insert is mounted to it.
The spring-loaded shield plate contacts the connector housing and ensures the shield connection. In the installed state and locked with the counterpart, protection class IP67 is achieved. The angled connector design makes it possible to position the PCB horizontally in the device, which in turn facilitates the assembly. ▪ ds
