Fanless
All-in-One PC with
ARM architecture

ICP Germany is expanding the AFL4 series with the AFL4‑W07‑RK3566. The new All-in-One PC is one of the first 7-inch models on the market to have a Rockchip system-on-chip on board instead of an x86/x64 processor.
ICP Deutschland erweitert die AFL4-Serie um den AFL4-W07-RK3566. Der neue All-in-One-PC gehört zu den ersten 7-Zoll-Modellen auf dem Markt, die anstatt eines x86/x64-Prozessors ein System-on-Chip von Rockchip onboard haben.
HMI – Display

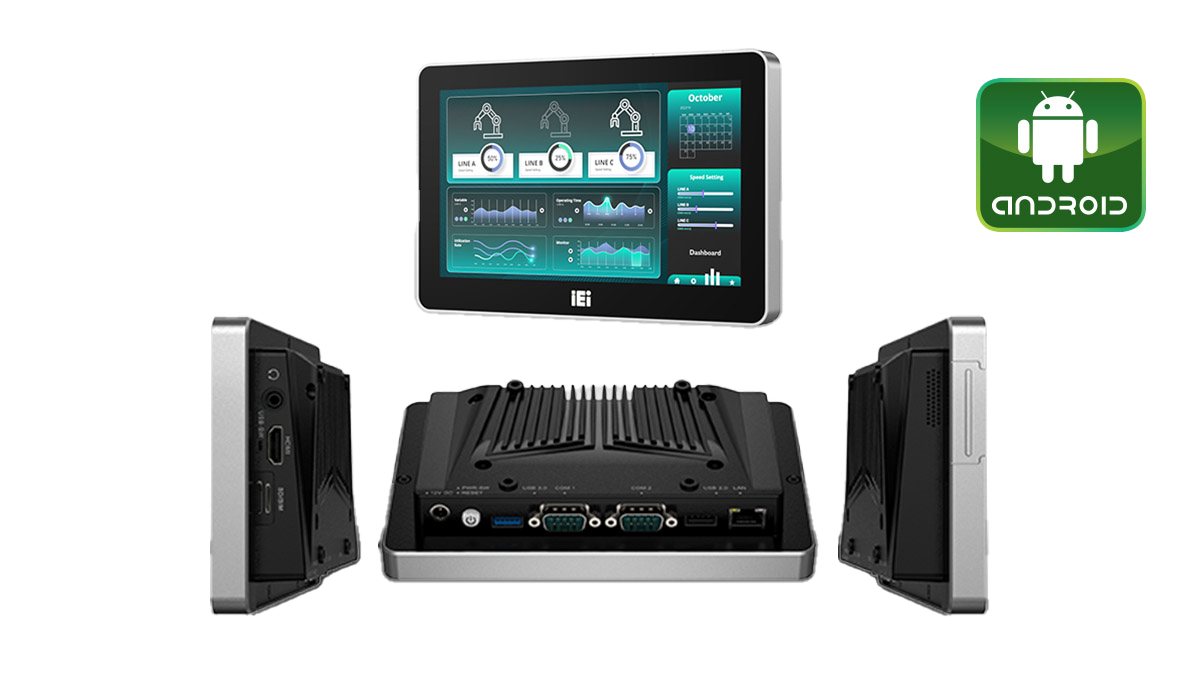

The computer is mounted on the back of the display
The computer is mounted on the back of the display
The AFL4-W07-RK3566 is available in three variants. The AFL4-W07-RK3566 with Debian 10 and the AFL4-W07-RK3566-A with Android 12 operating system are standard. Both variants are equipped with a Rockchip RK3566 four-core processor with up to 1.8 GHz clock speed and 4 GB onboard DDR4 RAM, which can be optionally increased to up to 8 GB. Both variants are also equipped with 32 GB eMMC memory.

ARM and yet richly equipped

A slimmed-down version with 16 GB eMMC memory and either 2 GB, 4 GB or 8 GB RAM is available as an option. The 16:9 7-inch display offers a resolution of 1024 x 600 pixels, 450 cd/m², a viewing angle of 170°/170° and a contrast of 800:1. The capacitive touch supports 10-finger operation, operation with gloves and wet hands and is protected against overhead light with anti-glare and anti-UV coating. The USB 3.0 Host Type A, USB 2.0 OTG Type A, GbE, two RS-232/422/485 interfaces and an HDMI output with up to 4K resolution are available as interfaces. There is also a micro card slot, a nano SIM slot and an M.2 slot for plug-in modules.
With an input voltage of 12 V DC, the Panel PC can be used in environments from 0 °C to 50 °C. ds
