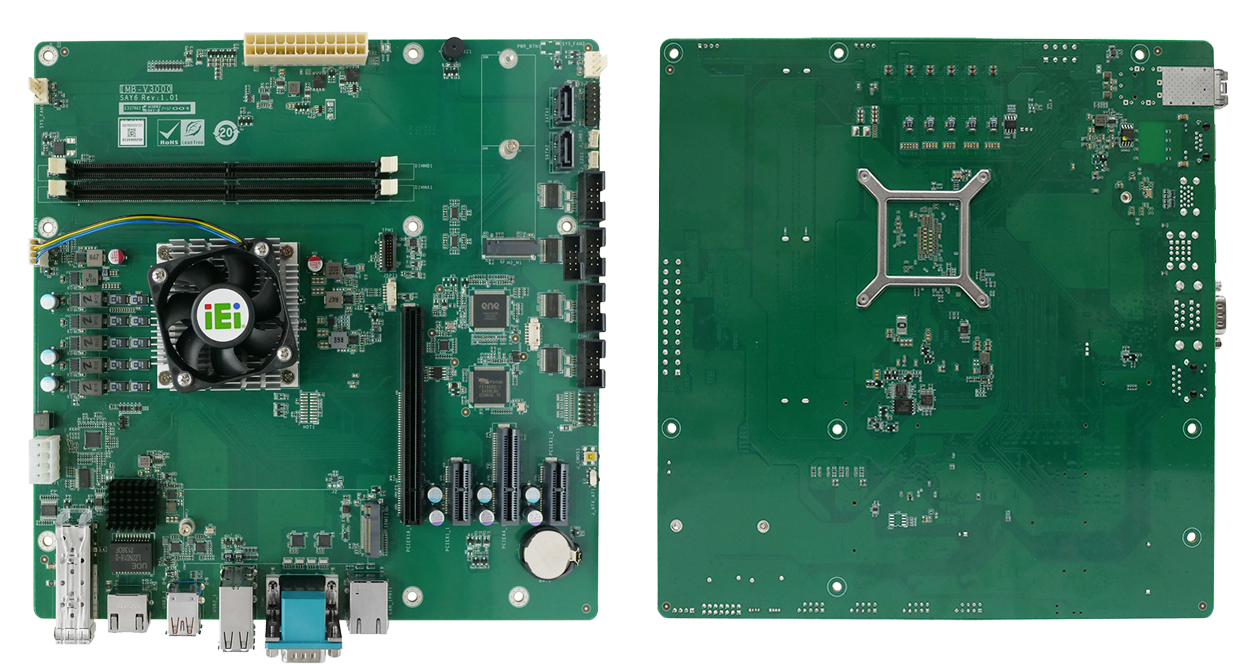

Top view and rear of board

Individually configurable

The mainboard supports up to 96 GB DDR5 RAM in dual-channel operation via two DIMM slots. A total of six PCIe slots are available for expansions: one PCIe x16 slot (with x8 signal), one PCIe x4 slot with open end, two PCIe x1 slots and two M.2 2242/2280 slots (one M-key with NVMe 4x1 support and one B-key with NVMe 4x1 support, which can also be used for the optional IPMI module). The IMB-V3000 offers comprehensive connectivity with one 10G SFI slot (SFP+), one 10 GbE (RJ45) port, two USB 3.2, four USB 2.0 and six serial ports (four RS-232, two RS-232/422/485). It also has two SATA ports with 6 Gb/s, 12 digital I/Os and a slot for the optional TPM module. The board is designed for industrial use and can be used in an operating temperature range of -10 °C to 60 °C. ICP Germany offers the IMB-V3000 as a product with long-term availability and supplies it on request as a pre-configured system with corresponding CPU and memory or as a ready-to-use solution in a 19-inch rack or midi tower housing.

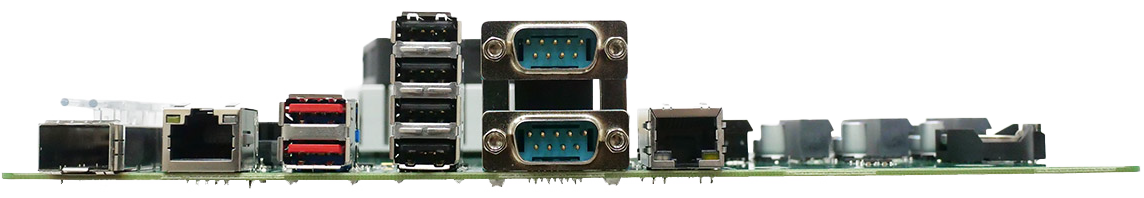

Interfaces
Industrial PC

AMD-based industrial

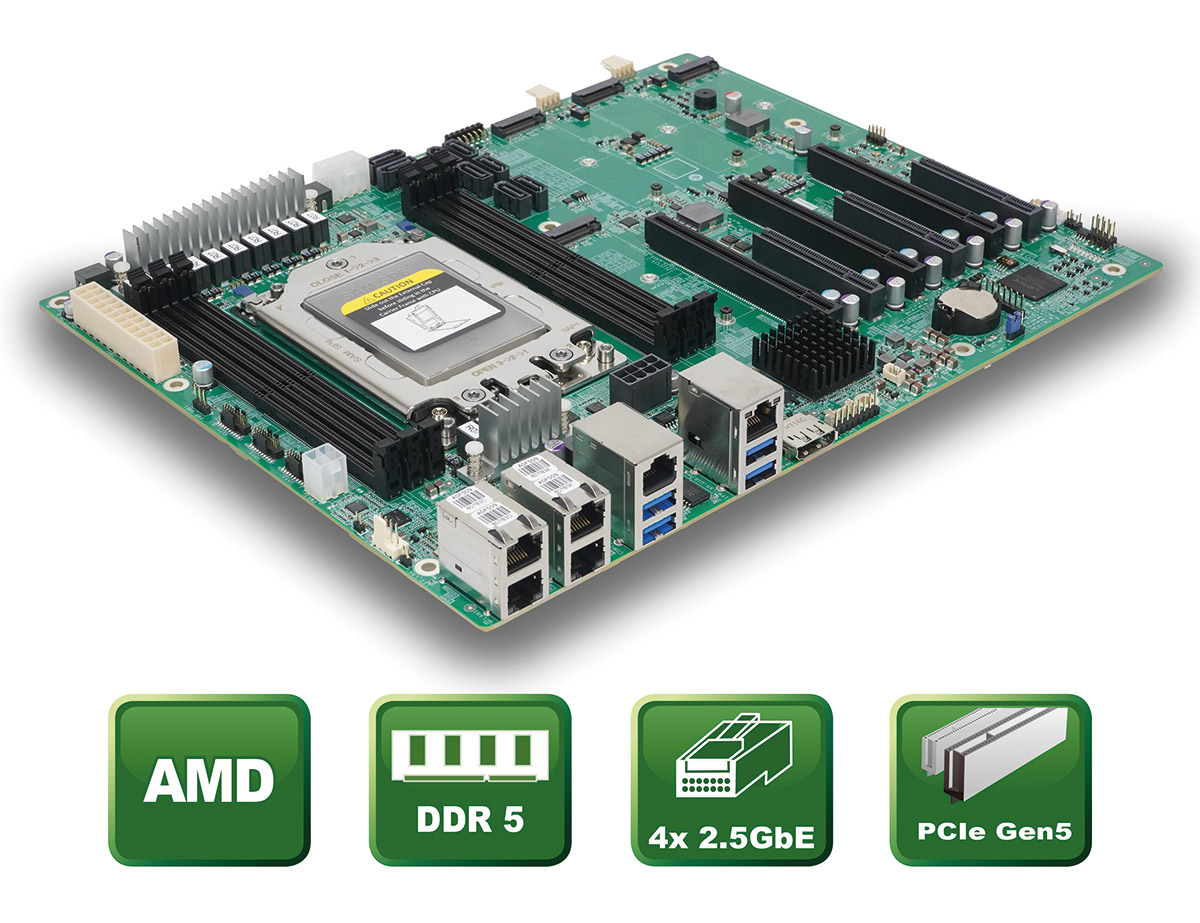

ATX Mainboard IMBAX-SP6

The IMBAX-SP6 supports AMD EPYC SP6 processors with Zen 4 or Zen 4C microarchitecture and enables the use of up to 4 Core Complex Dies (CCDs) with up to 64 CPU cores and 128 threads as well as a Thermal Design Power (TDP) of 70 to 225 watts. Up to 576 GB DDR5 ECC RAM can be installed in six DIMM slots. A total of six PCIe slots are available for expansions, including three PCI Express x16 slots, one of which is Gen5 and two Gen4, as well as three Gen4 x8 slots.
The motherboard also offers four M.2 2242/2280 slots with M-Key and NVMe support.

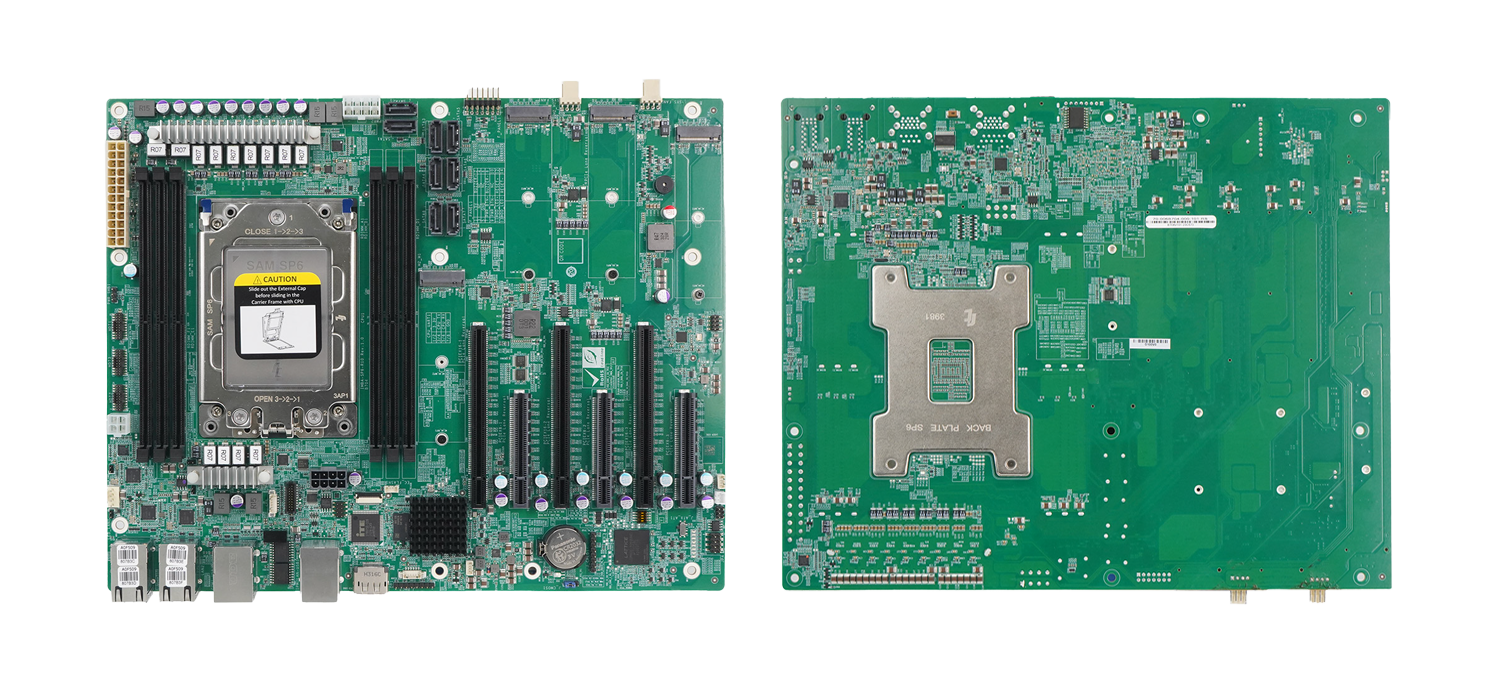

Top view and rear of board
