Industrial PC

Interfaces
Long-term available board

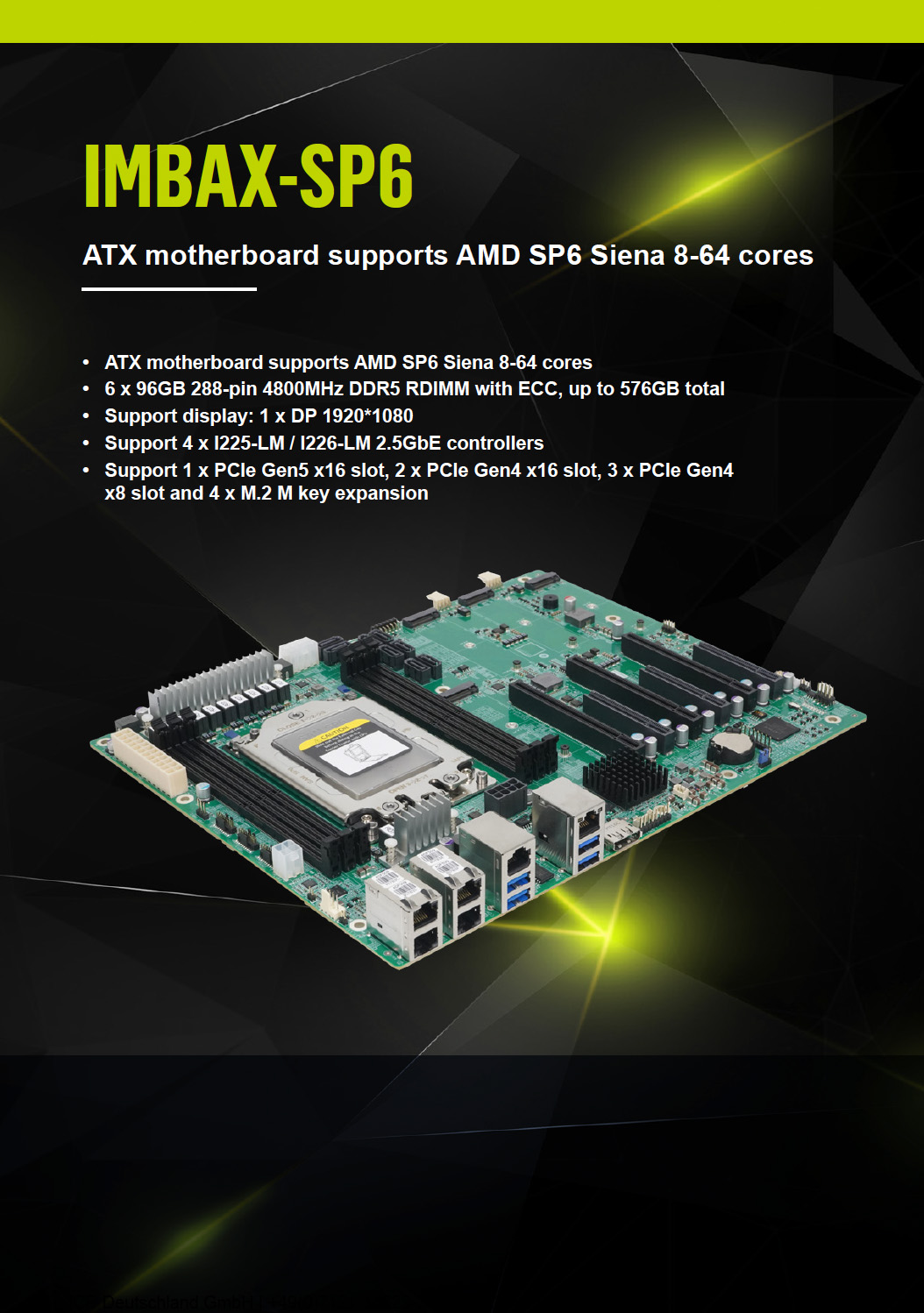

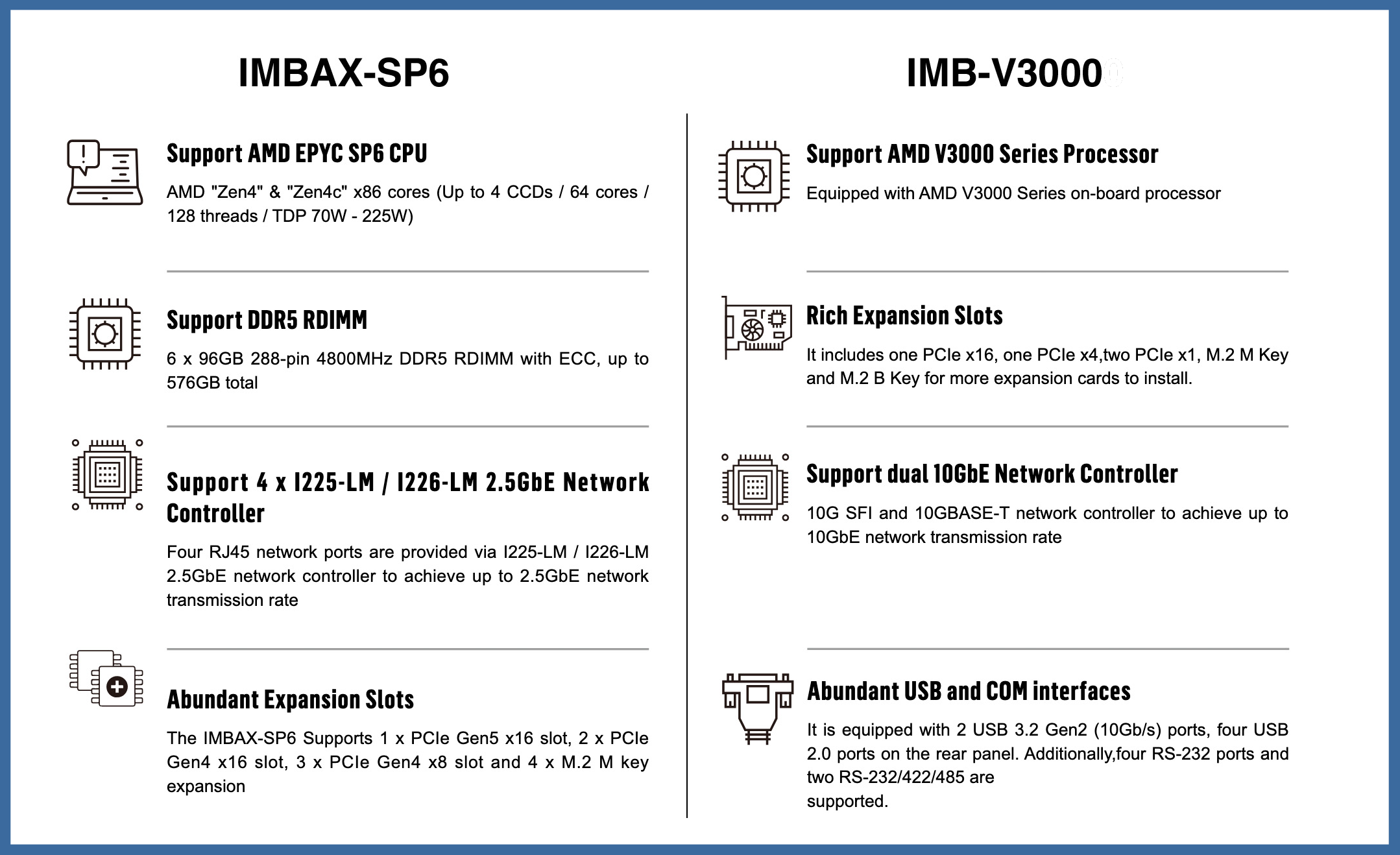

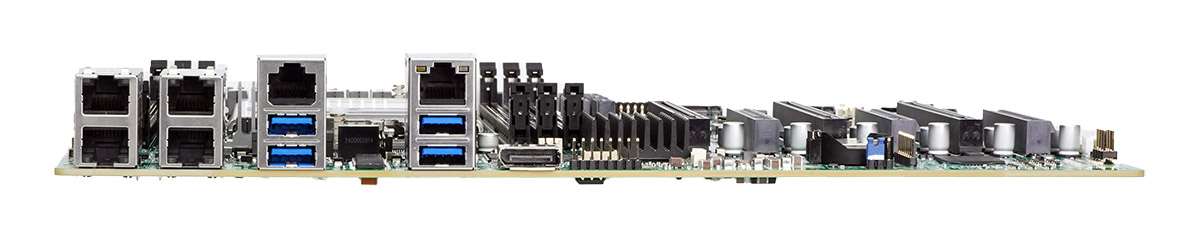

In terms of connectivity, the IMBAX-SP6 has four 2.5G Ethernet interfaces with Intel I225-LM/I226-LM controllers, eight SATA 6 Gb/s ports for storage media, four USB 3.2 and two USB 2.0 ports as well as an RS-232 console with RJ45 connector. A slot for an optional TPM module and three 4-pin fan connectors are also available. The IMBAX-SP6 is designed for industrial use, has long-term availability and supports an operating temperature range of 0 to 60 °C.ICP Germany supplies the IMBAX-SP6 on request as a pre-configured system with matching CPU and memory or as a ready-to-use solution in a 19-inch rack or midi tower housing. ▪ ds
