Industrial monitor series
in flat bezel design

The new DM2-F industrial monitor series from ICP Germany covers 30 variants and is targeted at HMI applications such as production/MES control, KIOSK systems and visualisation of production processes. There are three equipment versions for each variant: a fully equipped version for versatile applications, a slimmed-down and inexpensive Lite version as well as a High-Brightness version for use in brightly lit rooms.
HMI – Display
An industrial PC can be mounted on the back of the monitor
Common to all versions is the flat bezel front design, an IP65-protected front, an easily accessible OSD menu on the underside of the front, a metal housing and a projected capacitive touch screen. The monitors offer HDMI, DP, VGA (DB15), USB3.2 Gen1 Type-B, Line-Out and a DC power input (9 to 36 volts) as connection options. The fully equipped version is available in screen sizes from 10.4-inch to 23.8-inch in both classic and widescreen format.

Suitable for HMI applications in factory automation

The luminosity of the displays is between 350 and 500 candela, up to 1000 candela for the high-brightness versions, and is well suited for use in industrial environments. The monitors also have front speakers, which play clear sound even when installed, a front camera for AI applications, for example, and a quad USB 3.2 Gen1 USB hub with 10 watts of output power. The Lite version, however, is supplied without a camera, speakers and USB hub. The High-Brightness variants are available in 12.1-inch and 12.3-inch screen diagonals in both 4:3 and 16:10 format. All monitors support panel, wall and RACK mounting and work reliably in a temperature range of -20 °C to 60 °C. ds
Fit for industrial use

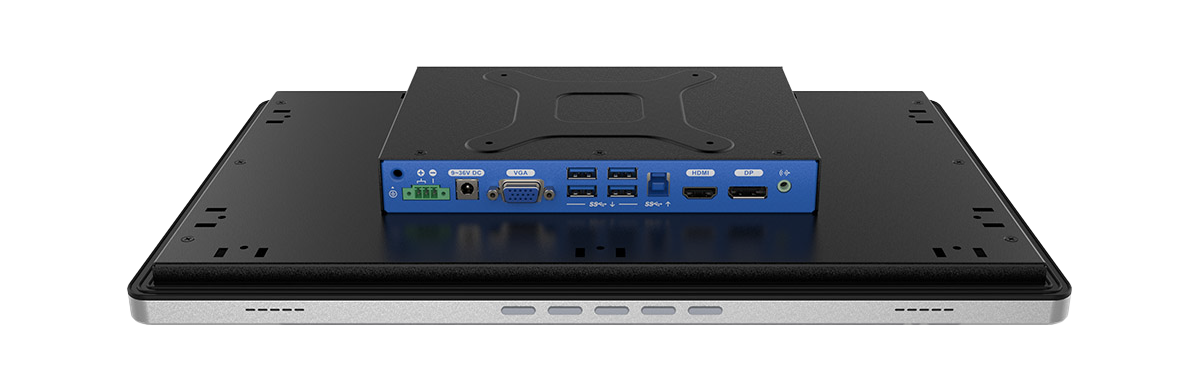

Rear of monitor
