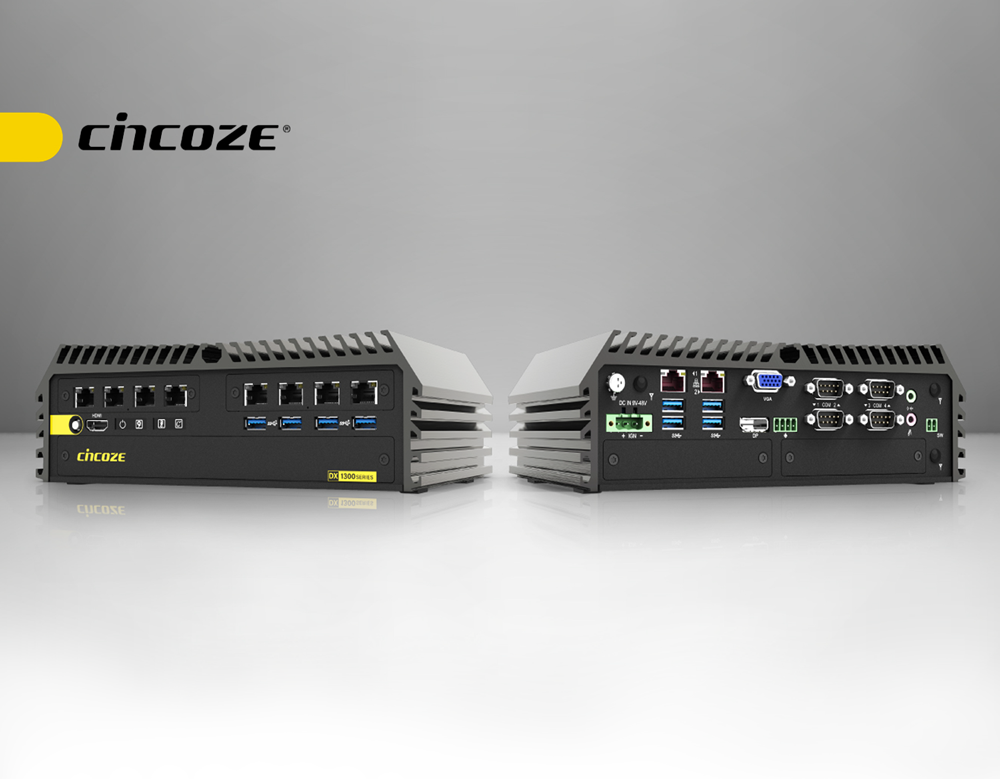

The newly released DX-1300 builds on this legacy, featuring the latest Intel® Core™ Ultra 200S processor, a compact footprint, rich I/O, and versatile expansion options to meet a wide range of application needs. The DX-1300 serves as the ideal edge computing platform for high-end image processing, AI inference, and multitasking data integration applications in space-constrained environments.
Heterogeneous Computing in an Ultra-Compact Chassis
The DX-1300 is powered by the Intel® Arrow Lake-S platform Core™
Ultra 200S processor, featuring an integrated CPU, GPU, and NPU hybrid computing architecture that delivers up to 36 TOPS of AI computing power. Compared to the previous generation, AI inference performance has increased by up to 3.5 times, supporting demanding edge AI applications such as real-time video analysis, smart inspection, and data analytics. Furthermore, it supports up to 96 GB of 6400 MHz DDR5 CSODIMM memory, significantly enhancing data transfer efficiency and reducing latency. This bolstered performance still fits in a chassis measuring only 242 x 173 x 75 mm – footprint comparable to an 11-inch iPad – making it perfect for integration into equipment control cabinets, production line machinery, and in-vehicle systems (in-vehicle computing/railway computing) where space is at a premium.

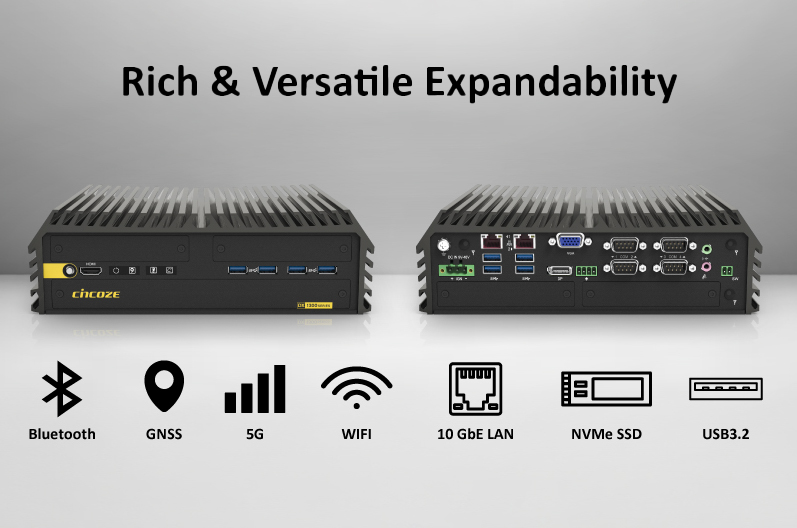

Versatile expansion and high-speed data transmission
The DX-1300 meets the needs of diverse application scenarios. In the field of wireless connectivity, multiple M.2 Key B and M.2 Key E slots enable the integration of 5G, Wi-Fi, and GNSS wireless modules for flexible mobile and remote deployment.
There is also space for mass storage. The DX-3000 supports NVMe SSDs for speed and SATA SSDs for capacity thus balancing rapid system boot times with extensive data retention requirements. Diverse I/O options, such as high-speed 10, 2.5, and 1 GbE LAN alongside USB 3.LAN with 10, 2.5, and 1 GbE as well as USB 3.2, meet a wide range of data transfer needs.
Secure connectors, namely M12 A-Coded and X-Coded LAN options, ensure stable connections in high-vibration or outdoor environments.
Up to 12 LAN ports or 8 PoE ports via modular expansion satisfy the requirements of machine vision and multi-camera system deployments.
