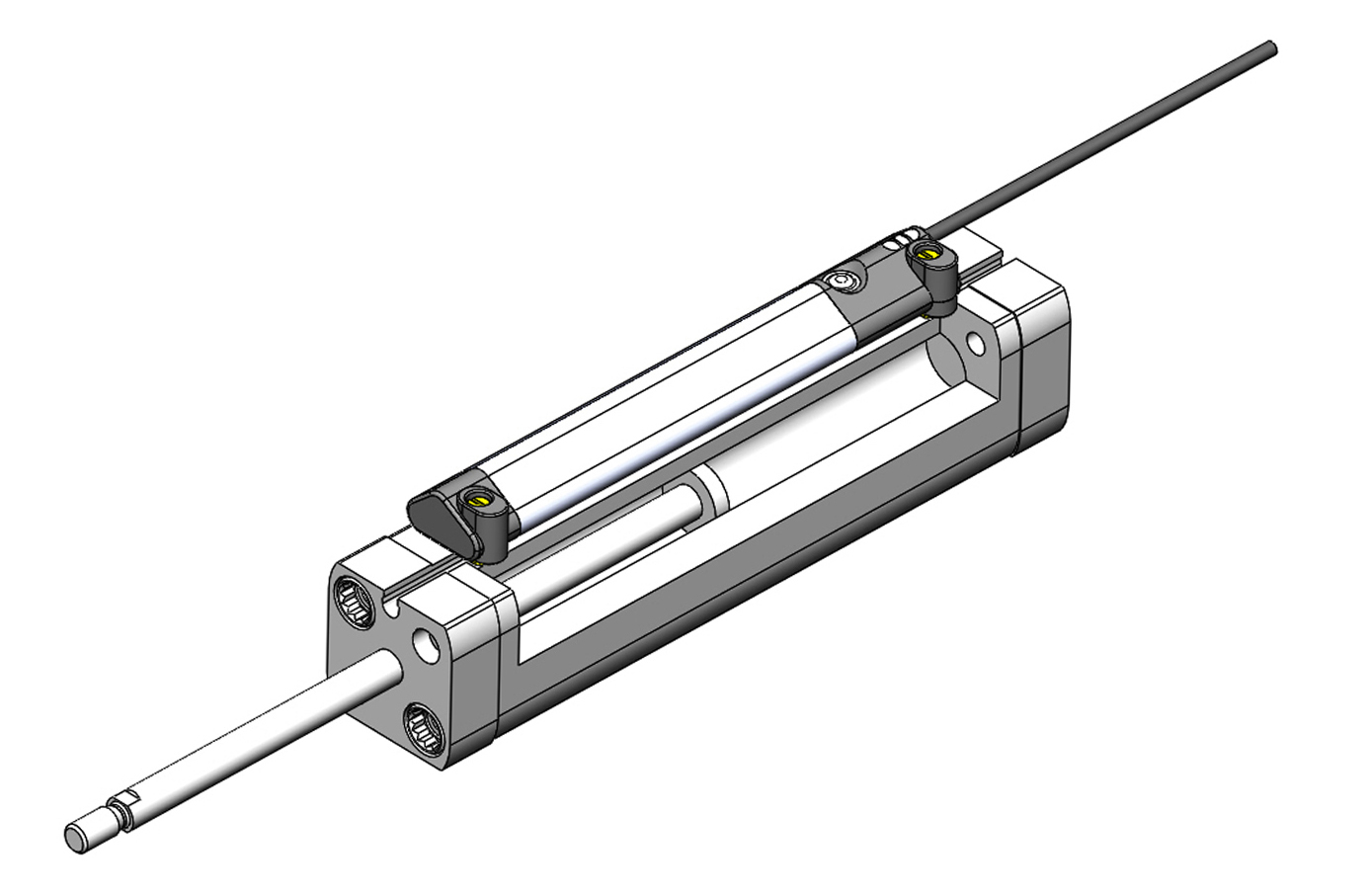

BMP sensor on cylinder with C-slot (Source: Balluff)
It monitors for example the sensor temperature, the number of starts and issues warnings when a configurable
limit value is violated. An internal counter continuously monitors the operating hours over the entire life of
the sensor, both since the last service and the last start-up. This makes it possible to plan for a possible
needed replacement at the next service interval. The displacement sensor is suitable for industry 4.0. In
addition to predictive maintenance, possible areas of application include condition monitoring and format
changes.
Fast format changes
thanks to IO‑Link
The integrated IO-Link interface also offers flexibility; it enables for example fast format changes thanks to
time-saving parameterization functions. This magnetic, non-contact and wear-free sensor continuously detects the
absolute position of a piston, is compatible with virtually all cylinder types and is quickly installed.

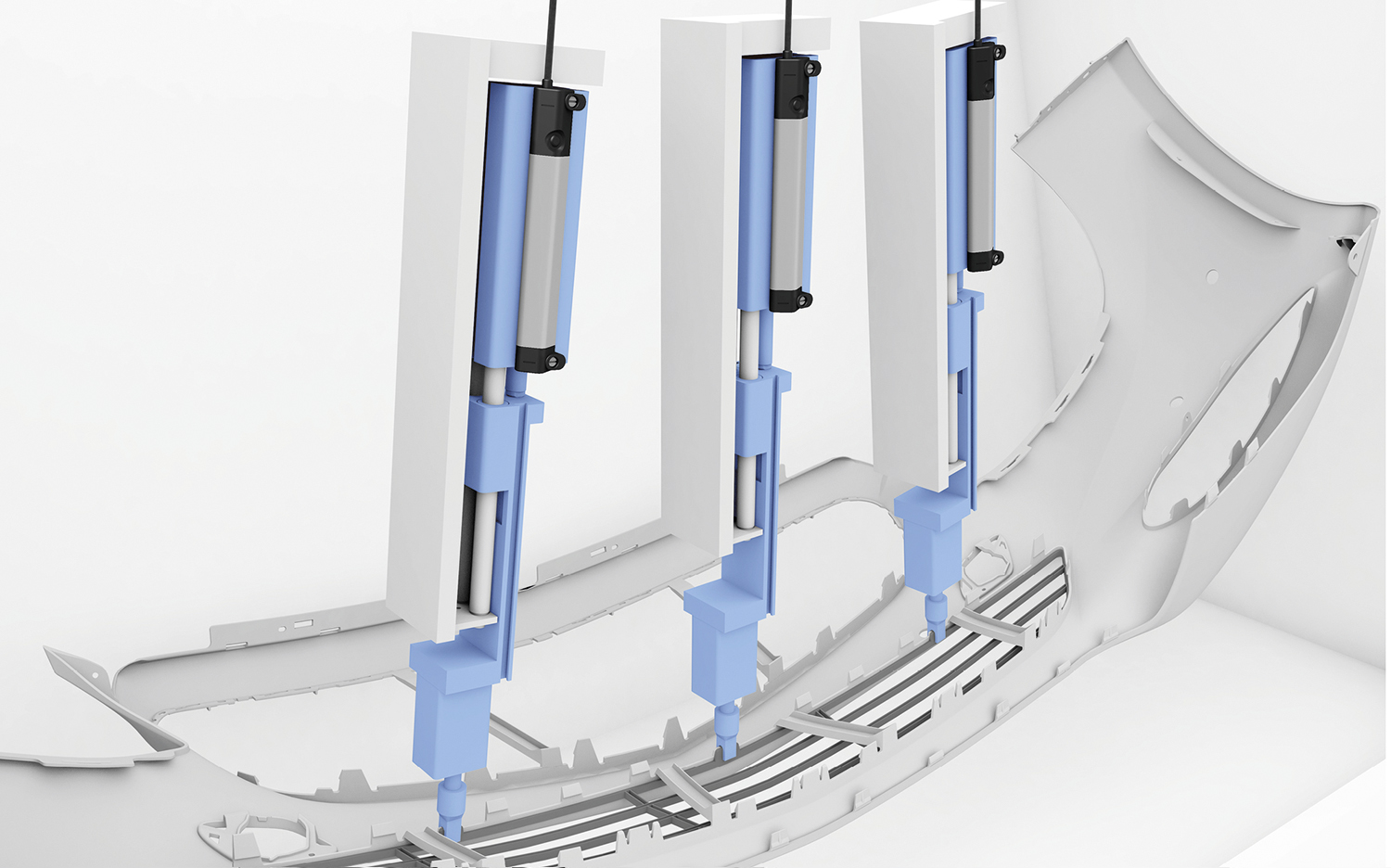

Preferred applications include those where the exact execution of a defined piston stroke is essential for the
process and product quality, for example in assembly, handling and factory automation.
