Drive Technology

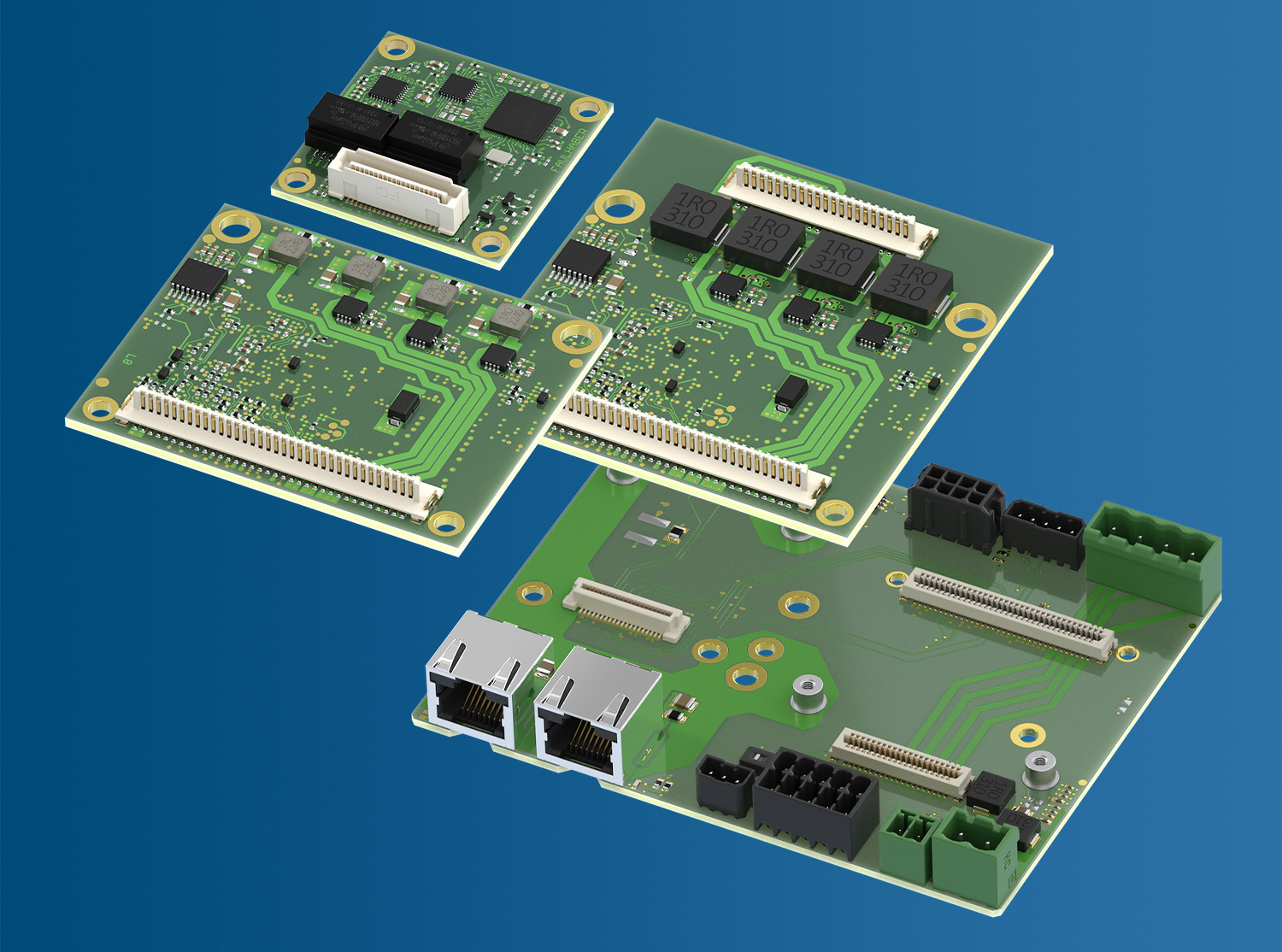

FAULHABER offers various adapter PCBs with interfaces
for the MC 3602 B and MC 3606 B motion controllers
A motion controller with even more possibilities: With the new MC 3602 B and MC 3606 B
motion controllers, the selection and commissioning of drive systems is now even simpler.
With the compact MC 3602/06 B, DC motors, brushless DC motors, and linear motors can be
operated with the typical position encoders as servo drive in accordance with CiA 402.
Also new is the support of stepper motors with encoder as servo or without encoder in
open-loop operation. The products ‚speak‘ EtherCAT, CANopen, RS232, and USB.
The new MC 3602 B variant is equipped with up to 2 A continuous output current for smaller motors,
and the MC 3606 B variant has up to 6 A continuous output current for medium-sized motors, which
simplifies work for engineers. For applications in which more than one motor technology is used,
just one motor controller and a GUI are needed. The free FAULHABER ‘Motion Manager 7’ software
is available for installation and commissioning. With this, the drive is running in just a few
steps. All main operating modes of the CiA 402 servo drive are offered. Integration is performed
via CANopen or RS232, and for commissioning, primarily the USB interface is used. Additionally,
an optional EtherCAT module enables cycle times as short as 1 millisecond. In conclusion,
the motion controllers can also be operated without central control in stand-alone mode.
The products were developed for the operation of motors with ironless winding and offer high dynamics here.
Standard motors – such as NEMA stepper motors – can likewise easily be operated with the MC 3602/06 B.
Everything from a single source
In combination with FAULHABER motors, the MC 3602 B and MC 3606 B deliver a sophisticated drive system with extensive protective functions.The products were developed for the operation of motors with ironless winding and offer high dynamics here.
Standard motors – such as NEMA stepper motors – can likewise easily be operated with the MC 3602/06 B.
