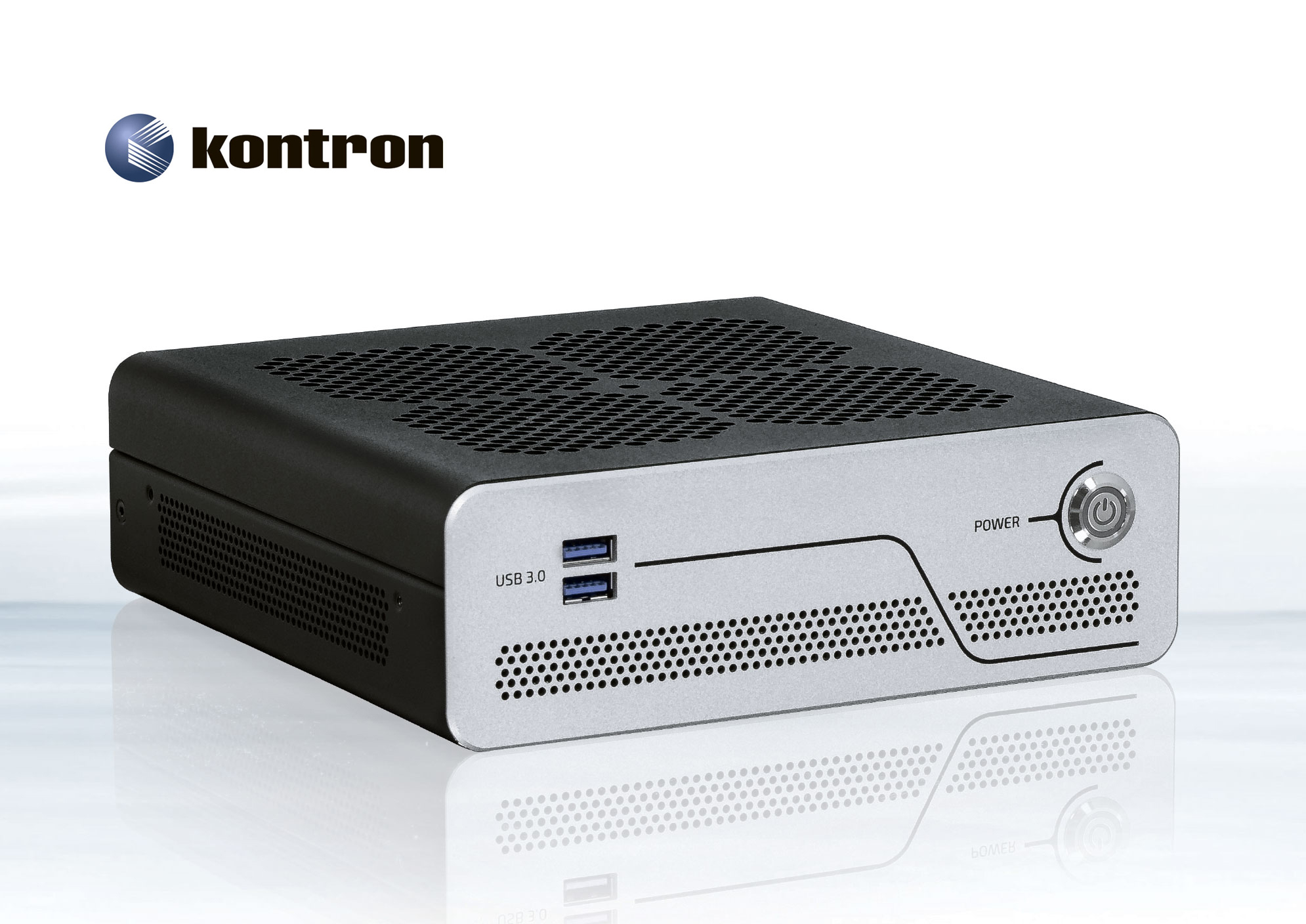

High-performance embedded computing in a compact format

The KBox B-201 comes equipped with an extremely quiet fan, making it suitable for use in noise sensitive environments. Versatile mounting options and a high number of interfaces offer high flexibility.
The Mini-ITX motherboard in the compact 170x170 mm form factor is equipped with two to four processor cores: optionally, users can choose between three 7th Gen Intel^® Core^TM processors (i3-7101E/i5-7500/i7-7700). On request, 6th Gen Intel^® CoreTM processors are available as well. KBox B-201's performance further gets boosted by the Intel^® Core^TM Q170 Express chipset.

Supporting Windows 10 IoT Enterprise and Yokto for Linux

The system offers three graphic ports in total, including two space-saving DisplayPorts V1.2, and one DVI-D interface. A 2.5-inch SSD SATA III/ SATA-600 as well as a M.2 SSD / SATA III are available as storage media for operating system or data. A mSATA SSD can be integrated optionally. Various interfaces, e.g. four USB 2.0 and six USB 3.0 ports, offer high flexibility. A serial interface (RS232/COM1) is provided for local data collection and sensor- or machine environment connectivity. Two Ethernet Ports 10/100/1000Mbit/s and a Mini-PCI plug-in card slot are available for system expansion. The Box PC runs on Windows^® 10 IoT Enterprise LTSB and Yokto for Linux operating systems

Horizontal or vertical operation

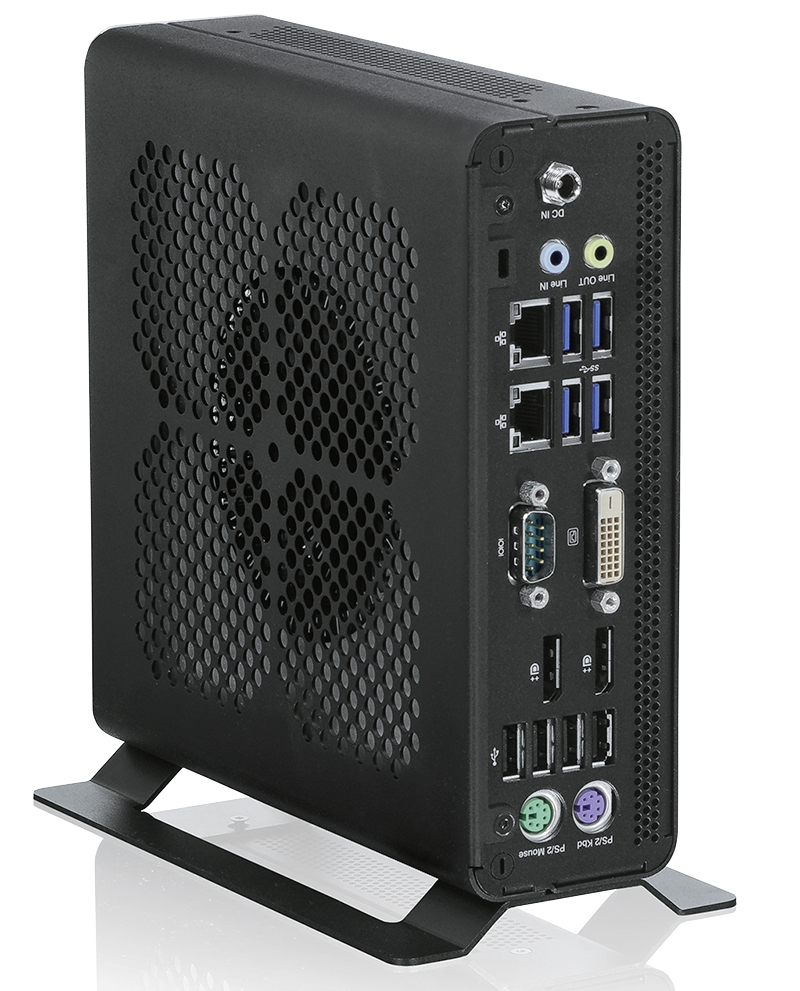

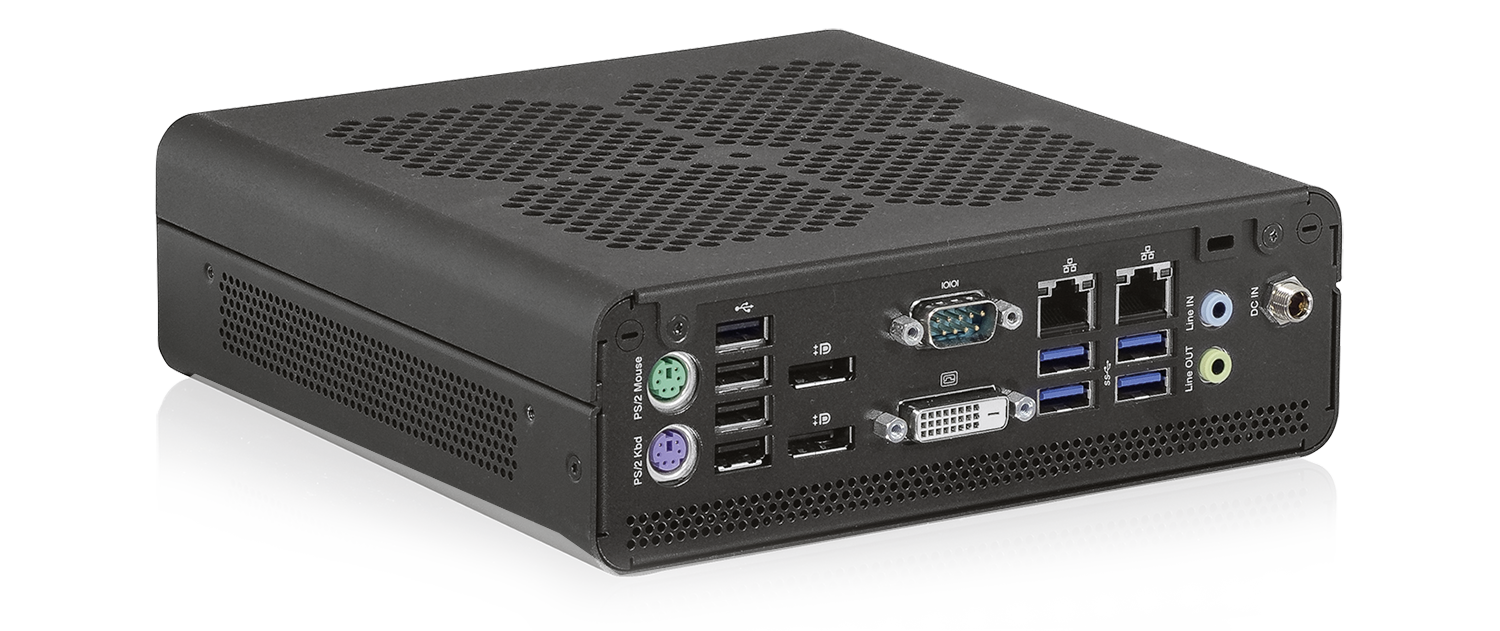

The KBox B-201's housing is manufactured of continuously hot-dip zinc coated mild steel sheet (according to EN10215) and aluminium with the measurements 190x60x190mm. Five different mounting options guarantee highest flexibility. The KBox B-201 can be used horizontally or vertically as a desktop PC, or the box PC can be fixed directly behind a monitor using a VESA mounting. For mounting underneath a table, on the wall or in a control cabinet, special angle pieces are available, likewise offering horizontal or vertical operation.
