They are used wherever a compact design, high reliability and fast diagnostic capability are required. These
compact connectors are available in both straight and angled versions – either as single-ended or as
connecting cables. They ensure reliable signal transmission with visual status monitoring directly at the
connection point.
Integrated LEDs
for Maximum Transparency

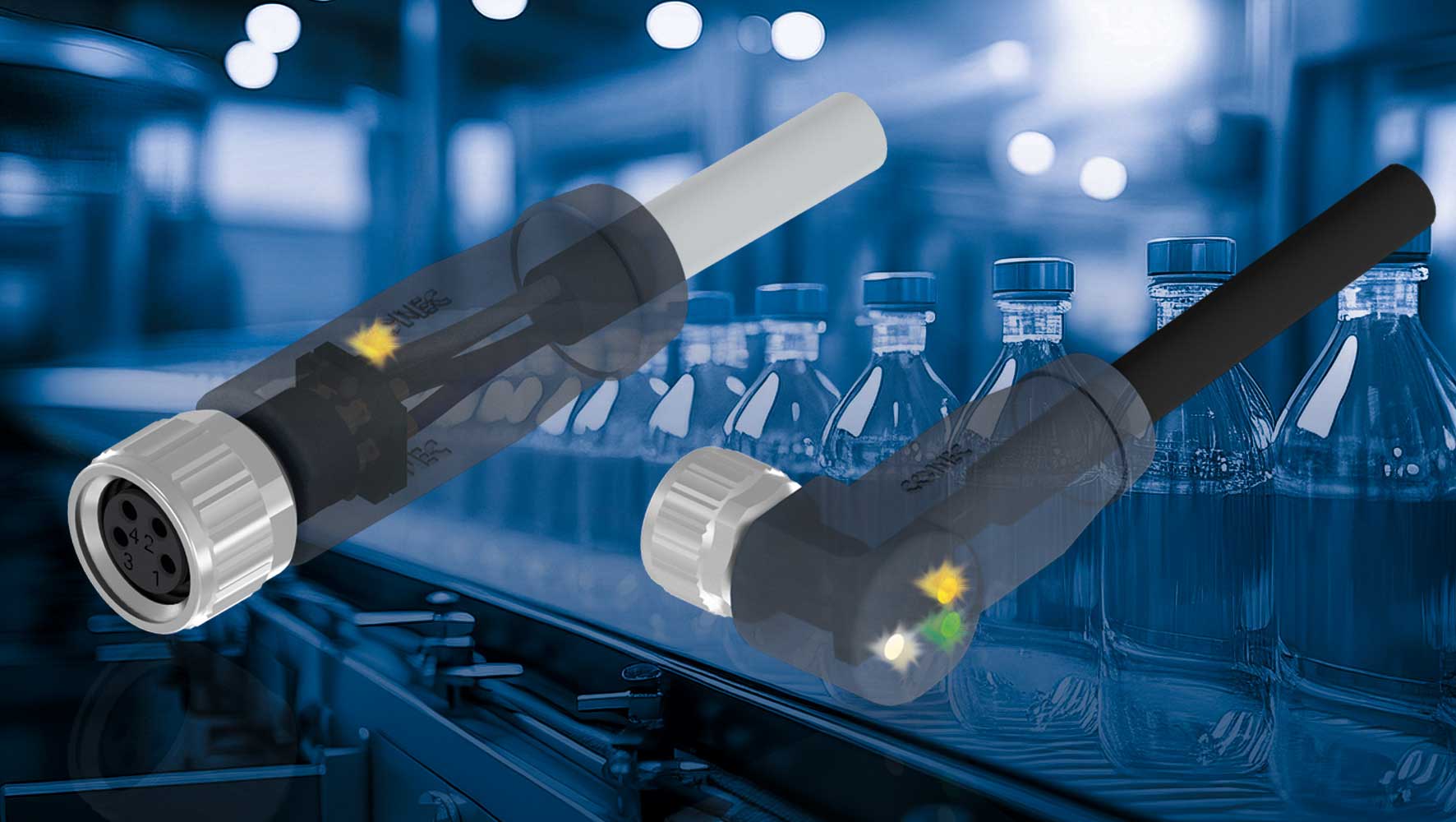

Depending on the version, the connectors feature two or three integrated LEDs that indicate the status of
power supply, signal, or switching state. This visual feedback enables quick commissioning, simplifies
maintenance, and reduces downtime through targeted fault diagnosis – directly at the connection.
Straight or Angled –
The Right Solution for
Any Installation Situation

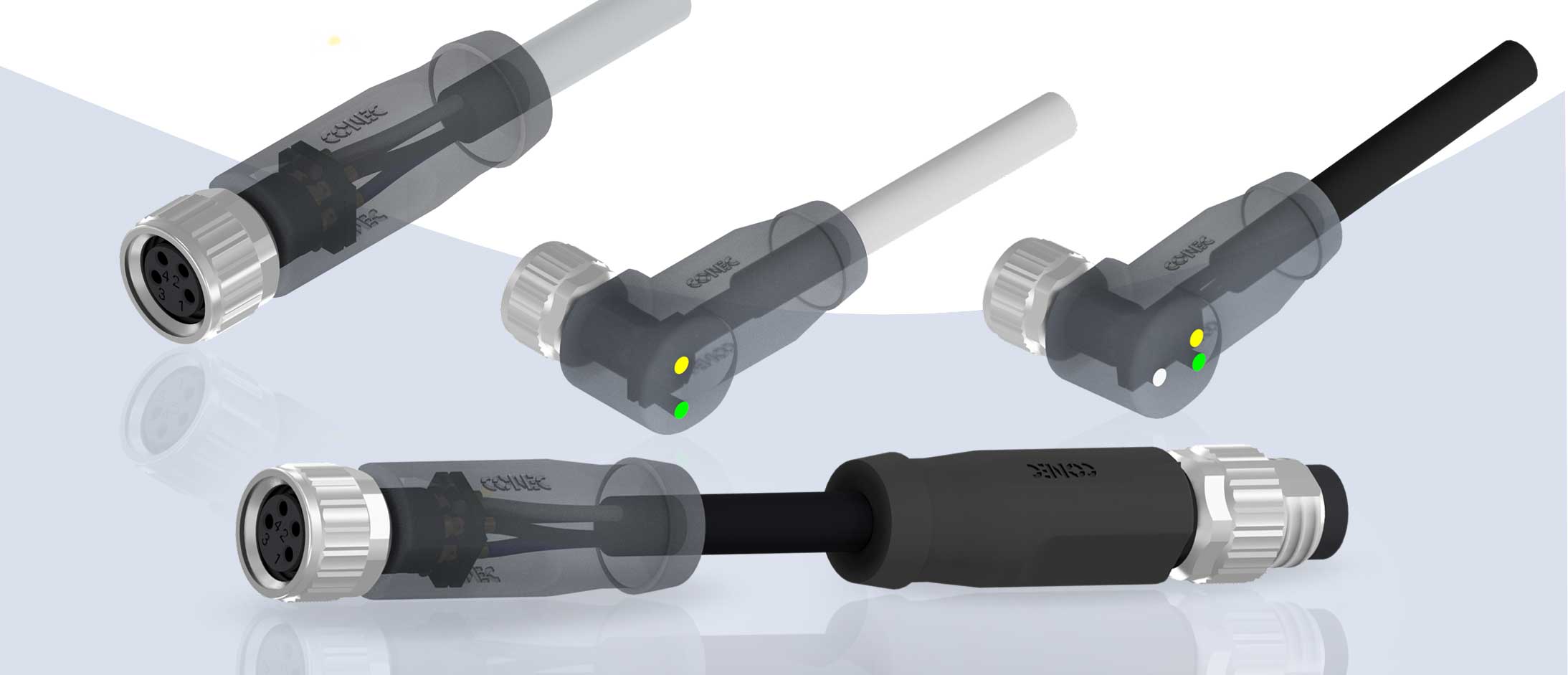

To optimally adapt to structural conditions, the connectors are available in both straight and angled
designs. The overmolding provides IP67 protection, ensuring reliable operation even in harsh industrial
environments.
You can choose between a robust PVC cable or a halogen-free TPU cable. The connectors are available in
standardized cable lengths – custom configurations are available upon request.
Added Value Across Industries
CONEC’s M8x1 connectors with integrated LED status indicators offer real added value in numerous industries.
In intralogistics and conveyor systems, they enable reliable connection of light barriers, proximity
sensors, and drives on conveyor belts. At the same time, they support the monitoring and control of material
flows in automated warehouse systems – with clear LED feedback on signal status directly at the connection.
Real-time status monitoring
In packaging and filling systems, the connectors ensure efficiency: limit switches, level sensors, and
temperature probes can be securely connected, while the integrated LED display allows visual monitoring of
switching signals during operation – without the need for additional diagnostic devices.
In test and inspection systems, the connectors offer flexible connections with immediately visible signal
continuity – ideal for prototyping, laboratory environments, or temporary installations where quick checks
and adjustments are essential.
Conclusion: M8x1 connectors with LED indicators are more than just connection elements – they are smart
diagnostic tools for demanding applications.
