Connectors for Single Pair Ethernet save space, weight and time during assembly
Single Pair Ethernet offers the possibility of efficient data transmission from the sensor to the cloud. The
increasing need and ability of machines, devices, and also components in the production environment to
communicate poses challenges to the previous Ethernet. Especially for systems with cable distances of more
than
100 m, there were only few possibilities in terms of Ethernet.
Future-oriented technology for communication
Due to the large range and the uniform communication level, Single Pair Ethernet is therefore generally
considered the key in the transition to IIoT and Industry 4.0.
Transmission takes place via only two and no longer via four or eight contacts. Due to this fact, it is
possible
to build smaller connectors than the previous RJ45. The same applies to the cables. Instead of two or four
pairs, only one pair is needed. This saves space, raw materials, weight and money.
To additionally ensure the supply of power, SPE offers the possibility of using Power over Data Line (PoDL)
similar to Power over Ethernet (PoE). However, the limit here is approx. 60 W. Only the two existing
stranded
wires are necessary for use.
For components that require more energy, hybrid connectors have been entered as a draft standard, for
example in
63171-7 for M12. Yamaichi also offers first prototypes for this if required.
If a customer-specific design is preferred instead of a standard-compliant design, the customer can of
course
also be supported in the realisation.
Yamaichi's connectors offer the possibility to be part of SPE from the beginning and to benefit from the
advantages. There is a free choice from the standardised systems.
▪ ds
The advantages at a glance
- Future-oriented technology in preparation for Industry 4.0

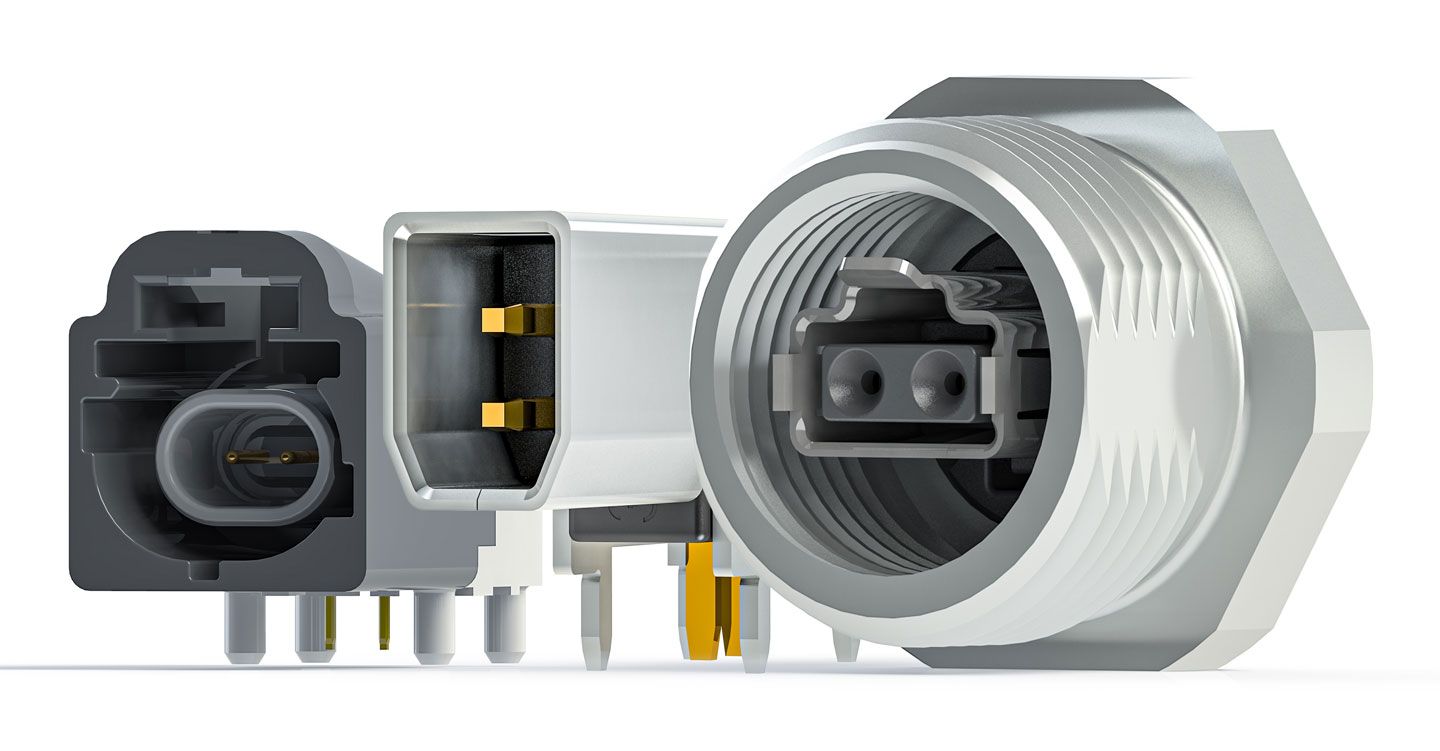

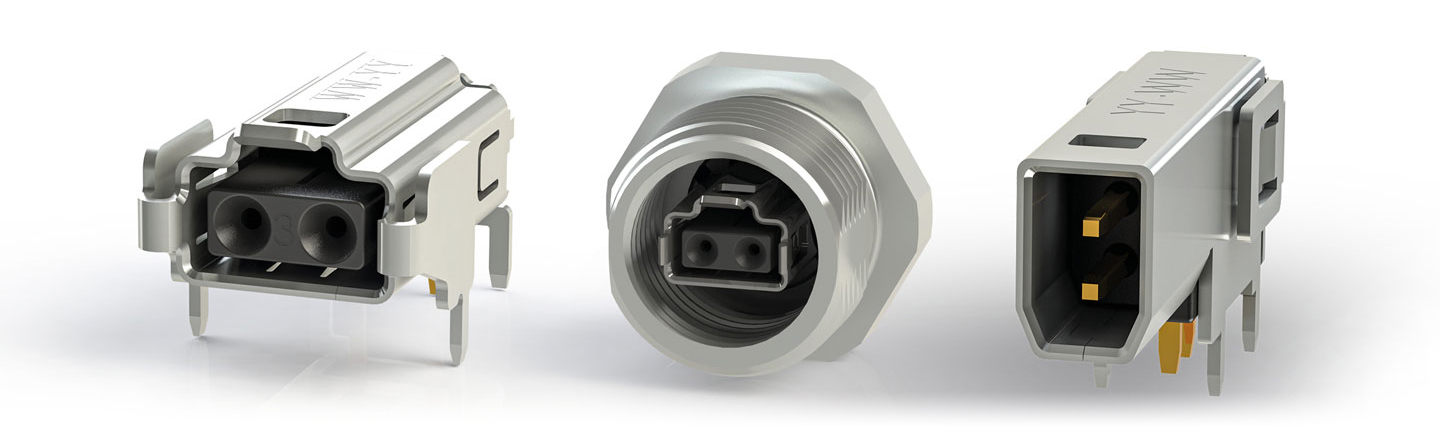

- All mating faces available
(IEC 63171-2 / -5 / -6 / -7)
- Space and weight saving
- Customised solutions possible, like e. g. SPE in the circular metal Push-Pull connector of Yamaichi’s Y‑Circ P series
- Y-HDE also available (automotive SPE)
