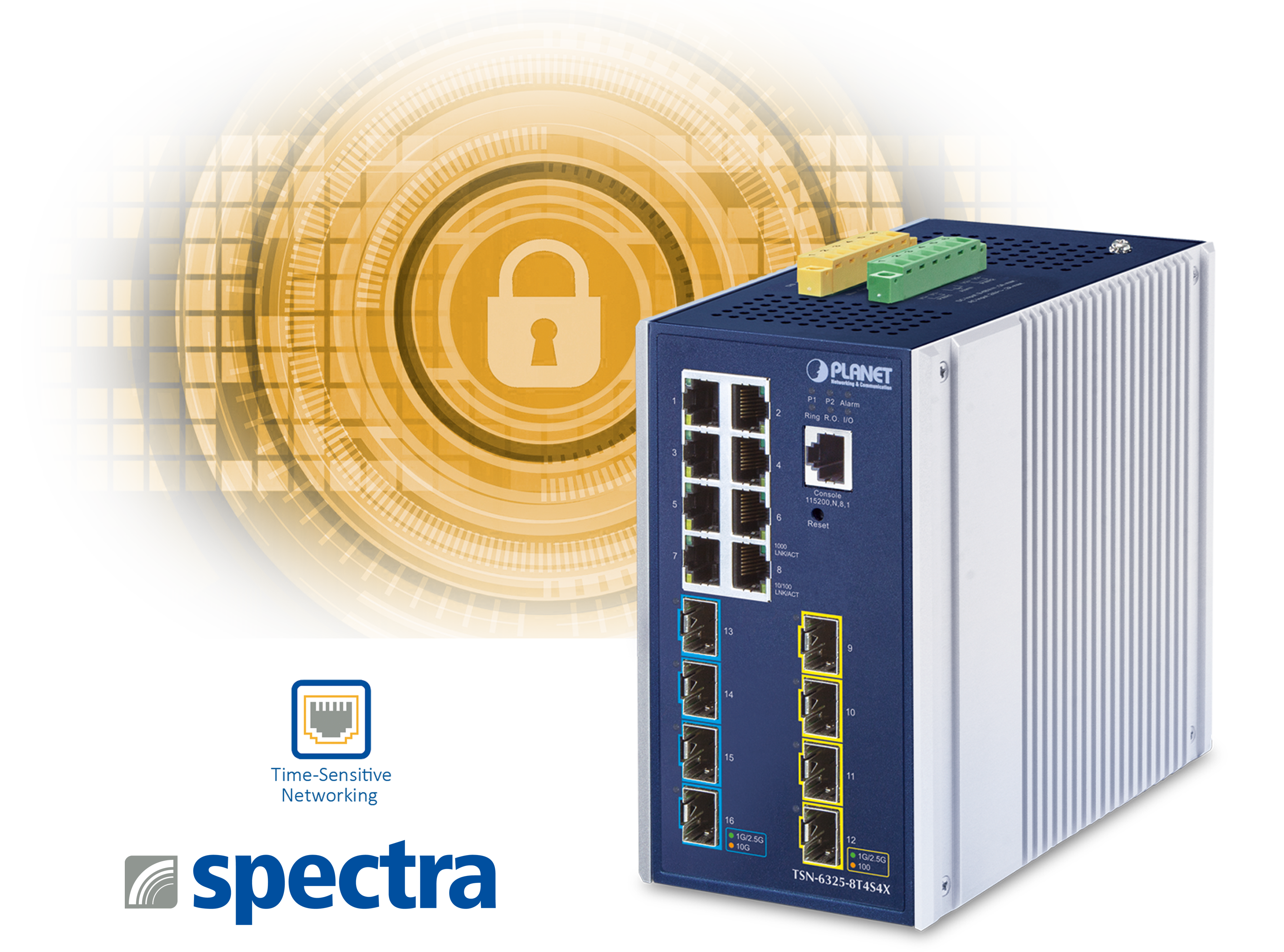

With the TSN-6325-8T4S4X, Spectra presents a high-performance Ethernet switch that offers special advantages
for industrial applications thanks to its Time-Sensitive Networking (TSN) functionality, especially when it
comes to meeting the requirements of industrial real-time applications.
The most important advantages of TSN switches compared to conventional
switches
Deterministic communication: TSN switches provide deterministic communication
where the transmission time of data packets is predictable. This can better support real-time applications
that require precise coordination of activities.
Time synchronization: TSN switches support precise time synchronization of
network components, which is important to achieve high accuracy in coordinating activities. This enables
better realization of real-time applications such as Industry 4.0 or autonomous vehicles.
Quality of Service (QoS): TSN switches offer improved Quality of Service
(QoS) compared to traditional switches. This prioritizes real-time applications and controls network traffic
according to application requirements.
Further technical features
Other technical features such as redundant ring function, port mirroring for monitoring network traffic and
VLAN support for network segmentation guarantee reliable data transmission.

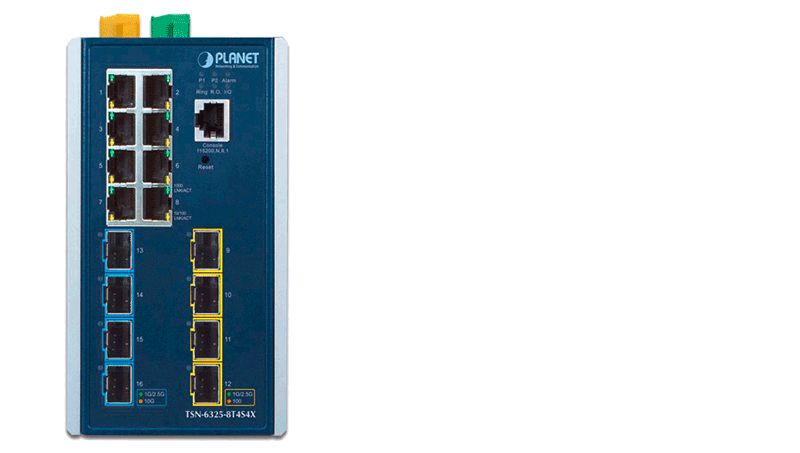

The TSN-6325-8T4S4X manages a total of 16 Ethernet ports, including eight fiber ports with four 1/2.5
Gigabit slots and four 10 Gigabit slots each, and also eight Gigabit LAN ports. Thus, this switch offers
high bandwidth and fast transfer rates.
The robust metal housing and resistance to vibration and shock, as well as a wide operating temperature of
-40 °C to 75 °C recommend it for use in harsh industrial environments.
