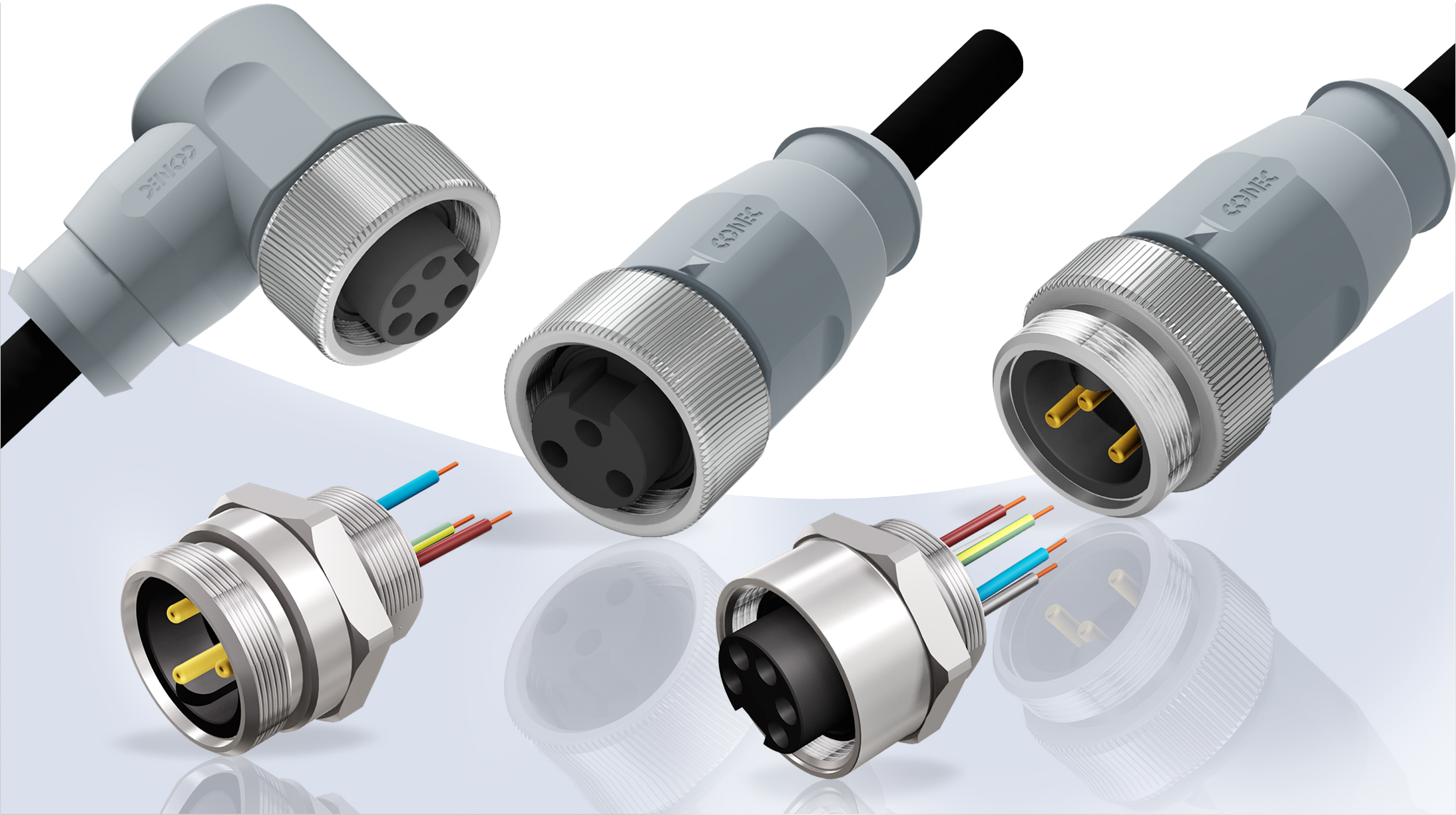

7/8" connectors with wire cross section of 2.5 mm²
For many years, circular 7/8" connectors have been available for the requirements of the American market. In
addition to overmoulded cable connectors, the CONEC product portfolio also includes
field-attachable-connectors as well as flange connectors with strands or for direct PCB assembly.
In order to meet the increased demands for higher power transmission, the product portfolio of the 7/8"
connectors has been developed with new variants of connectors overmoulded and sockets with wire connection.
These versions have a wire cross section of 2.5 mm² instead of 1.5 mm², which gives a current load
capacity of 16 A at an ambient temperature of 40 °C.
The overmoulded connectors are available in axial and angled design with 2+PE as well as 4+PE and PVC as well as TPU cables. The flange connectors with strands are available in axial form for front panel mounting (male & female) and back panel mounting (male), whereby other flange variants can also be offered on request. The overmoulded connectors have the degree of protection IP68, the sockets offer the degree of protection IP67. ▪ ds
