M12 Connectors with bayonet quick locking
M12 Connectors with bayonet quick locking

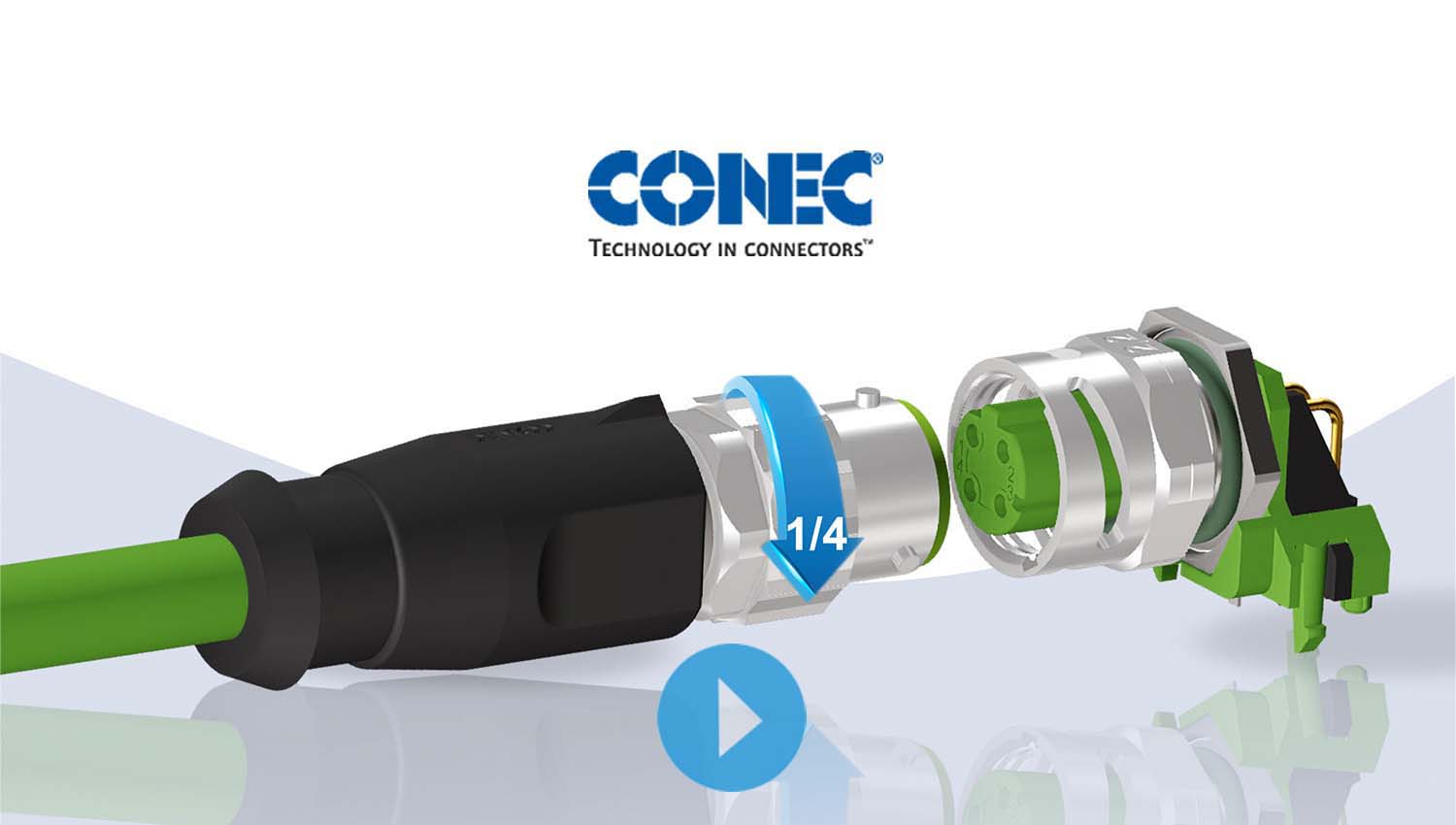

The CONEC series of connectors with bayonet quick locking system allows safe and quick locking even in areas
that are difficult to reach and not visible. With the three-point bayonet locking, it is possible to lock the
connection by hand with a 90° turn. You get a direct tactile and acoustic feedback as soon as the connector is
locked.
The connectors are designed according to the draft standard IEC CD 61076-2-011/Ed1. In order to meet the
mechanical requirements with regard to tightness to dust and liquid media in industrial environments, no
additional tools are required for the new M12 bayonet version by CONEC. In the locked state, the requirements of
protection degrees IP65, IP67 and IP69K are met. In addition, the new series is shock and vibration resistant
according to the railway requirements IEC 61373:2010, class 1B. The CONEC bayonet locking variant thus offers
simplified handling and at the same time secure transmission of signals and data to the user.
The coupling sockets with solder pin termination are also equipped with an internal thread in the mating area, thus ensuring 100 % backwards compatibility with standard M12 connectors. This means that new systems can be equipped with the M12 bayonet on the device side without any concerns.
The M12 bayonet series is presented as standard in the codings A and D. The PCB sockets are available in axial and angled form for back panel mounting and a panel thickness of 2.2 mm. ▪ ds
