Plug and play installation makes incorporating into the drive system easy. The controller automatically detects
the sensor and its basic settings. The sensor also offers great flexibility, since leaving and reengaging with

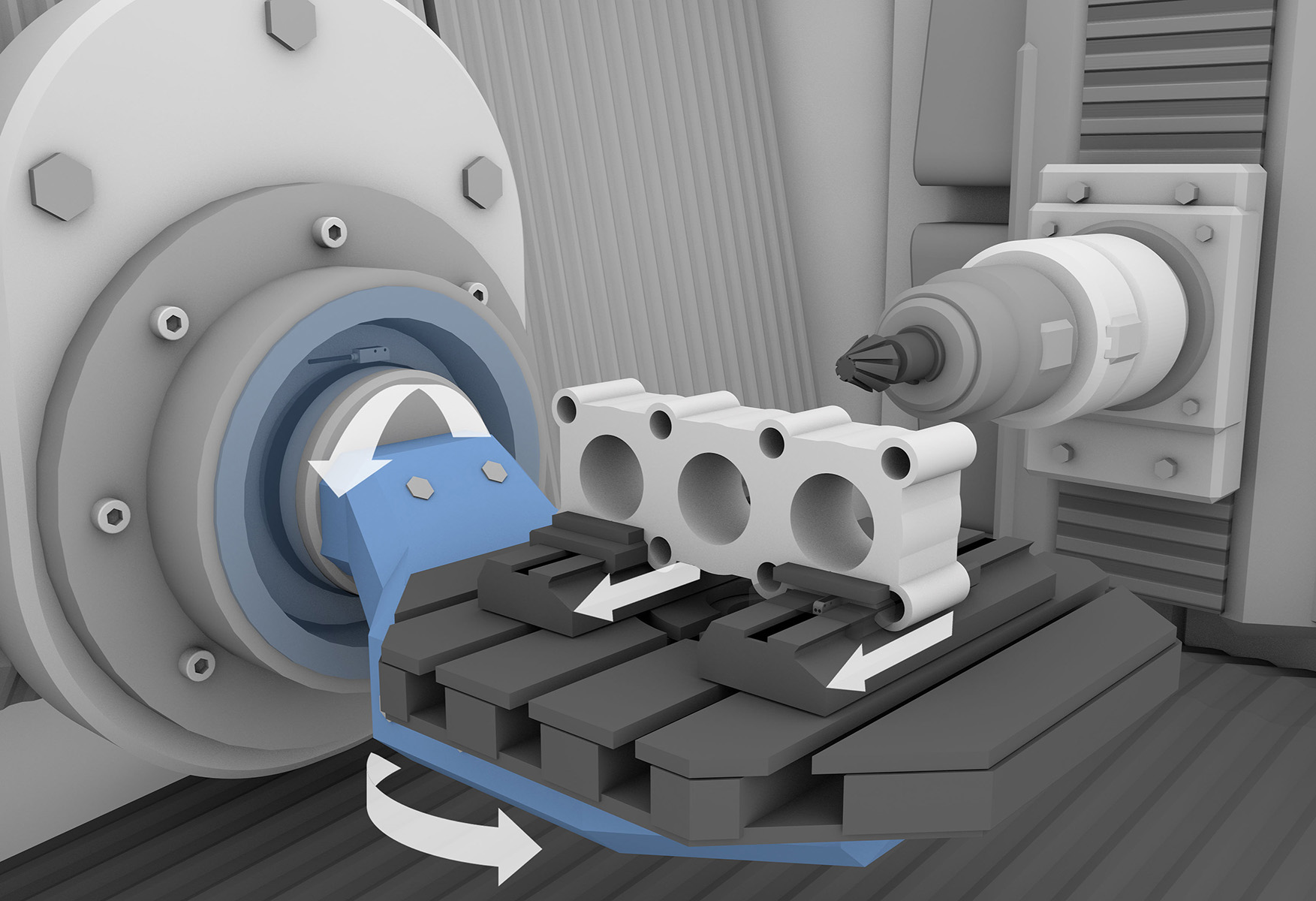

the tape is permissible. This opens up simple and economical solutions for demanding applications in the field
of automation as well as machine tool building, especially specialty machines.
Non-contact and wear-free measuring principle
Since the system works magnetically, it is also extremely insensitive to temperature change, dirt (such as from

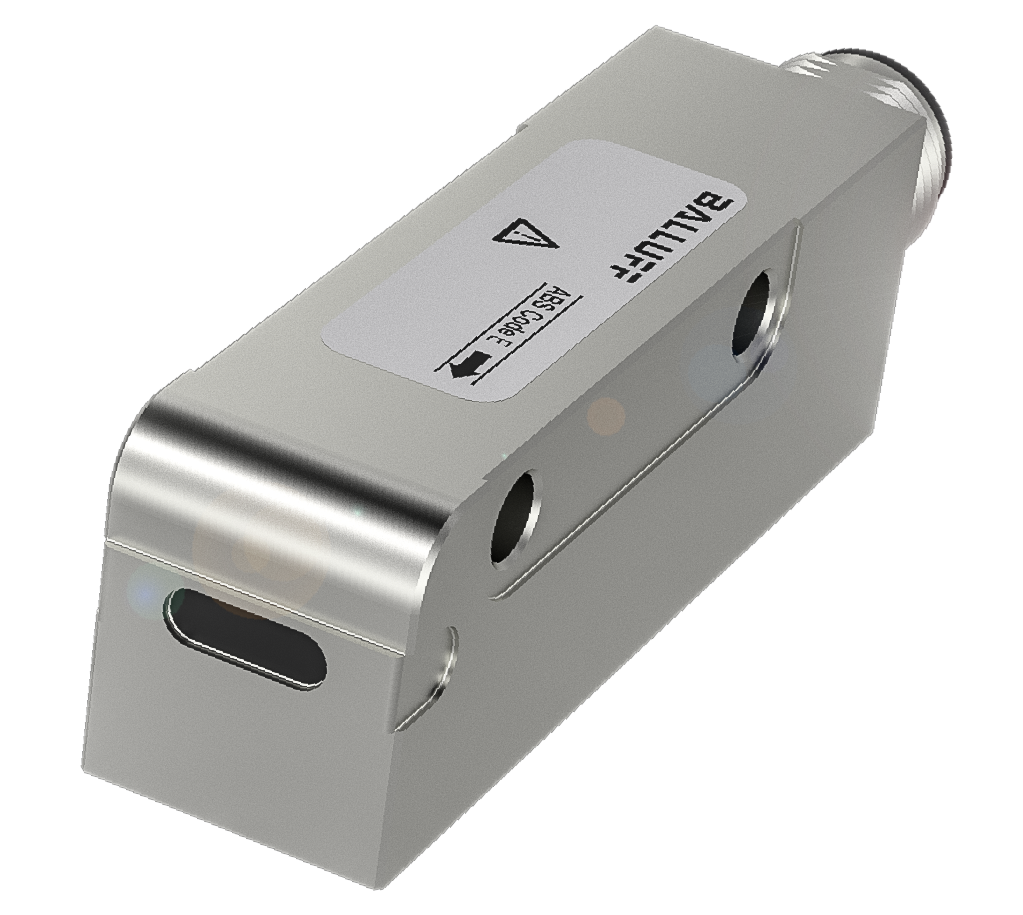

dust and oil), or wear. Thanks to its compact form factor the measuring system is also easy to integrate into
existing applications, even in tight mounting conditions. The generous read distance of 1.3 mm makes
installation easier.
In practical operation continuous plausibility checking ensures high reliability, since the system consistently
check the measurement quality.
Automatic condition monitoring checks the signal quality and, using the
controller, is a convenient way to evaluate the function reserve. Status LEDs and diagnostic functions ensure
reliable operation and more efficient maintenance.
The linear measuring system is suitable for both long measuring lengths up to 48 meters as well as for
applications which require high precision. With an accuracy of up to ± 12 µm and a resolution of 1 µm the
measuring system meets these requirements. The system is also simple to retrofit.
