Data processing even faster and more secure

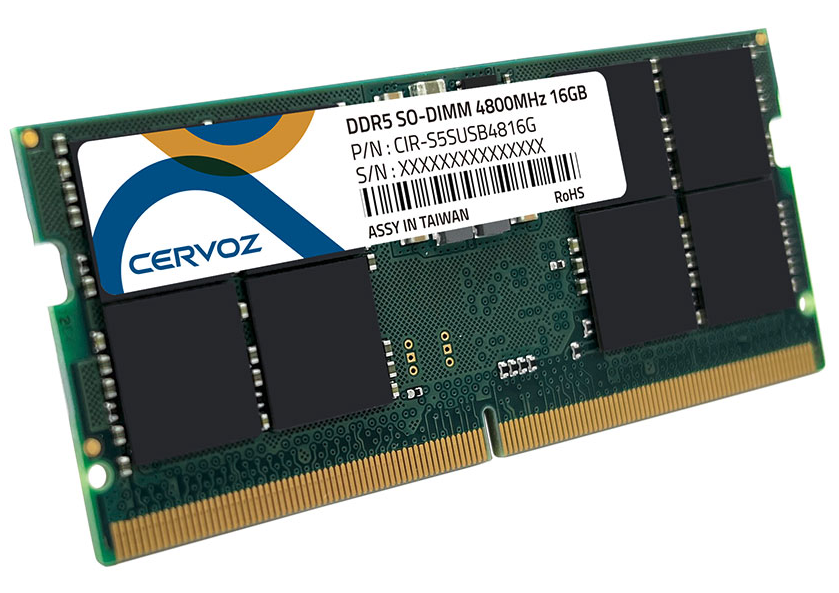

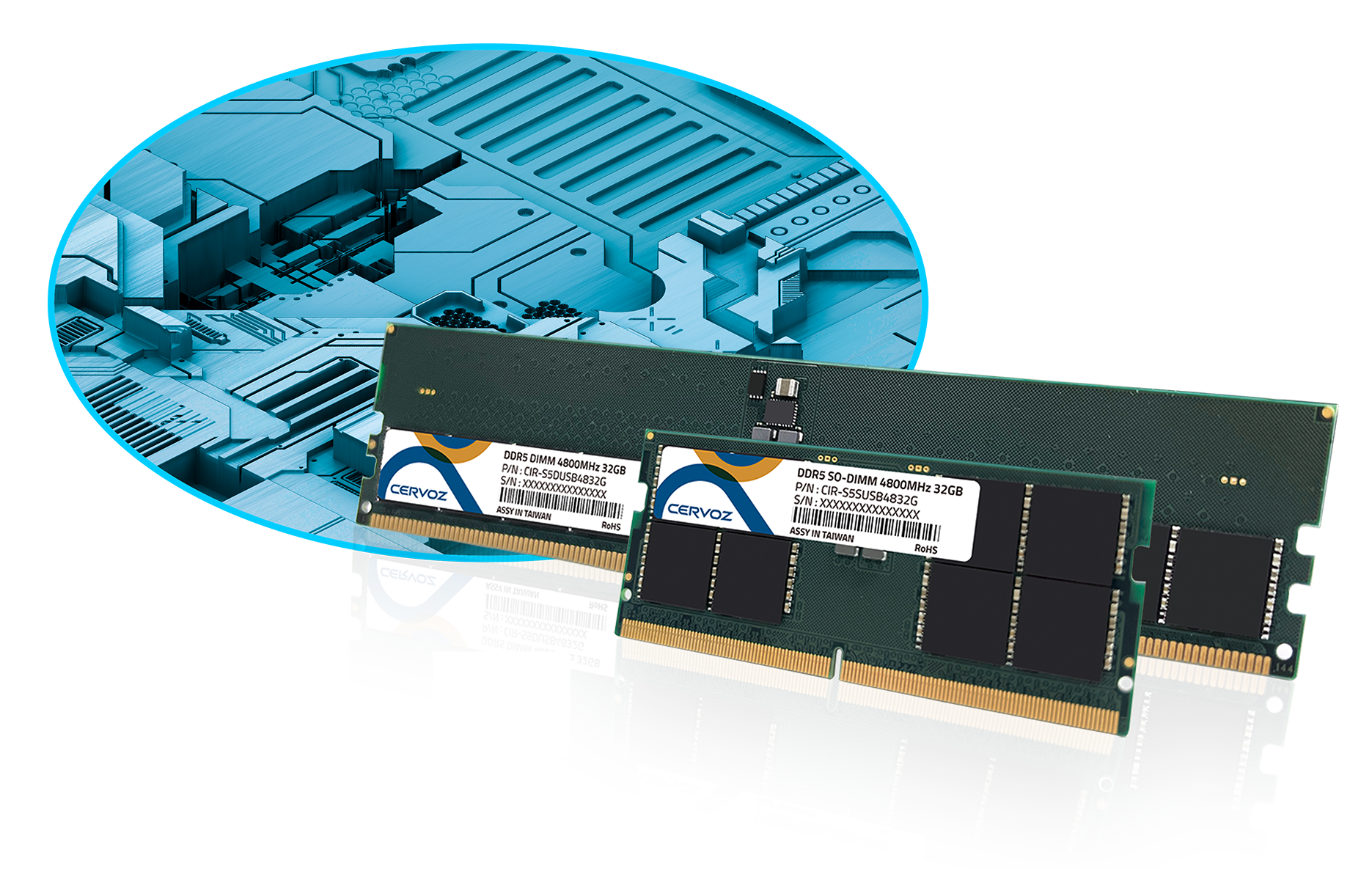

For these applications, the new DDR5 DRAM modules from Cervoz, which have been designed specifically for industrial use, are suitable as working memory.
There are 6 models with 8, 16 or 32 GB each in DIMM or SO-DIMM design. Currently the DDR5 memory modules work with a speed of 4800 MT/s. Compared to DDR4 memory modules, which reach a maximum speed of 3200 MT/s, this means an increase in bandwidth of 50 per cent.
In the future, performance increases to 6400 MT/s are even planned for DDR5 memory modules.

High-performance
storage architecture

The new DIMM channel architecture offers two independent 40-bit subchannels (32 data bits with eight ECC bits) per memory module (DIMM). With this new architecture, higher memory access efficiency and lowered latency times for data accesses to the memory controller are achieved.

Integrated error correction

The integrated ECC (Error Correction Code) function ensures data security. It keeps the DDR5 memory modules stable by self-correcting errors, which effectively improves the reliability of the transfer.
ECC-capable processors for servers and workstations have the coding to correct single or multiple bit errors. The DDR5 memory modules also feature low voltage consumption and an operating temperature range of 0 °C to 85 °C.

DDR5 PC4800
