Due to the large transmission range and the consistent communication level, Single Pair Ethernet (SPE) is considered the key in the transition to IIoT and Industry 4.0.

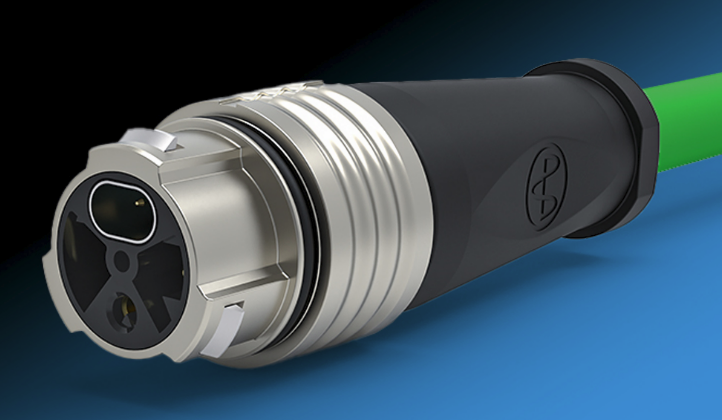

Yamaichi Electronics has developed the Y-SPE series, which includes IP20 and M12 connectors with IP67 protection in accordance with IEC standards 63171-2|5|6|7. The M12-SPE connectors from Yamaichi are also designed to use the Push-Pull locking mechanism according to the IEC 61076-2-012.
The advantage is the use of only two, instead of four or eight contacts as before. This reduces costs, saves space, weight, and time during assembly.
Due to the reduced number of strands, potential errors during assembly are also reduced. To additionally ensure the supply of power, SPE offers the possibility of using Power over Data Line (PoDL) with approximately 50 W. For components that require more power, hybrid connectors are provided, such as those specified in draft standard 63171-7.
Yamaichi also offers initial prototypes for this if required. In addition, customized designs are also possible, as well as connectors specifically for the automotive sector. ▪ ds
