Strong performance with high energy efficiency

19-inch Industrial workstation for high-end applications

Modern work processes in industry and research such as 3D design, computer simulation or image processing demand a lot of graphics and computing power. More and more important is the question of energy efficiency, not only because of heat generation, but also because of energy consumption, especially in today's environment.
The new 19-inch Spectra PowerRack 6000/S10 SW680 High End System 2 industrial workstation offers powerful computing and graphics performance with high energy efficiency.
These advantages are achieved by the 12th generation Intel® Core™ i7-12700K processor (Alder Lake) used. It is not only significantly more powerful than previous models, but by using both power and efficiency cores, it also ensures that the CPU always works as fast and energy-efficiently as possible in different requirement scenarios. With a 1 TB M.2 NVMe PCIe(x4) 4.0 SSD as the system drive and two 2 TB M.2 NVMe PCIe(x4) 3.0 SSDs as data drives (RAID 1), the computing processes are optimally supported.
The professional Nvidia RTX A4500 graphics card used offers more than enough memory for complex graphics-intensive applications with 20 GB.
Industrial PC

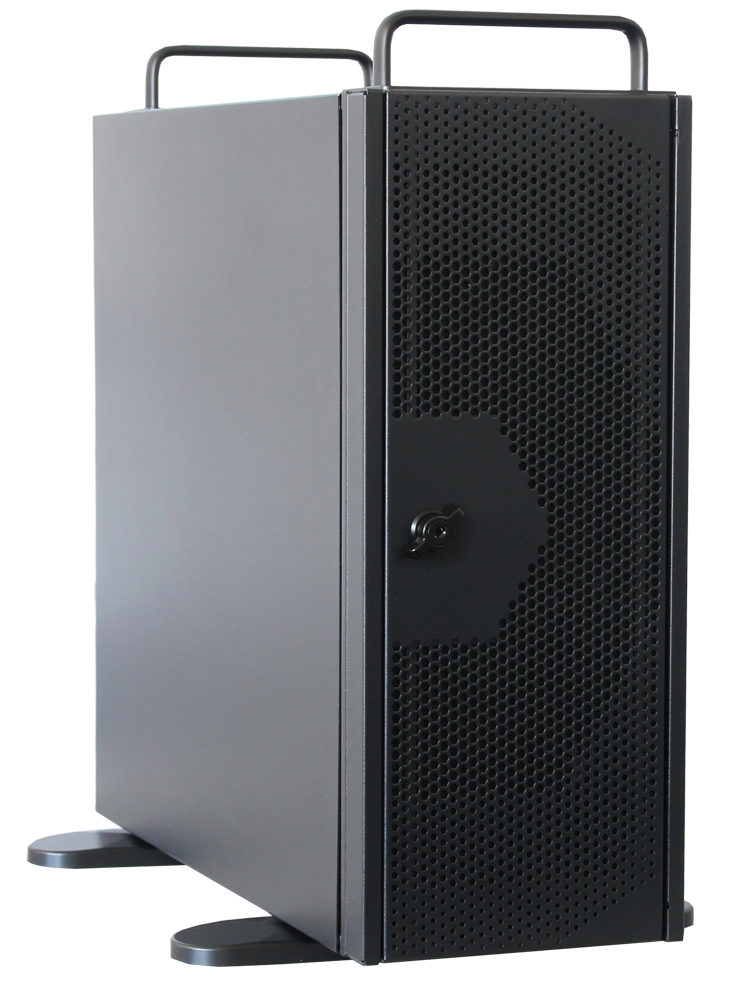

The workstation can also be used upright as a tower
The Nvidia RTX A4500 professional graphics card used offers more than enough memory for complex graphics-intensive applications with 20 GB. However, with a consumption of only 200 W, it remains significantly below the requirements of many other high-end graphics cards, such as the RTX 3000 series, and allows you to connect four displays in parallel via DP1.4a port.
The built-in 80+ Titanium-class power supply with its outstanding efficiency of greater than 94 per cent ensures extremely low thermal dissipation. Four PCIe 5.0/3.0 and one PCI slot can be used for additional expansions and the 2.5GLAN port is also worth mentioning besides the GLAN.

Configuring to customer’s needs

If you need a particularly high performance for your applications, we can equip the system for you with a water cooling and thus provide for optimal temperatures in the computer. Of course we are happy to configure a Spectra PowerRack 6000 system according to your specific requirements and deliver it tested and ready to use.

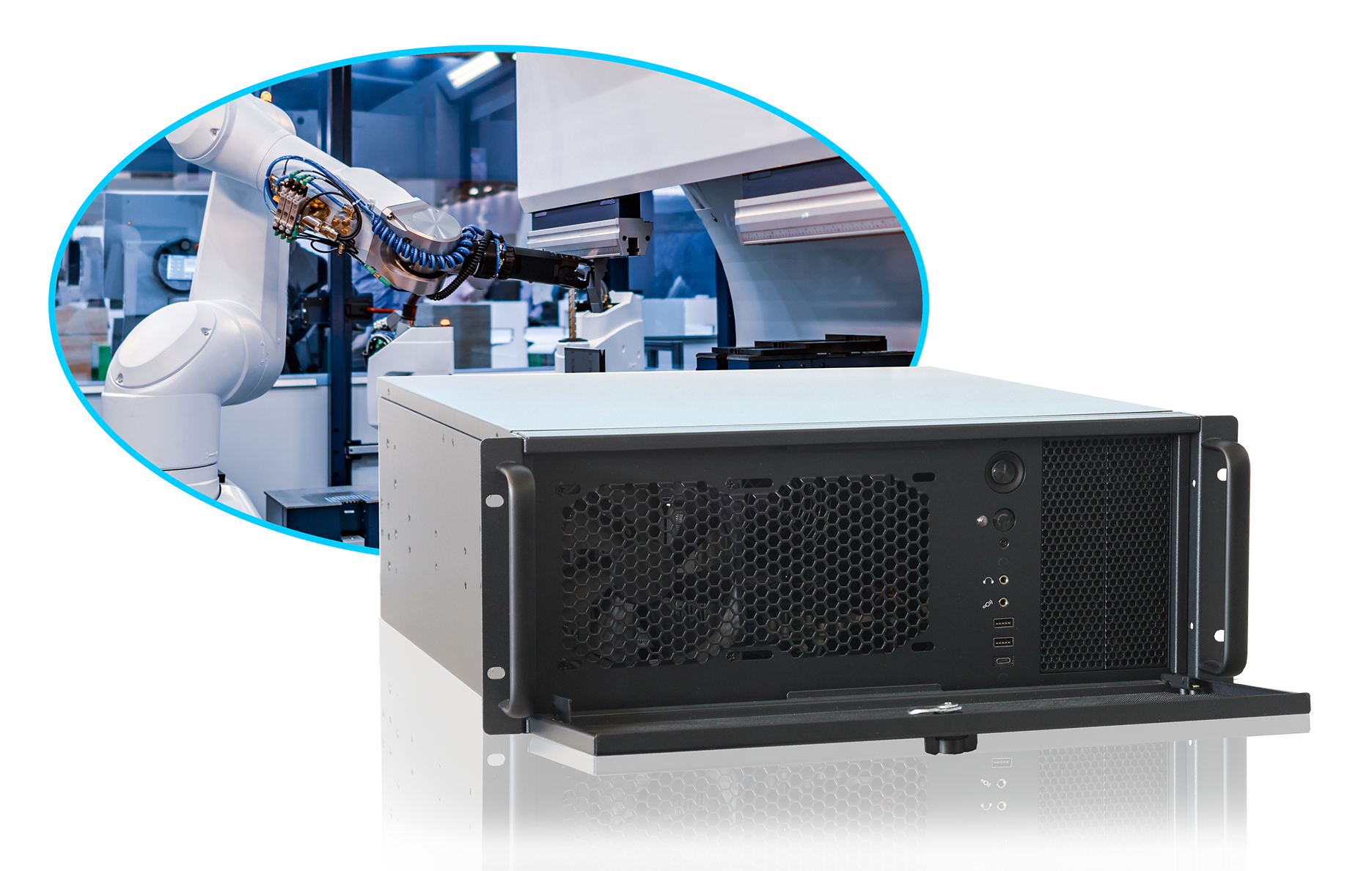

Spectra PowerRack 6000

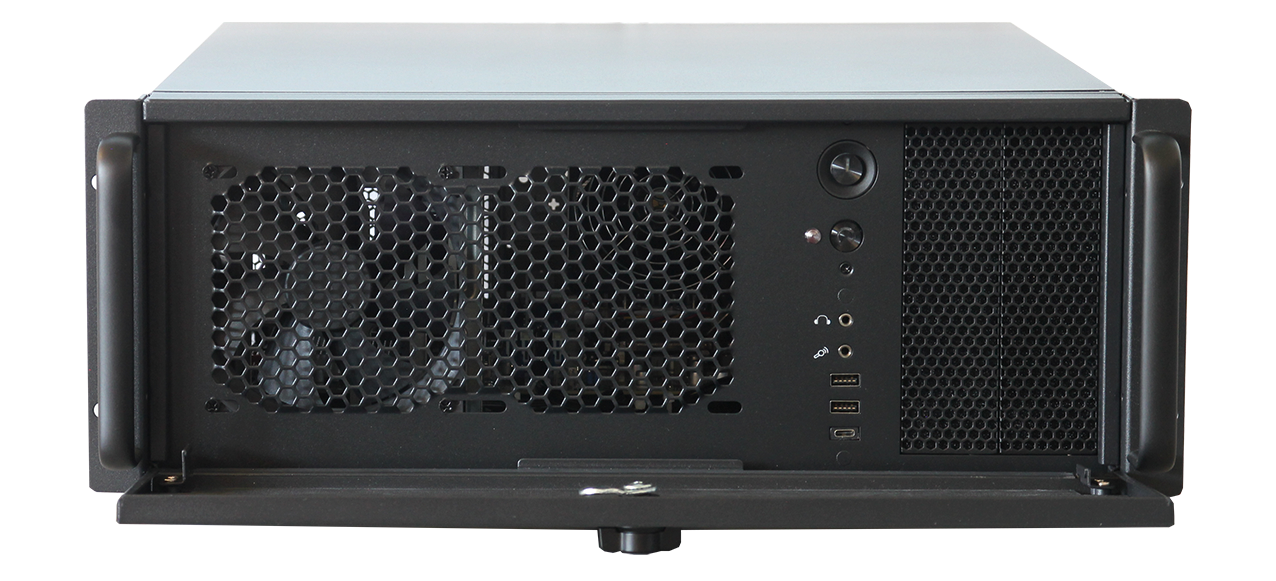

Front view

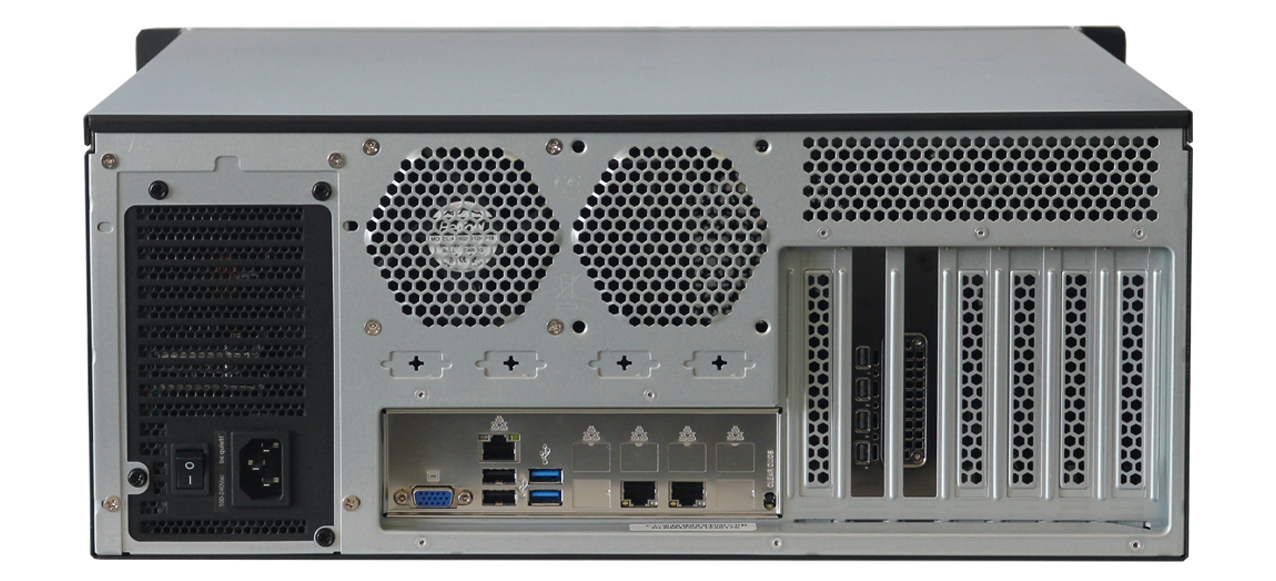

Rear view
