Hundred variants with modular principle

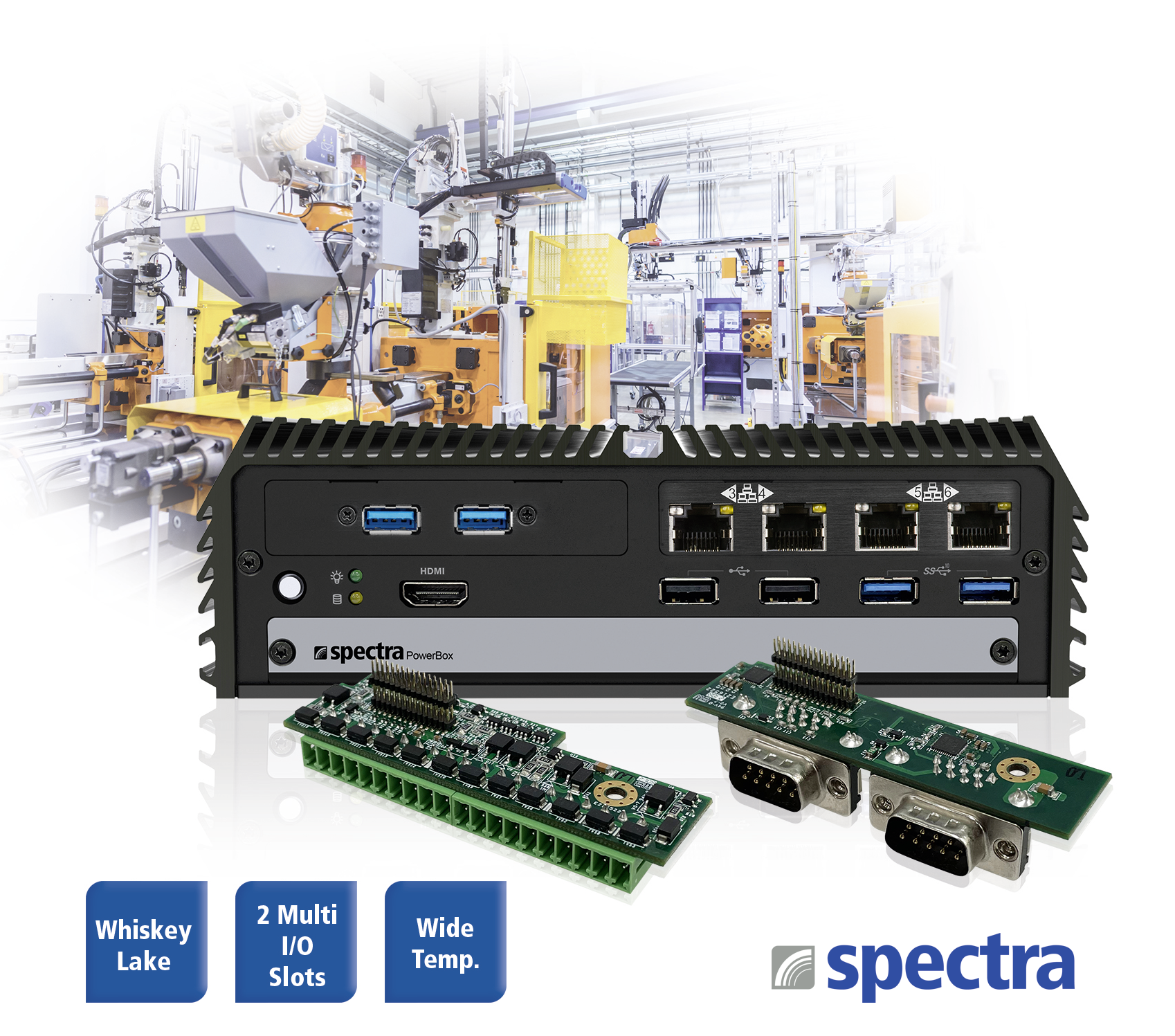

Spectra PowerBox 310: Modular Mini-PC system for industry

The Spectra PowerBox 310 is easily adaptable to countless application scenarios. This enables a modular principle with more than 100 variants, which can be obtained simply by combining the numerous additional modules offered by Spectra.
Industrial PC
For example, two additional 10GLAN or four LAN or PoE ports, also with M12 or M12 X screw connection can be realized by simply plugging wireless multi I/O modules into the prepared socket. The connections are neatly led out with the corresponding brackets. Two mPCIe sockets are available for extensions such as WiFi, GSM, COM, USB, LAN and Firewire as well as different fieldbuses. Spectra offers suitable mPCIe mounting kits, consisting of an mPCIe module as well as a suitable cable and bracket. Even the power ignition function, which is necessary for mobile applications, is made possible with the help of a special function module.

Robust against shock, vibration and extreme temperatures

The efficient computing power is provided by an Intel® Core™ i5-8365UE processor, whose low-voltage characteristics allow fanless operation.
Additional models with Intel® Core™ i7-8665UE and i3-8145UE processors will be offered later this year. With the two 2.5-inch SATA sockets, even a RAID 0/1 solution can be implemented.

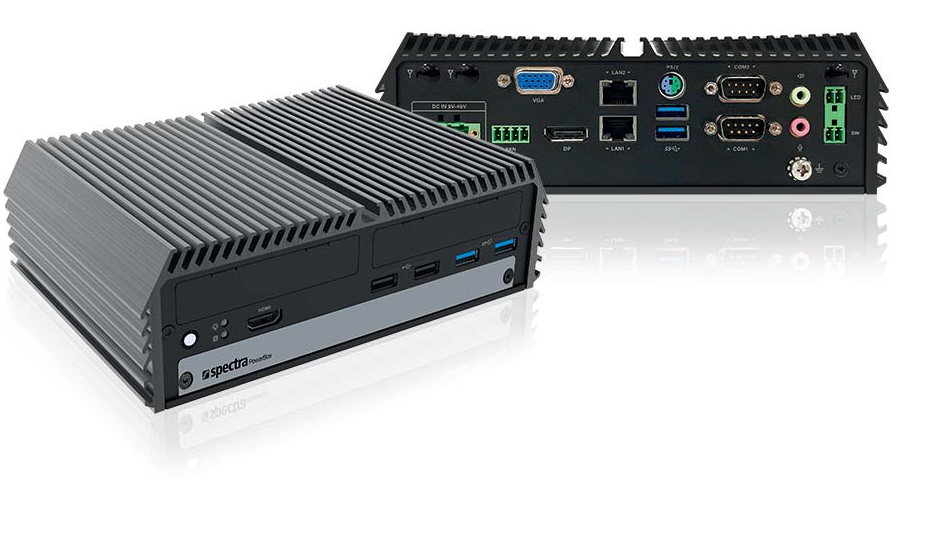

The Spectra PowerBox 310 is a compact lightweight of only 1.75 kg and the dimensions 203 x 142 x 67 mm. The extended temperature range from -40 °C to 70 °C and the high robustness against shock and vibration allows the use in industrial environments.
The Mini PC can be individually equipped with RAM, SSD and expansions and is offered as a tested and ready-to-run complete system including the latest operating system. ds
