Expandable embedded PC with Tiger-Lake CPUs

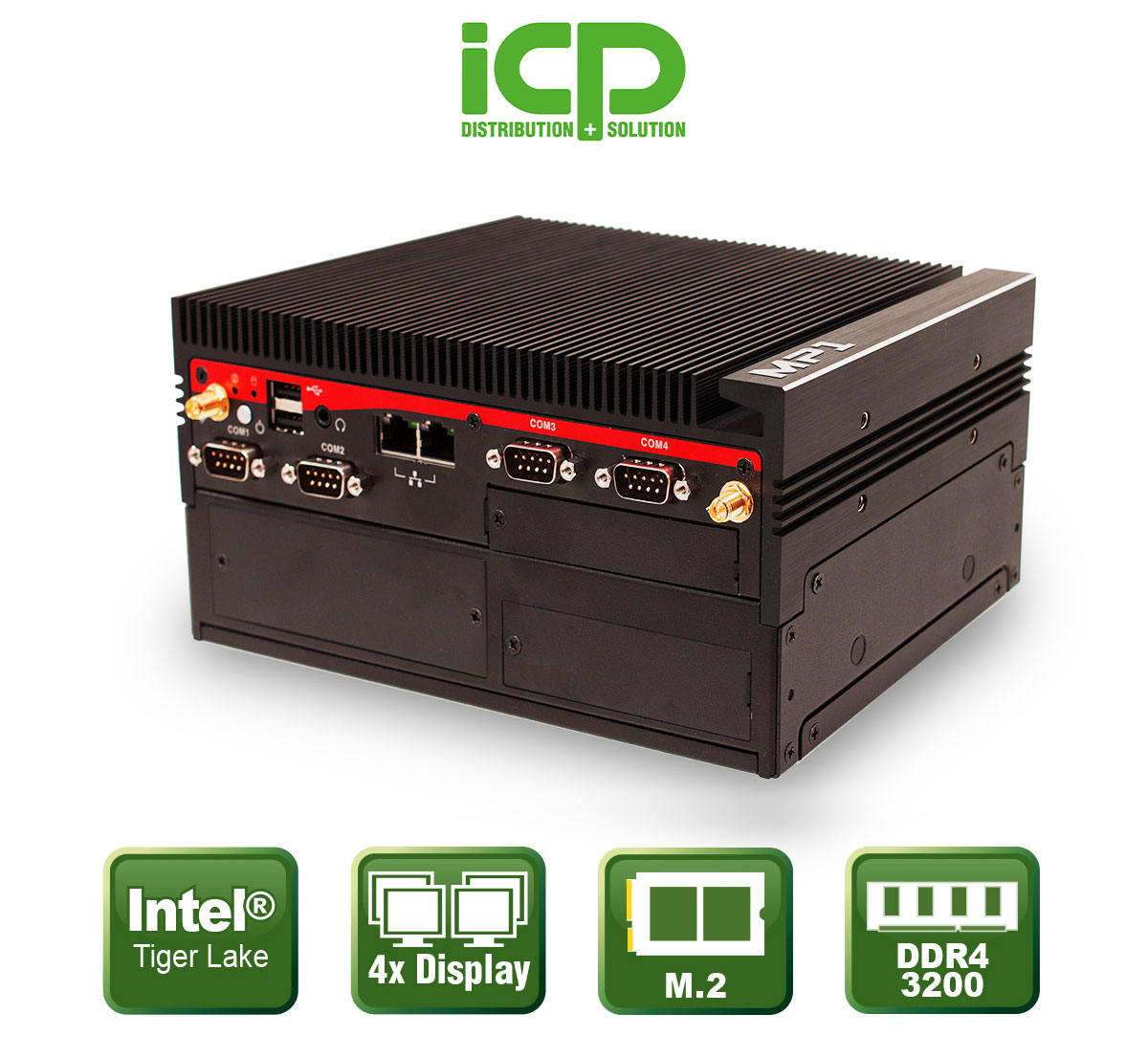

High CPU performance, fanless design and expansion slots for add-on modules are combined in the new MP1-11TGS-D embedded PC series from ICP Germany. The good performance comes from the 11th generation Intel® Core™ I processors, also known as Tiger Lake UP3.
Industrial PC
Two entry-level versions are available with dual-core processors, an Intel® Celeron® 6305 with 4 MB cache and 1.8 GHz clock speed and an Intel® Core™ i3-1115G4E with 6 MB cache and 2.2 GHz base clock as well as 3.9 GHz turbo clock.
For demanding computing tasks, a version with Intel® Core™ i5-1145G7E is available, a quad-core processor with 8 MB cache and 1.5 GHz base clock as well as 4.1 GHz turbo clock.
High-end computing applications run best on the Intel® Core™ i7-1185G7E with four processor cores, 12 MB cache and a base clock of 1.8 GHz as well as a turbo clock of 4.4 GHz.

Fanless and performant

All models in the MP1-11TGS-D series can accommodate up to 32 GB of DDR4 SO-DIMM memory with a clock speed of 3200MHz and output up to four simultaneous video signals. The two entry-level variants feature Intel® UHD processor graphics, while the high-end versions use the improved Intel® Iris® Xe graphics unit. Two 2.5-inch hot swap drive bays are available for storage media. Furthermore, the MP1-11TGS-D series offers an M.2 2242/2260/2280/3042/052 slot with B key and attached USB/PEX1/SATA signal, which is suitable for the use of 5G modules, an M.2 2230 expansion slot with E key and attached PEX/USB bus and a Mini-PCI Express slot. In addition, the MP1-11TGS-D can accommodate up to two optional expansion modules.

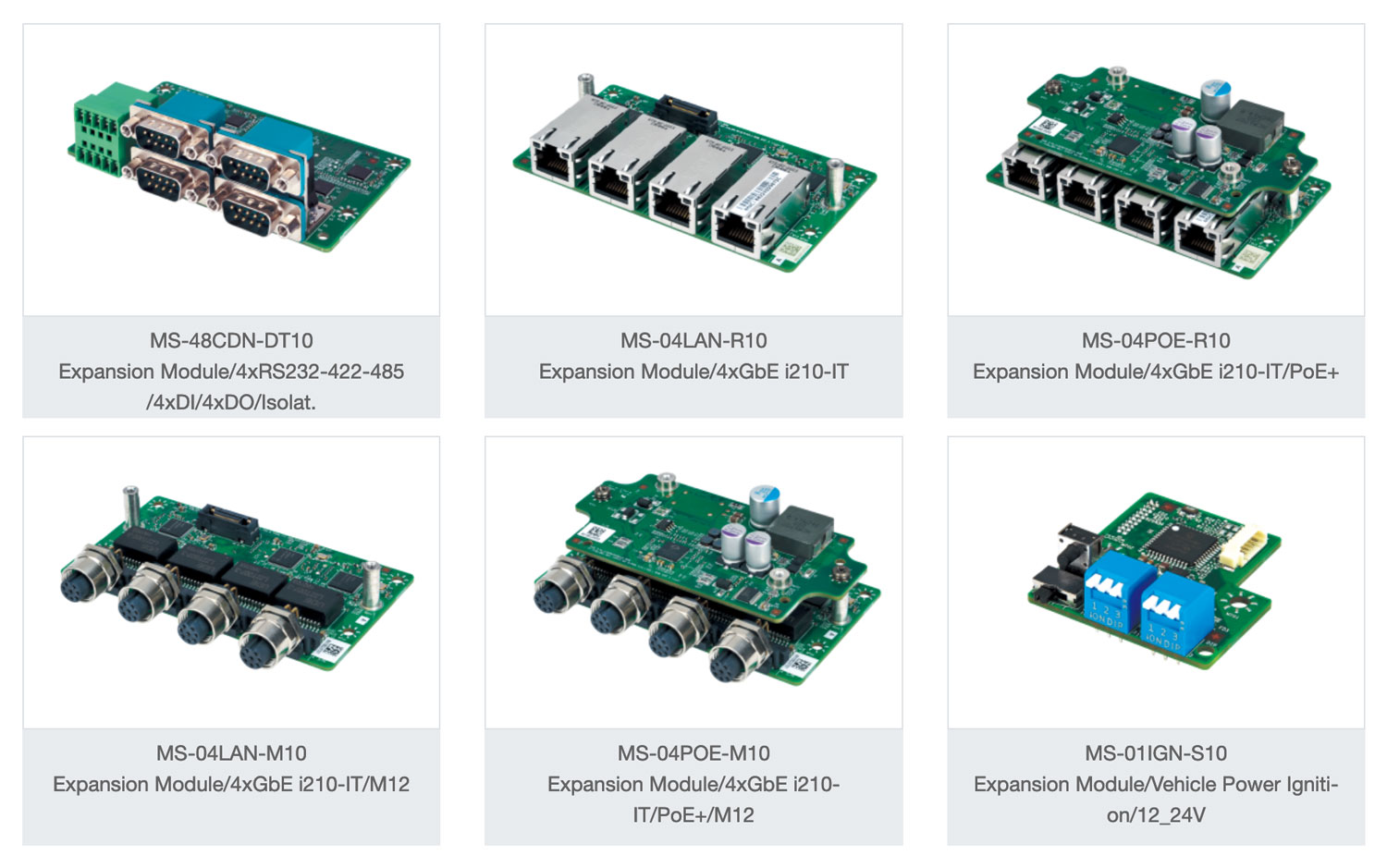

A CAN module, 4-way PoE GbE module, 4-way LAN module, RS-232/422/485 with 8 digital IOs and an Ignition module for use in vehicles are available. ds
