Innovative fanless solution
for in-vehicle applications

BRESSNER Technology GmbH, system integrator and value-added distributor, expands its portfolio with the new in-vehicle computing platform VPC-5640S from manufacturer AAEON Inc. To redefine the in-vehicle computing landscape, the fanless multi-PoE system integrates advanced features to meet the demands of modern transportation environments.
IIoT & Edge

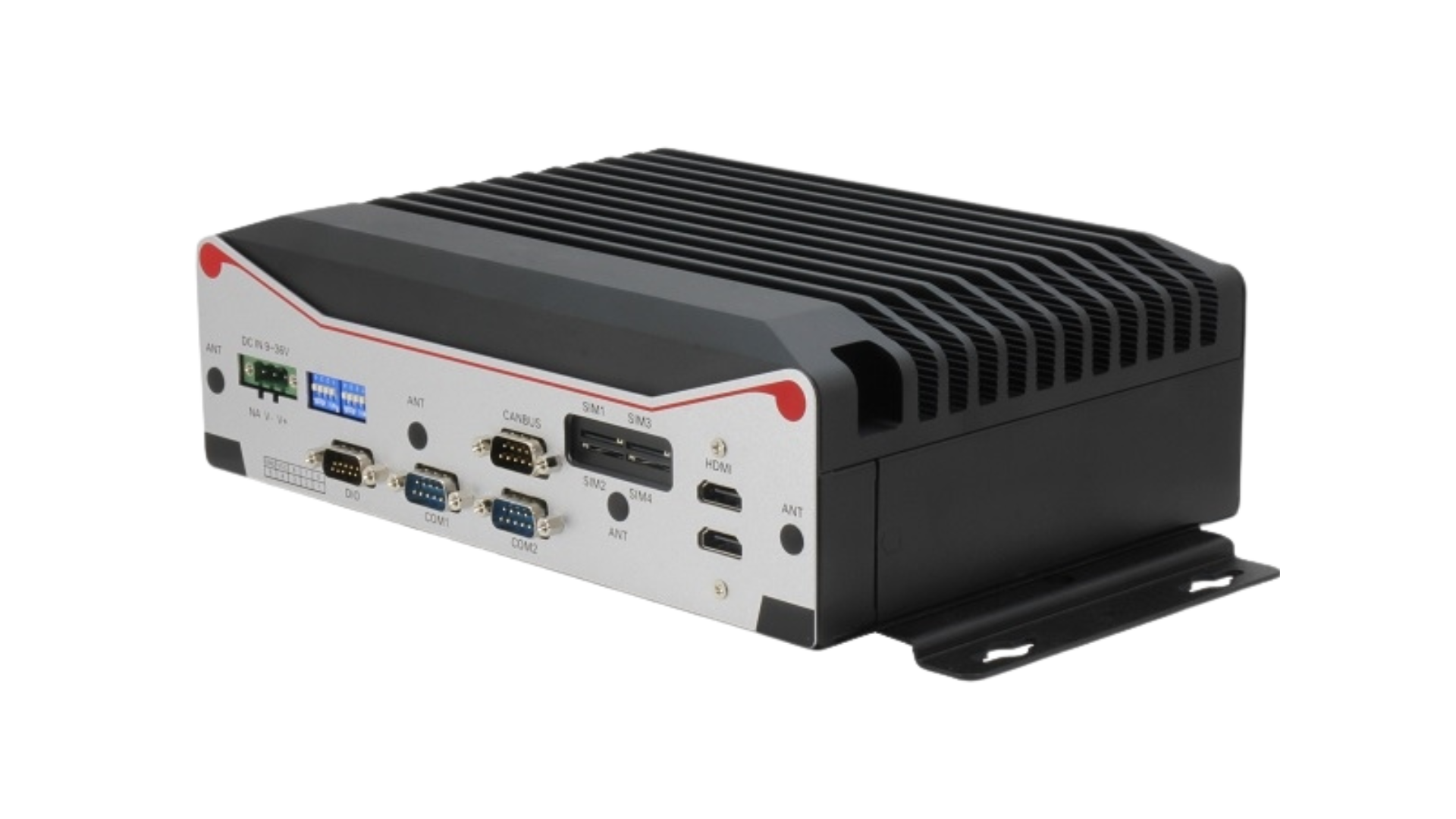

Front view

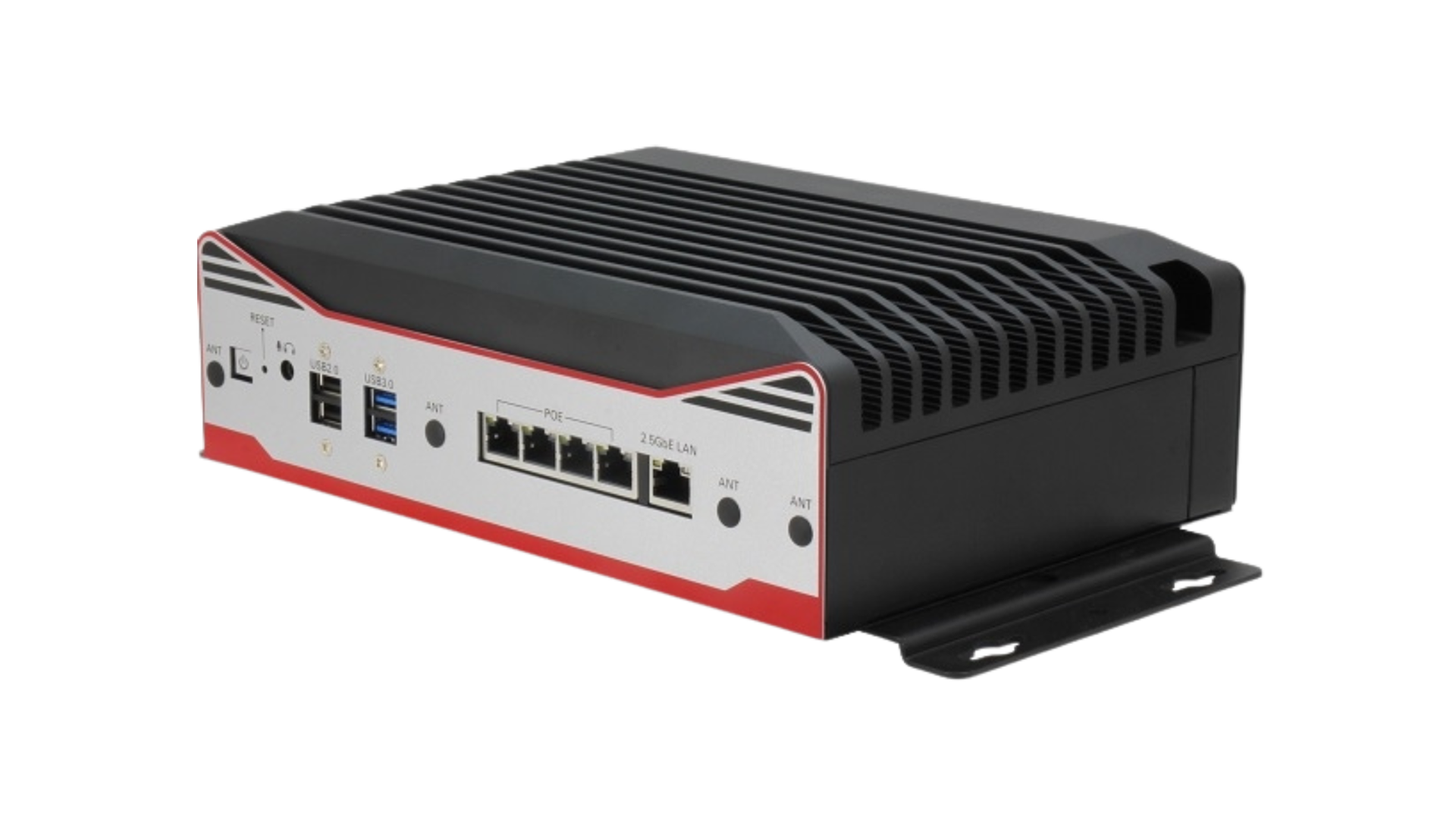

Rear view

Power meets versatility

The VPC-5640S is optimized for use in vehicles and offers comprehensive equipment for demanding applications.
With four PoE LAN ports operating at a speed of 2.5 GbE, the system provides a reliable infrastructure for integrating energy-efficient peripheral cameras. These ports are supported by an additional LAN port compatible with Intel® I226-LM, also operating at 2.5 GbE. Additionally, the VPC-5640S features DB-9 and DB-15 ports for RS-232/422/485, isolated CANBus, and an 8-bit digital I/O.
The system's performance is driven by the 12th generation Intel® Core i7 processor, ensuring impressive performance and efficiency. With dual DDR5 SODIMM slots supporting up to 64 GB of memory, the system offers seamless multitasking capabilities for various requirements.

Flexible storage options and enhanced connectivity

The VPC-5640S offers a wide range of storage options, including NVMe via its M.2 2280 M-Key and 2.5-inch HDD for SATA at 6 Gbit/. This enables the development of applications requiring data storage and processing at the edge. Through connectivity with other components of the IoT ecosystem and support for Wi-Fi via an M.2 2230 E-Key, the system expands its networking capabilities. Furthermore, the VPC-5640S features two M.2 3052 B-Keys with dual SIM slots to allow for the simultaneous installation of two 5G modules.
These features provide excellent edge-to-cloud capabilities. These comprehensive features make the VPC-5640S ideal for fleet management, particularly with integrated GPS, NEO-M9V and G-Sensor.
