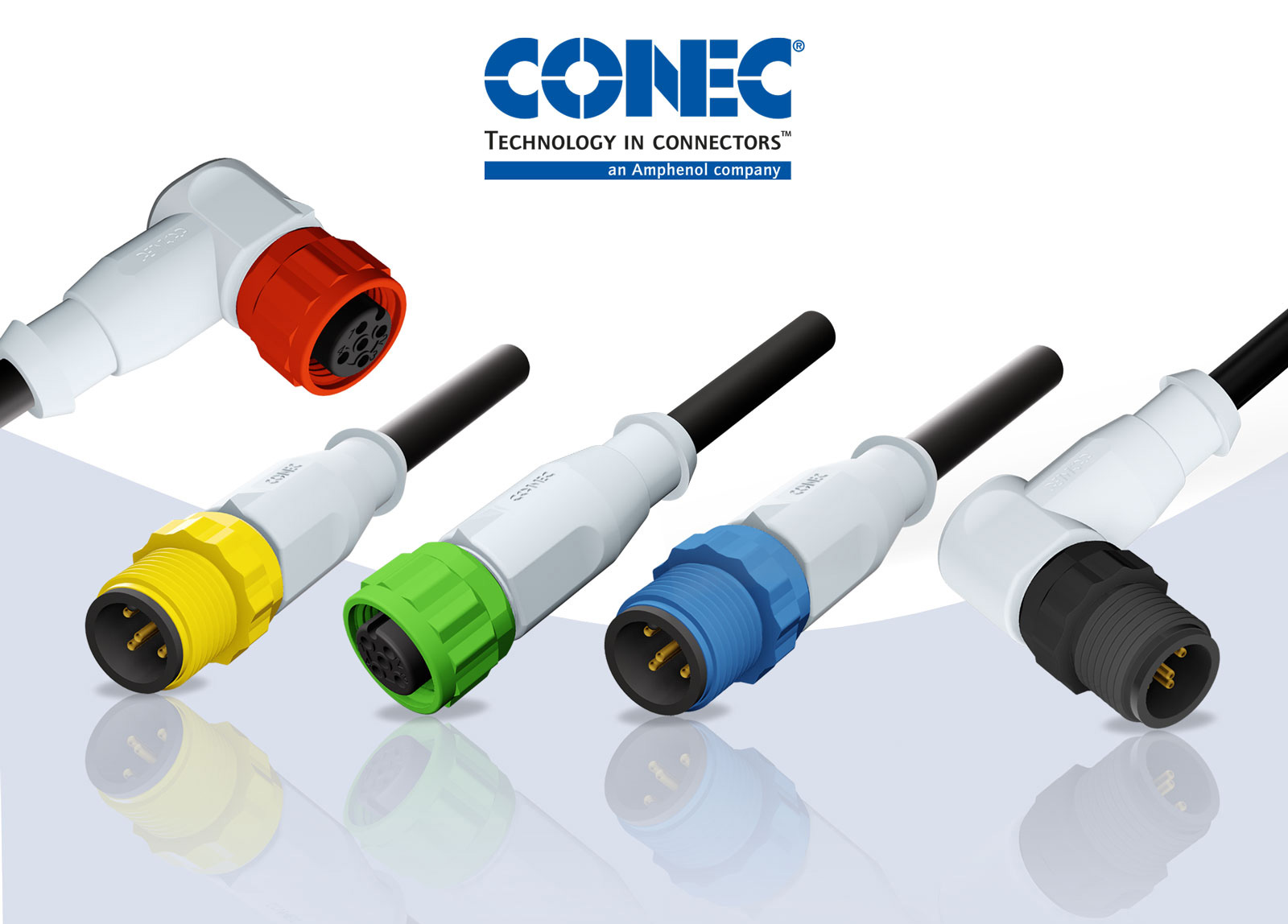

M12x1 Connectors overmoulded with coloured plastic coupling elements

CONEC offers variants of M12x1 connectors overmoulded with coloured plastic coupling elements in its product portfolio – especially for the chemical industry, municipal technology and the agricultural sector. In addition to the standard zinc die-cast or turned stainless steel versions, the plastic elements open up new fields of application.
Connector technology

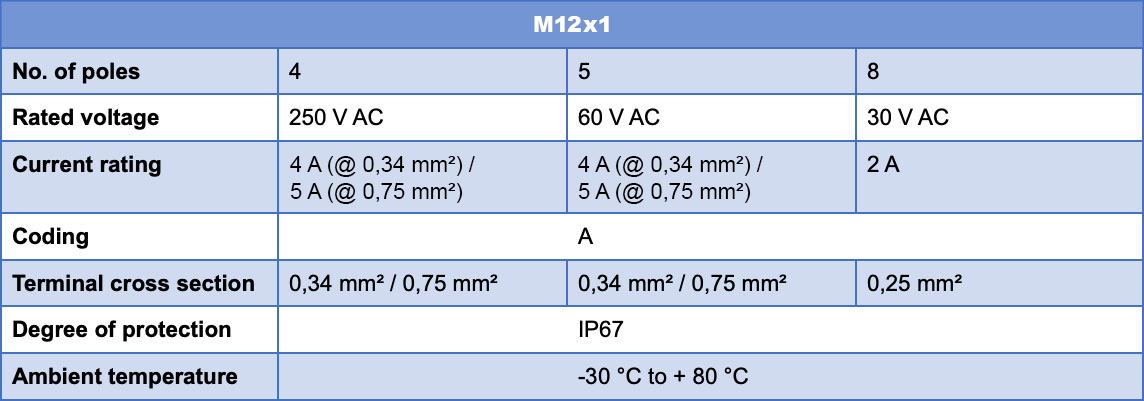

The screw elements are made of PA6 GF20 UL94-V0. As the plastic materials are resistant to weak acids, bases, alkalis and alkaline cleaning agents, the scope of application is where the chemical environment allows no use of zinc die-cast fittings and where stainless steel elements are too expensive. The possibility to choose between 5 colour variants (Black, White, Yellow, Red, Blue, Green) simplifies the assignment of complex cabling and with a terminal cross-section up to 0.75 mm², there are many possible applications.

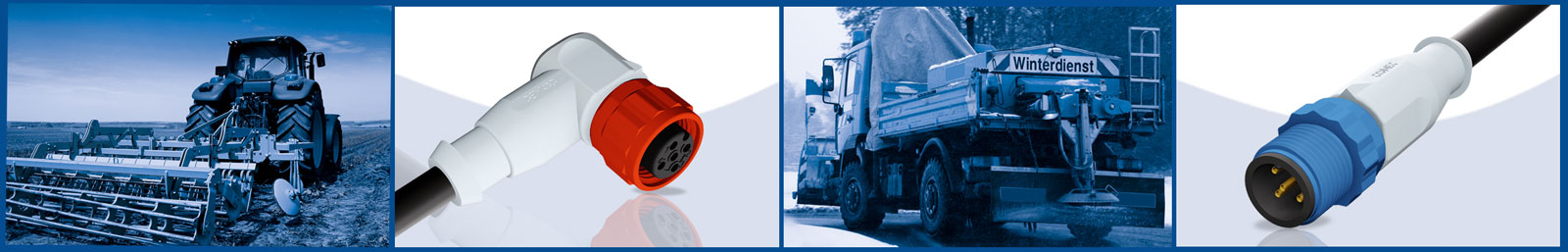

Typical examples of applications are dosing pumps for the treatment of drinking water, waste water and process water, dosing systems and disinfection systems for industrial use as well as applications in the agricultural sector. All articles with plastic coupling elements are manufactured on request and according to individual customer requirements. ds


  • Simplifies the assignment of complex cabling
  • Terminal cross section up to 0.75 mm²
  • Good grip of the screw elements
  • Good chemical resistance of the connector
  • Degree of protection: IP67

Fields of application

  • Chemical industry
  • Agricultural and construction machines

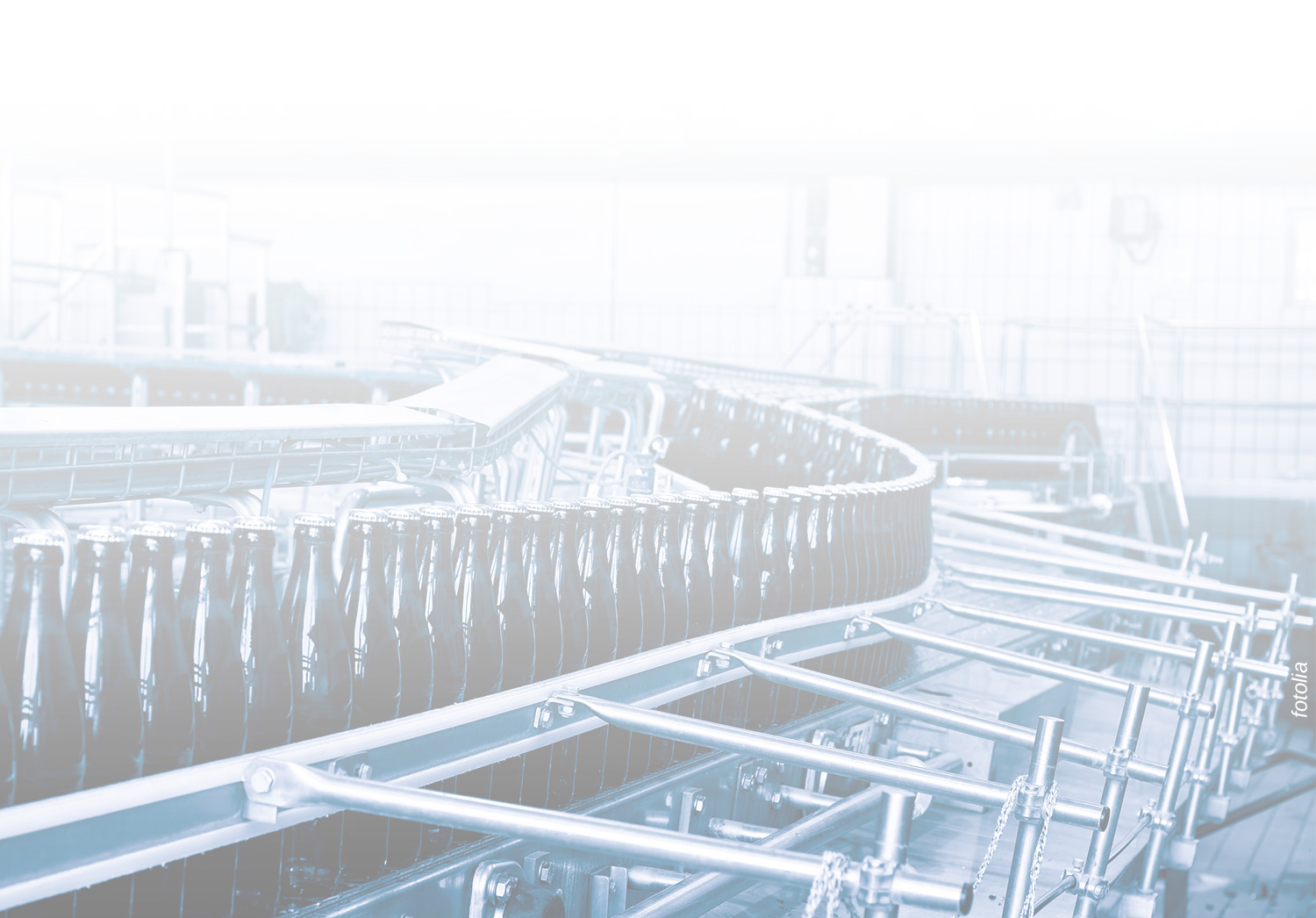

  • Food industry
  • Municipal industry
