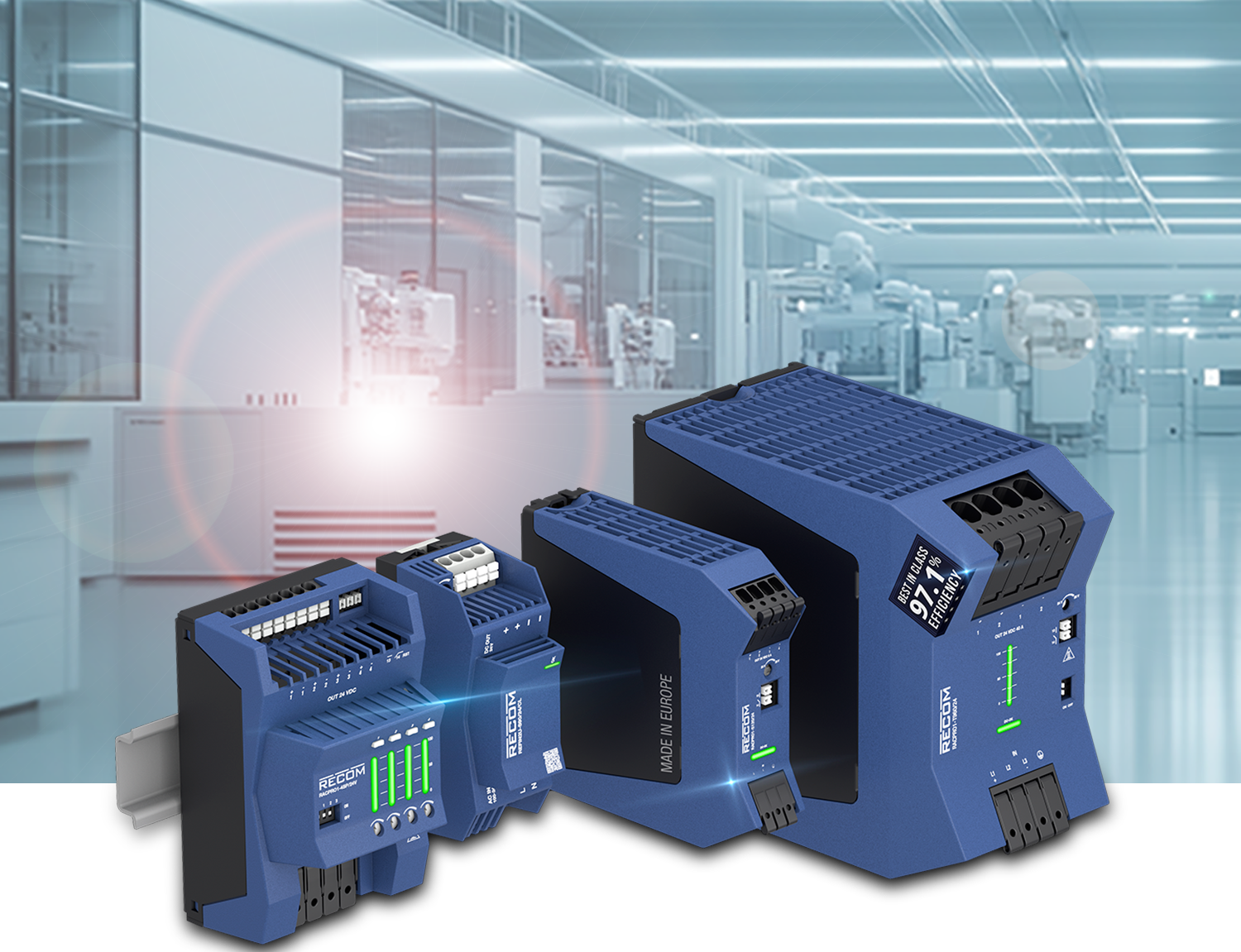

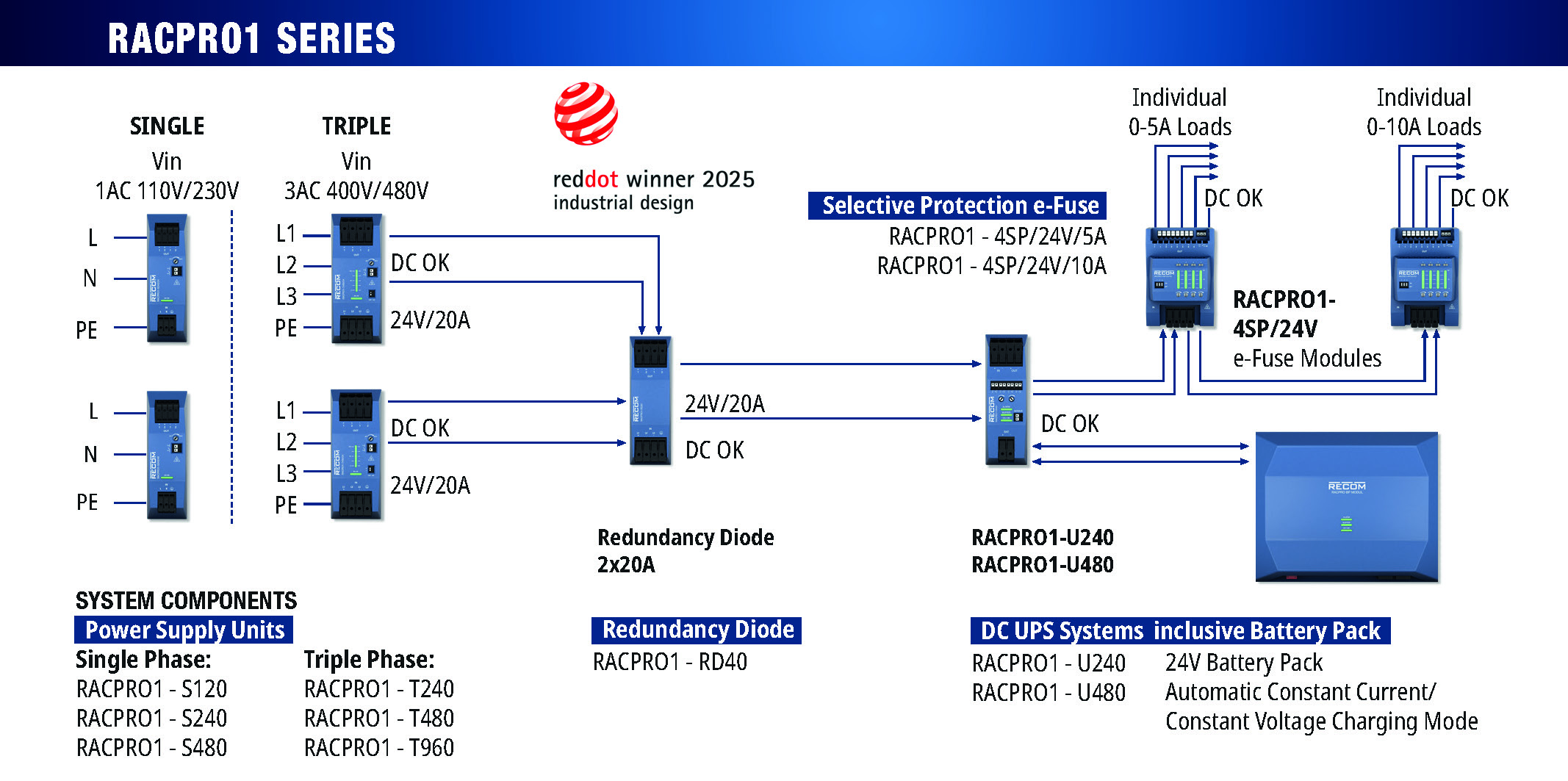

Overview of the RAC-PRO1 series
The available, adjustable output voltages are 12 V, 24 V, and 48 V for the 120 W and 240 W models, and 24 V and
48 V for the 480 W version. All components are designed for a short-term power output of 150 percent over 5
seconds for surge loads and offer high reverse voltage resistance. Full power can be delivered at up to +60 °C
with pure convection cooling; at higher temperatures, operation with derating is possible.
The push-in terminals feature an ergonomic design with a 25-degree angle, enabling easy, tool-free installation.
These maintenance-free terminals, together with mounting clips for the top-hat rail, allow for quick
installation and removal.
The power supplies are certified according to the global safety standards IEC/EN/UL 61010-1 and IEC/EN/UL/CSA
61010-2-201. Radiated and conducted emissions comply with Class B according to EN 61000-6-4, and the parts meet
the immunity standard EN 61000-6-2. They come with a three-year warranty.
Samples and OEM prices are available from all authorized distributors or directly from RECOM.
