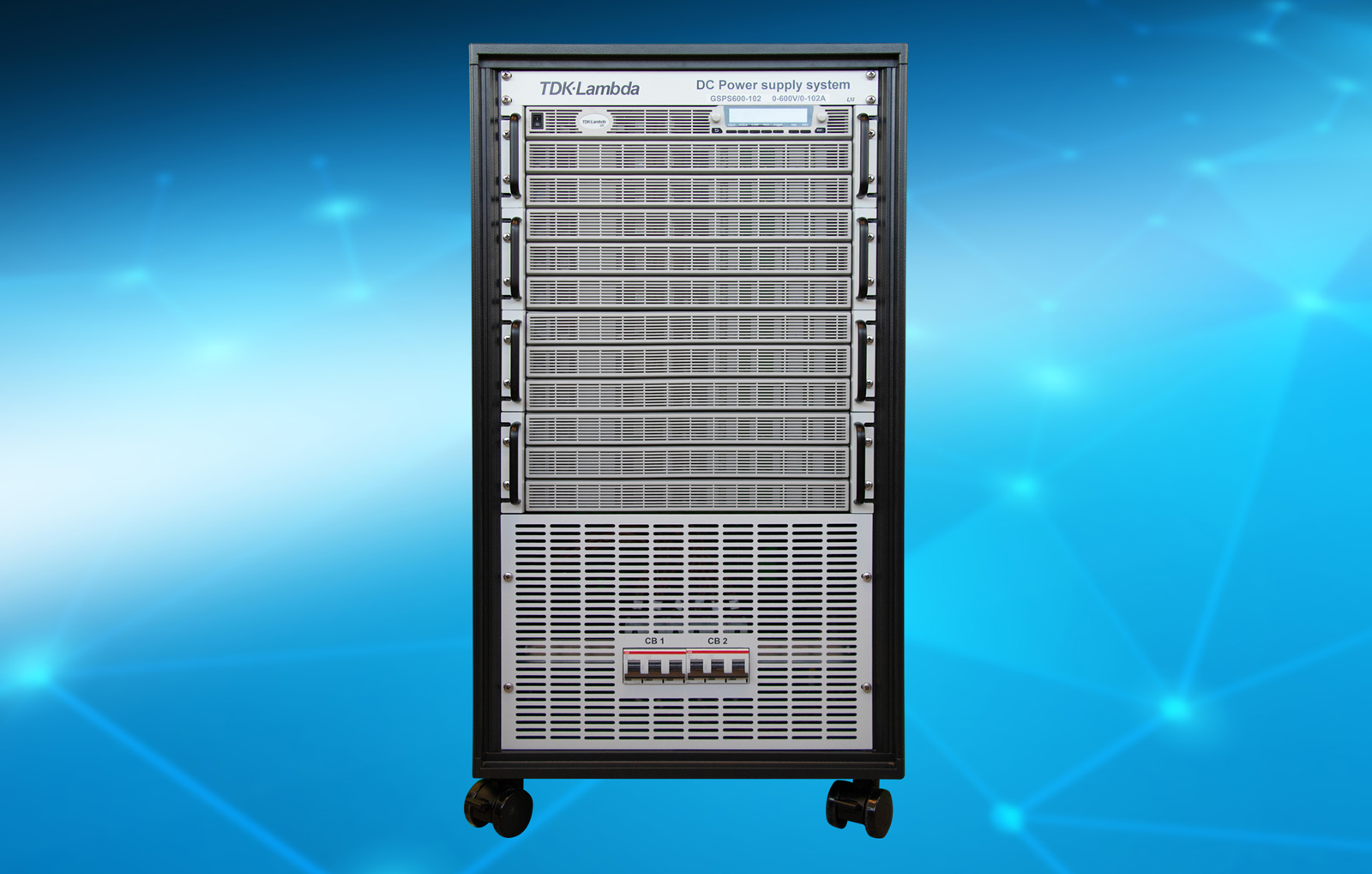

Configurable programmable power supply systems deliver 30 kW, 45 kW or 60 kW in a portable 20 U high 19-inch rack cabinet

TDK Corporation announces the introduction of 20 U high, 19-inch rack cabinet high power solutions to the TDK-Lambda GENESYS+™ series of programmable DC power supplies. The configurable GSPS series can provide 30 kW, 45 kW or 60 kW of output power with seamless transition across constant voltage, constant current, and constant power limit operating modes. The cabinets are mounted on lockable castors (wheels) to enable them to be easily repositioned around research or production facilities.
The GSPS series has been designed to meet the demands of test and measurement, automotive component test, aerospace, high power magnets, medical imaging, semiconductor processing and industrial automation and process control applications. Internally up to four of the popular GENESYS+™ GSP 15 kW power supplies are configured together to provide 41 standard voltage / current combinations ranging from 0 – 10 V to 0 – 600 V with output currents of up to 4,500 A. TDK-Lambda’s patented advanced parallel system provides dynamic load response and ripple and noise characteristics comparable with that of a single power supply.
Two input voltage ranges are offered. A three-phase low voltage from 170 to 265 Vac or a three-phase high voltage 342 to 528 Vac. The input circuit breakers are accessible on the front panel of the cabinet, and the paralleled output bus bar connections are at the rear. Safety features are standard in all GENESYS+™ power supplies, providing Safe/Auto Re-Start, Last Setting Memory and built-in protection functions for voltage, current and temperature.

Convenient programming

The GSPS uses standardised programming across the entire GENESYS+™ series, using front panel controls, remotely via LAN (LXI 1.5), USB 2.0 and RS232/485 communications or the isolated analogue control and monitoring interface (0 to 5 V, 0 to 10 V), which are provided as standard. Optional interfaces include a choice of GPIB (IEEE488.2), EtherCAT and Modbus-TCP. The comprehensive software package provides various software drivers, and a virtual front panel GUI, supporting the programming of various waveforms of the integrated arbitrary generator. This enables users to gain initial experience with standardised test tasks.
The five-year warranty series is safety certified to IEC/EN/UL 61010-1 with CE and UKCA marking to the Low Voltage, EMC and RoHS Directives.
The GENESYS+™ series also complies with IEC/EN 61204-3 for conducted and radiated EMI and EMC immunity. ds

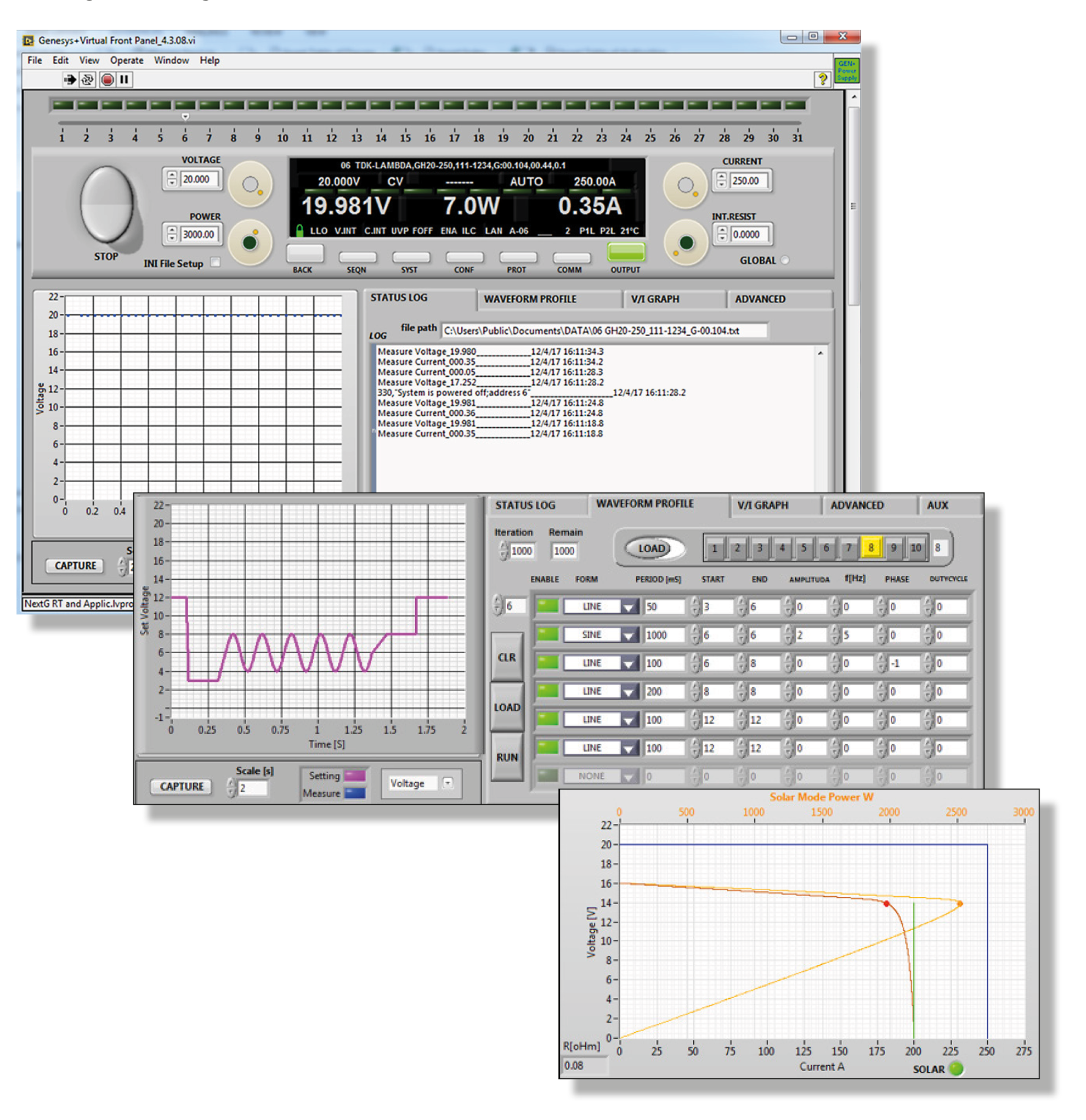

GUI Waveform Profile Generator
