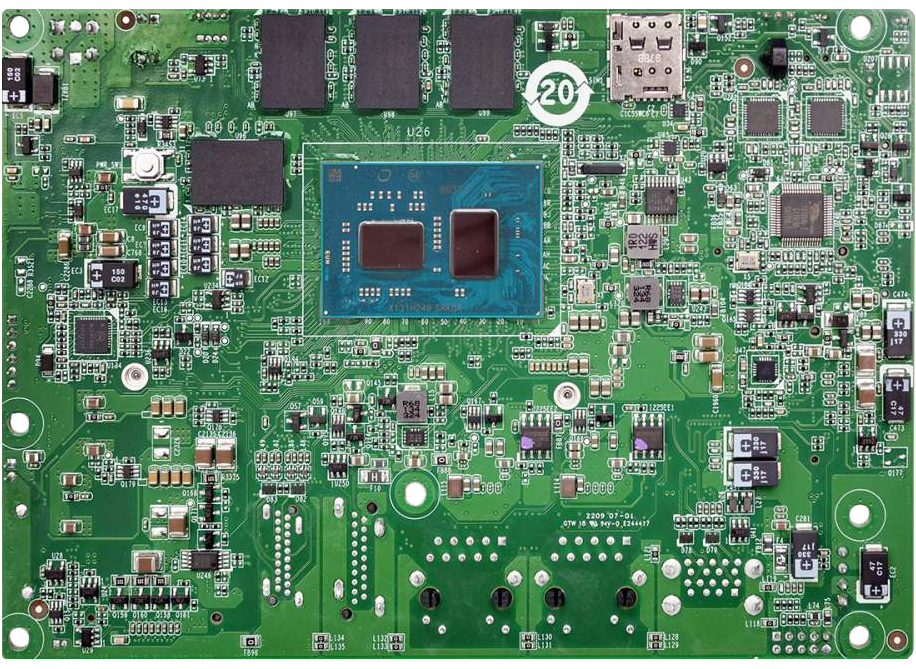

The WAFER-EHL 3.5-inch embedded board is equipped with an Elkhart Lake Celeron® J6412 processor,
which has four processor cores. The Elkhart Lake generation is designed for IoT edge devices and brings features
in IoT, real-time performance and functional security, among others. In addition, performance has been increased
by up to 1.7X in single-thread performance and up to 1.5X in multi-thread performance compared to the previous
generation. Thanks to Intel® Gaussian & Neural Accelerator (GNA), audio-based neural networks can be executed at
low power consumption, reducing CPU workload. The burst frequency of the Celeron®
CPU is 2.60 GHz.
Expandable
via PCIe x4 slot
An 8 GB DDR4 RAM module with 3200 MHz is permanently installed on the WAFER-EHL 3.5-inch board as standard.

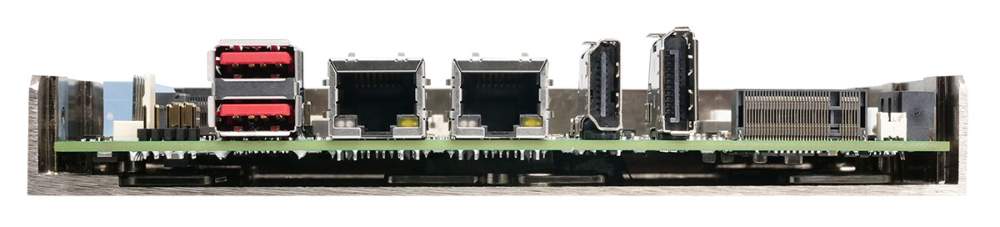

For graphics output, the board is equipped with a display port with maximum resolution of 4096 x 2160 pixels
and an HDMI port. An eDP, LVDS or VGA module can be added via the IEI IDPM 3040 slot.
Particularly noteworthy
is the PCIe x4 slot, which is a real special feature on the 3.5-inch board and makes expansion with riser cards
possible. As network ICs, two Intel i225V were used, which allow a speed of up to 2.5GbE each. Internally the
board has two RS-232/422/485, four USB2.0 interfaces as well as a 12 bit digital input and output, externally
two USB 3.2 ports. For expansions, one M.2 2230 with A-Key and one M.2 3042/2280 with B-Key slot are available.
The board operates with 12 volts DC in a temperature range from 0 °C to 60 °C. On request, ICP supplies the board
with suitable industrial main memory and solid-state memory.
