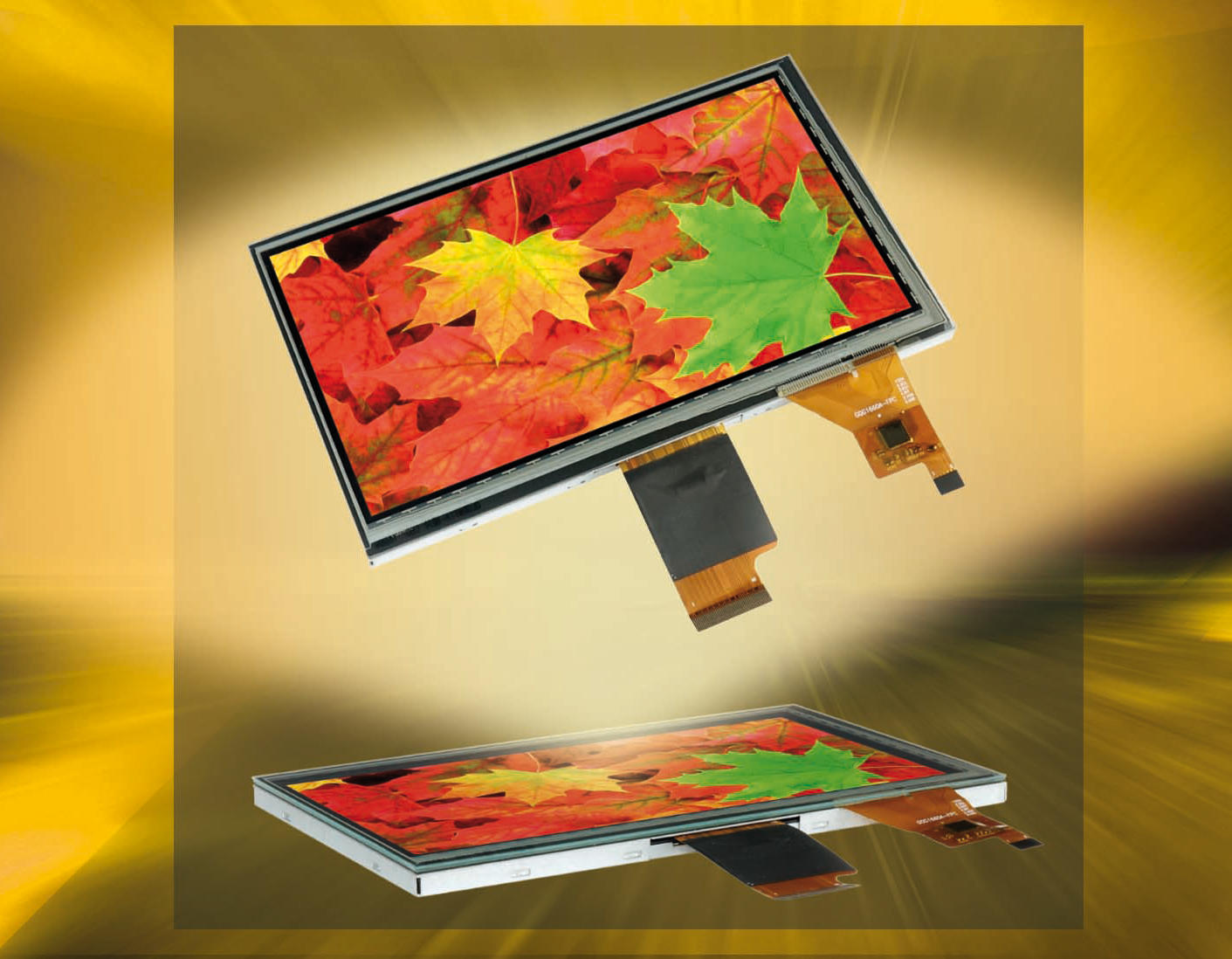

Crisp IPS displays in all sizes
The small, coloured displays from DISPLAY VISIONS are the perfect replacement for monochrome displays.
They impress thanks to their rich colours and strong contrasts, and have amazing angle stability.
With the EA TFT series, DISPLAY VISIONS has a series of small IPS colour displays to offer which are also
excellently suited if you wish to replace monochrome graphics displays. In terms of the IPS technology,
the light-conducting liquid crystals are aligned parallel to the image plane.
HMI – Display
This special arrangement means
that colours and contrasts remain brilliant and stable, even if the viewing angle changes. The graphics displays
can therefore be installed in a portrait format as well as landscape without any loss of readability.
With maximum brightness levels of up to 1,000 cd/m², the displays are still clear to read even in direct sunlight.
The displays are currently offered in sizes from 0.96 inches (EA TFT009-81AINN) to 10.1 inches (EA W1280X-101ALW). In spite of its compact dimensions, even the EA TFT009-81AINN has a resolution of 80 x 160 pixels.
As well as the standard RGB connection, some smaller displays also have a four-wire SPI, which saves pins. The μC data bus allows 8-bit or 16-bit parallel access. For SMD assembly, the right connectors are included as accessories. Even the smallest displays are available combined with a resistive or capacitive touch panel.
Designed for industrial applications, the service life of the sturdy IPS displays is 50,000 hours at a broad operating temperature range from -20 °C to +70 °C. They are available right now and, as with all their products, DISPLAY VISIONS GmbH also offer long-term availability and a comprehensive support package.Test board

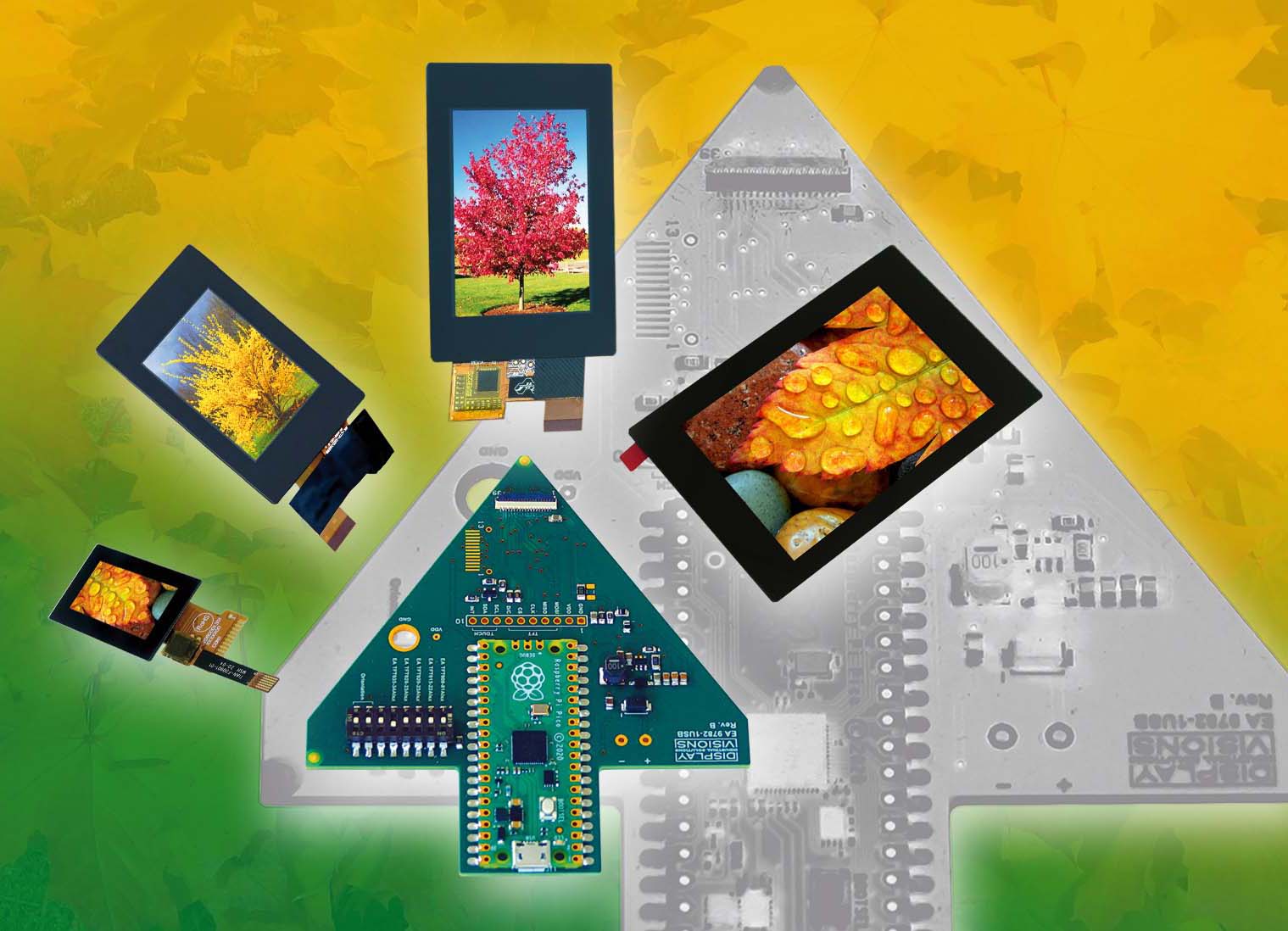

From now on DISPLAY VISIONS is offering a USB demo board for IPS displays from 0.9 to 3.5 inches.
With the EA 9782-1USB, DISPLAY VISIONS GmbH is providing developers with a USB test board for small IPS displays
from the EA TFT product line. This allows the small panels, including the variants with touch function (-AITC),
to be tested and adapted quickly and easily without any specific knowledge of the hardware or software. The
demo board can be run immediately on any USB charger. Connected to a Windows PC and accessed via the startTFT.exe
program, it opens up more options to display your own images or control the brightness. An additional power
supply is not necessary in this case. A bundle including the display is also available.
The displays are currently offered in sizes from 0.96 inches (EA TFT009-81AINN) to 10.1 inches (EA W1280X-101ALW). In spite of its compact dimensions, even the EA TFT009-81AINN has a resolution of 80 x 160 pixels.
As well as the standard RGB connection, some smaller displays also have a four-wire SPI, which saves pins. The μC data bus allows 8-bit or 16-bit parallel access. For SMD assembly, the right connectors are included as accessories. Even the smallest displays are available combined with a resistive or capacitive touch panel.
Designed for industrial applications, the service life of the sturdy IPS displays is 50,000 hours at a broad operating temperature range from -20 °C to +70 °C. They are available right now and, as with all their products, DISPLAY VISIONS GmbH also offer long-term availability and a comprehensive support package.
Test board
for small IPS displays
From now on DISPLAY VISIONS is offering a USB demo board for IPS displays from 0.9 to 3.5 inches.
With the EA 9782-1USB, DISPLAY VISIONS GmbH is providing developers with a USB test board for small IPS displays
from the EA TFT product line. This allows the small panels, including the variants with touch function (-AITC),
to be tested and adapted quickly and easily without any specific knowledge of the hardware or software. The
demo board can be run immediately on any USB charger. Connected to a Windows PC and accessed via the startTFT.exe
program, it opens up more options to display your own images or control the brightness. An additional power
supply is not necessary in this case. A bundle including the display is also available.
