IPS Display
the Raspberry Pi Pico

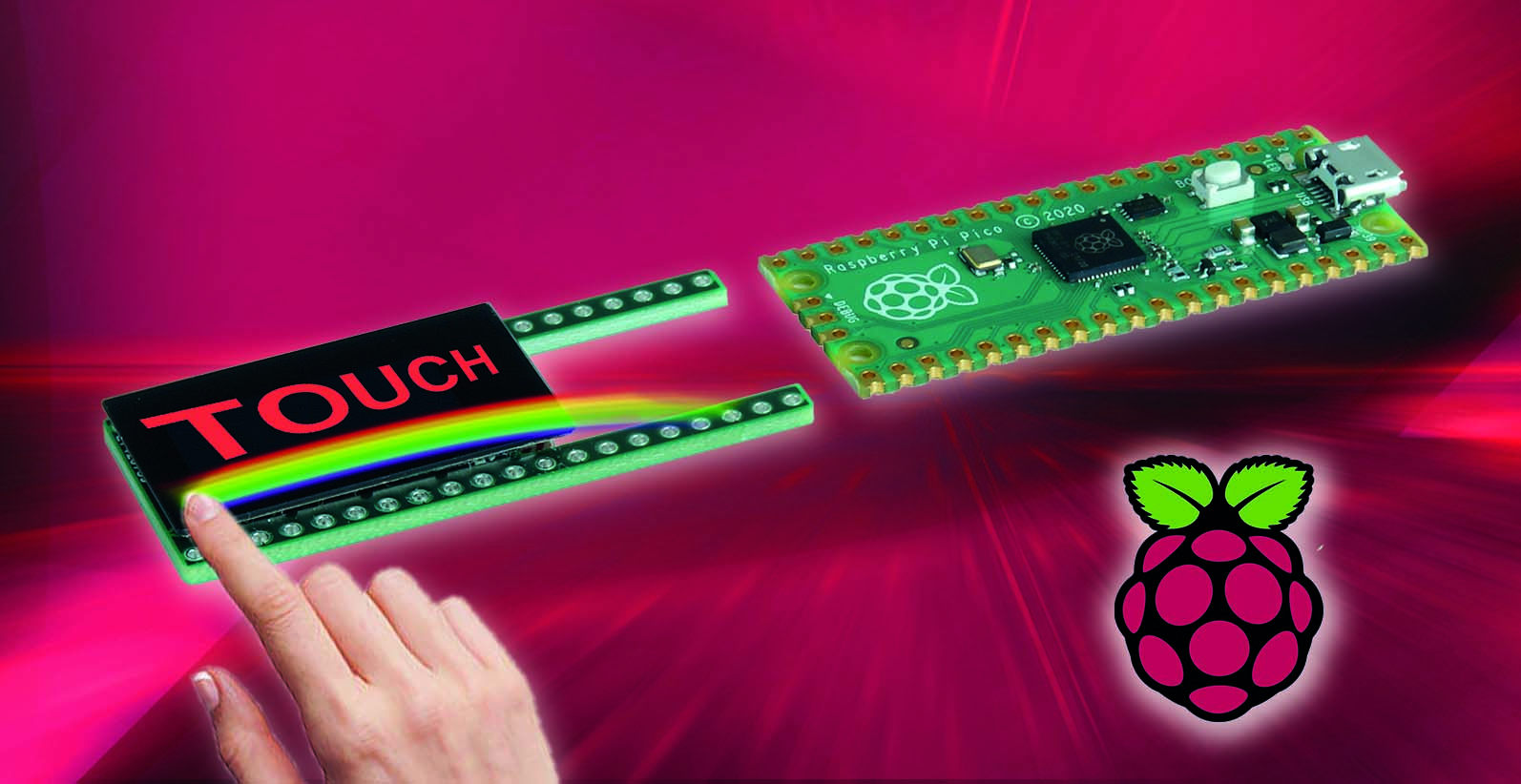

As an application example DISPLAY VISIONS presents the RaPicoTFT009 with a diagonal screen measurement of 0.9 inches. Unless this small dimensions it has a resolution of 160 x 80 pixels for high-definition displays. Thanks to the IPS technology (In-Plane Switching), it produces a high-contrast image with strong colours regardless of your viewing angle. As RaPicoTFT009TC, the display even comes with a capacitive touchscreen. Texts as well as images can be shown. It is also supplied with the corresponding software with C library, numerous functions, and detailed documentation, making the presentation of measurement value and parameters really simple. Designed as a “Shield”, it can be connected directly to the mini-computer.
The energy-efficient screen (max. 80 mW) is perfectly suited to various IOT applications. At the Raspberry, only one of the two SPI interfaces, and one of the 26 GPIO pins (GP13), are required. The touchscreen version (RaPicoTFT009TC) also uses an I²C bus interface and another GPIO pin as an interrupt input (GP8). ▪ ds
