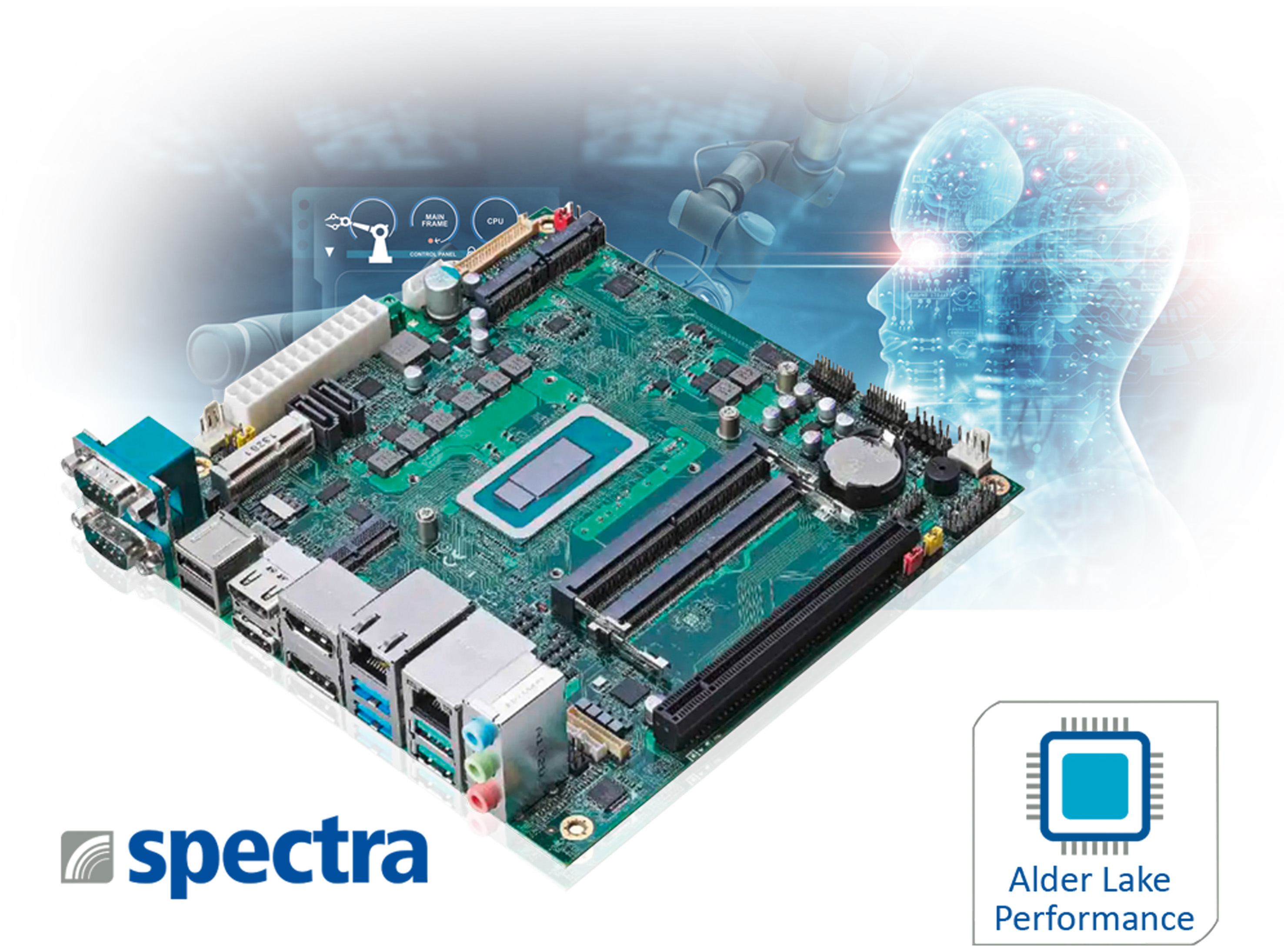

High performance for embedded systems

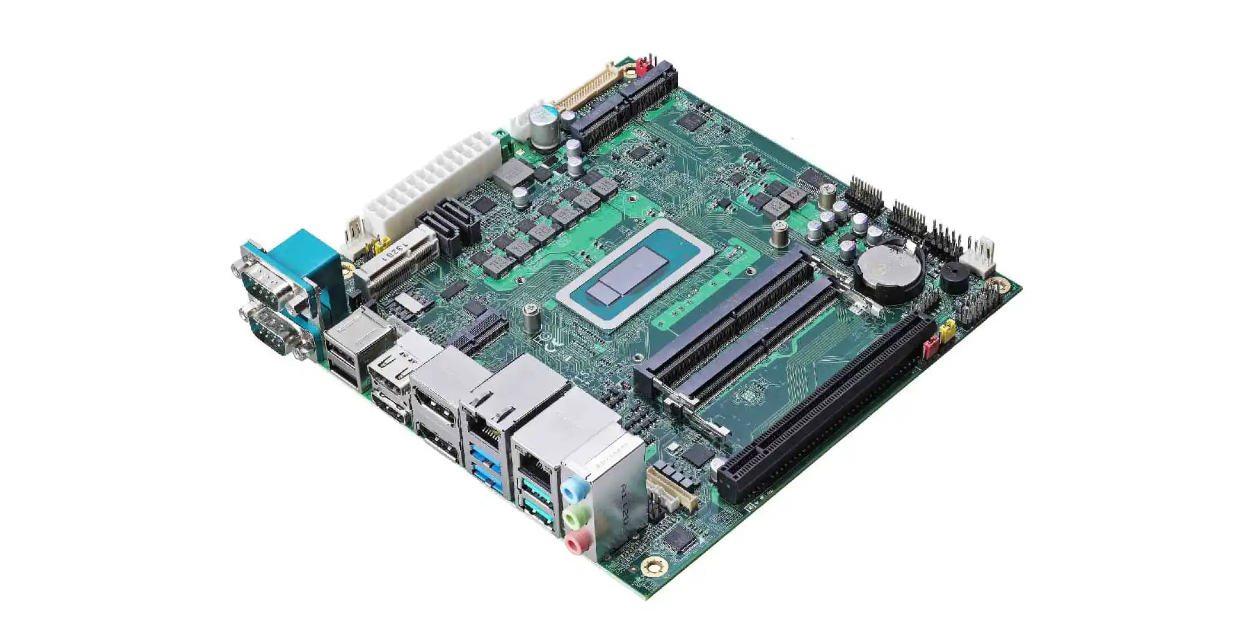

LV-6715H7: Mini-ITX
Board with Alder Lake processor

In many applications such as AI and deep learning as well as vision processing and robotics, the CPU and GPU performance of the embedded system is essential. With the industrial mini-ITX board LV-6715H7, Spectra introduces a platform especially suited for these requirements.
Industrial PC

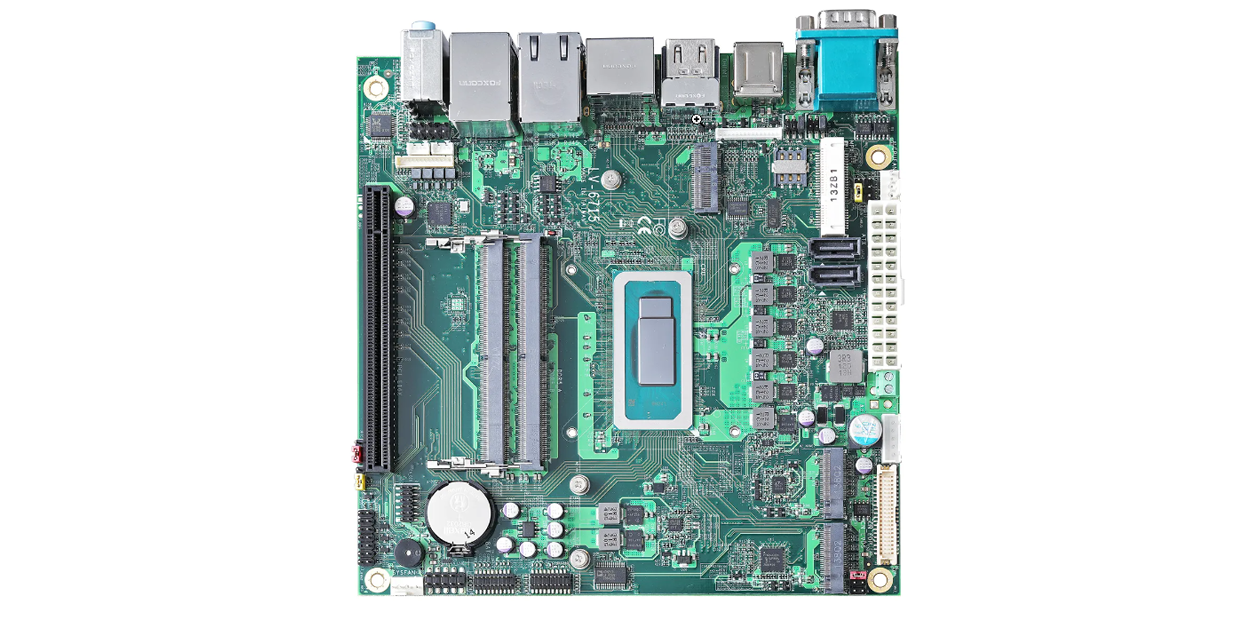

Top view
High performance in a small space
The core – the cutting-edge Intel® Core i7-12800HE processor of the Intel® Alder Lake series – is one of the most powerful in its class in terms of CPU and GPU performance. Two DDR5 RAMs up to a maximum of 64 GB can be installed in two slots to support the performance.

Power for AI and image processing

The integrated Intel® Iris® Xe GPU ensures excellent graphics performance. This high-performance architecture provides high-end media and graphics capabilities for devices that display video, 2D/3D graphics and interactive content. For the first time, users can simultaneously drive four displays with one LVDS, two HDMI and two DP, one DVI or HDMI connectors. Features like the Intel® Deep Learning Boost and the Intel® Image Processing Unit support image processing and AI applications.

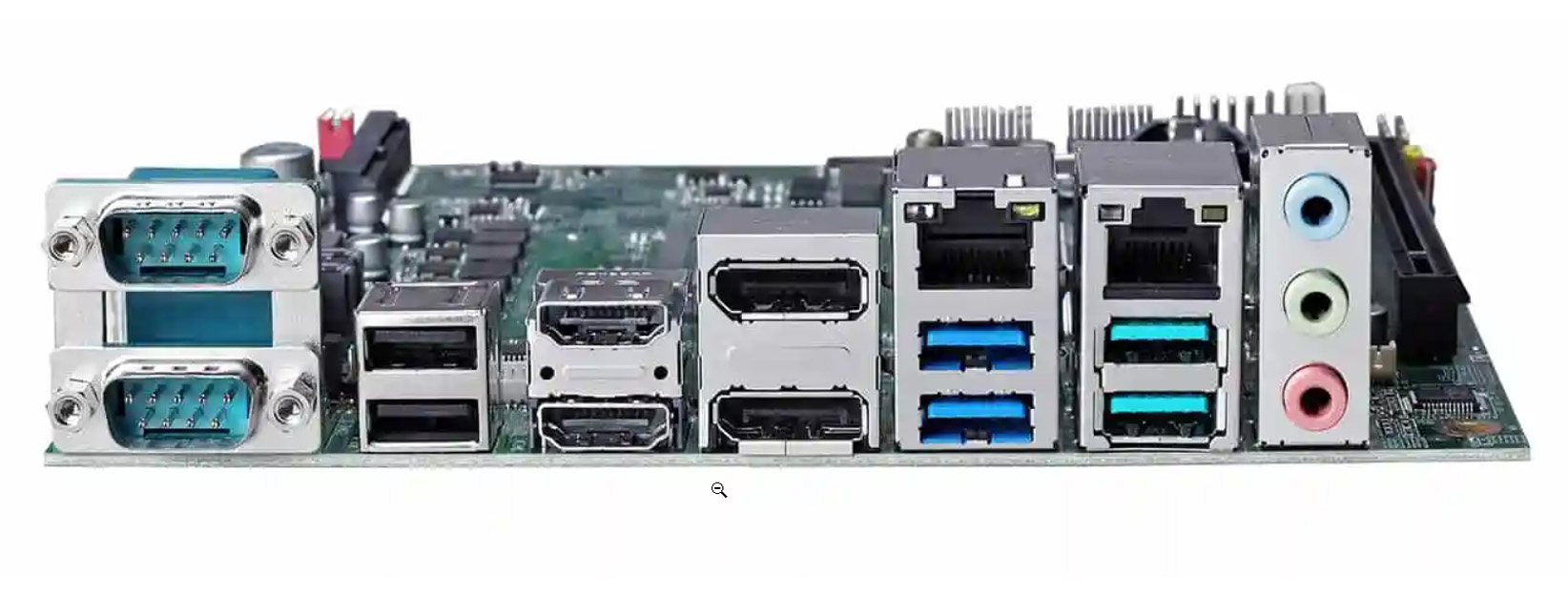

Interfaces for
a wide range of applications1

The Mini-ITX board also offers high-speed data transfer interfaces such as four USB3.2 Gen2, two Gigabit Ethernet and six COM ports. For expansion, you can use two M.2 (Key M 2280), one M.2 (Key E 2230), one mPCIe socket with SIM slot (supports mSATA) and one PCIe x16 slot. Regarding the power supply, you can choose between 24pin ATX or 4pin 9-35 V supply. ds
