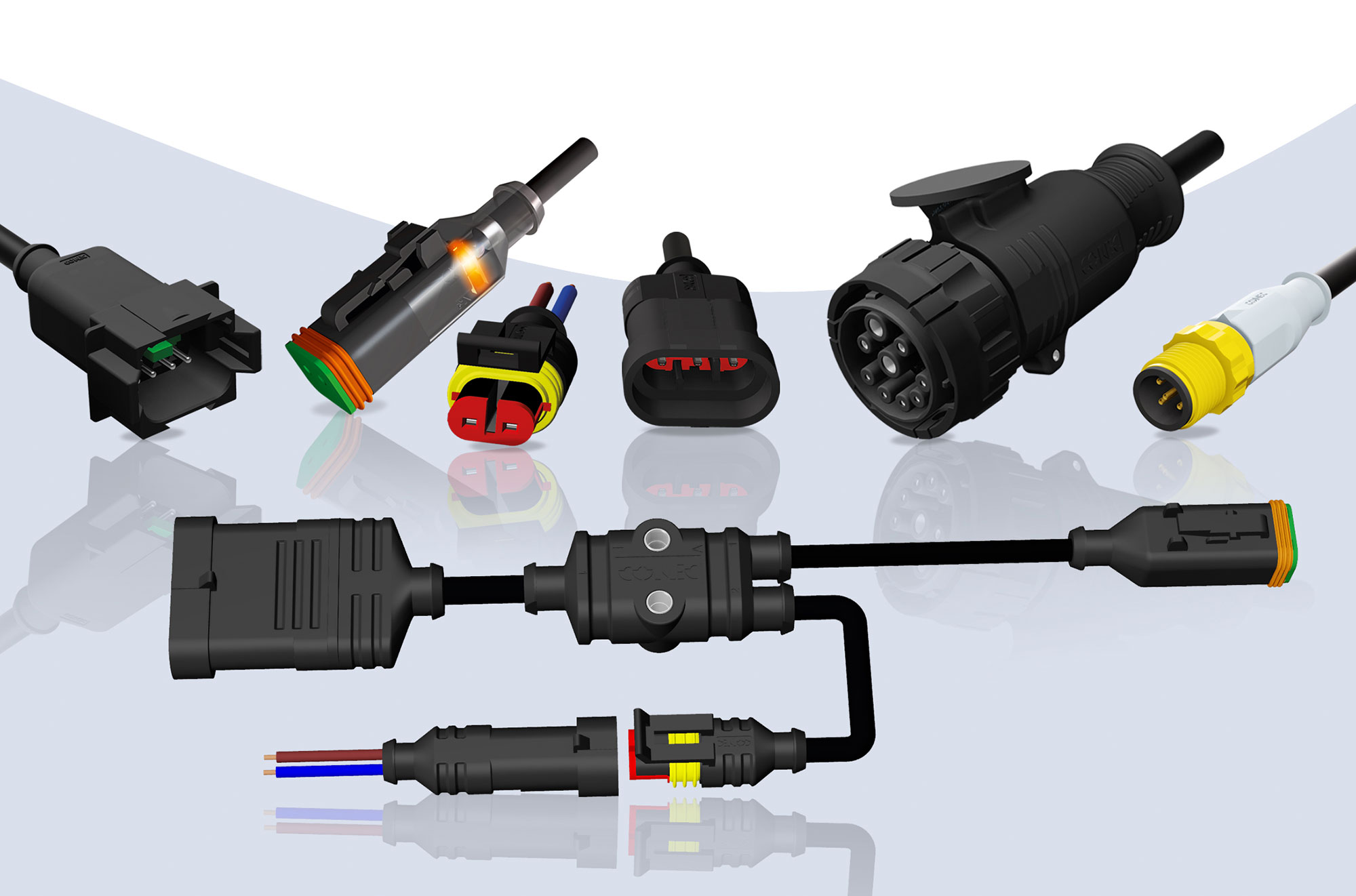

The DT and VSS Superseal connector series are designed as cable to cable connection and are latched and locked via a latch with the mating connector. This connection is used to create a fast and secure sealed connection. The
CONEC overmoulding ensures that the protection class IP67 / IP69K is fulfilled for the entire connector when
mated. The overmoulded DT connector series is optionally available with an LED for signal status indication and
protective circuitry against switching and interference voltages.
ISOBUS series
To extend the CONEC product range in the field of connection solutions for agricultural and construction
machinery, the connectors for ISOBUS are included in the ready-made and overmoulded design. The overmould
provides a continuous IP67 protection of the housing up to the hybrid cable and is suitable especially for harsh
environments like agriculture, construction and mining industries. Connection is done via bayonet locking.
Currently, three different cable variants are available which are specifically designed for agricultural
applications.
M12x1 connector with plastic screw/nut
The M12×1 connectors overmolded with colored (blue, green, yellow, red, white, black) sleeve elements facilitate
the assignment of complex cabling for applications in the municipal and agricultural sectors. Since the plastic
materials used are resistant to weak acids, bases, alkaline solutions and alkaline cleaning agents, the area of
application is where the chemical environment does not permit the use of zinc die-cast cable glands and
stainless steel elements are too expensive. The M12x1 connectors, overmoulded with plastic screw elements, are
available in 4, 5 and 8-pin versions, both axial and angled.
Junction system type S, M, L
The new CONEC junction system provides a flexible way to integrate moulded branches/outlets in electrical
connection lines such as e.g. cable harnesses. This ensures that the continuous lead sheathing retains its full
functional integrity even at the splice site (at the junction system). The junction system is at least
IP67-protected, electrically tested at the factory and thus offers a robust, tamper-proof way to electrify
machines in a safe way. The PUR moulding provides good resistance for applications in the agricultural industry.
CONEC provides three different sizes of junction systems (S, M and L). Since the junction system is designed for
cable entries and exits, there are almost unlimited possibilities to combine different connector systems.
