Condition Monitoring Sensors – Portfolio Expanded

In addition to the CMVT vibration/temperature sensor and the CMTH humidity/temperature sensor, the CMMT magnetic field/temperature sensor now complements Turck's portfolio of easy-to-use condition monitoring sensors and thus opens up new fields of application.

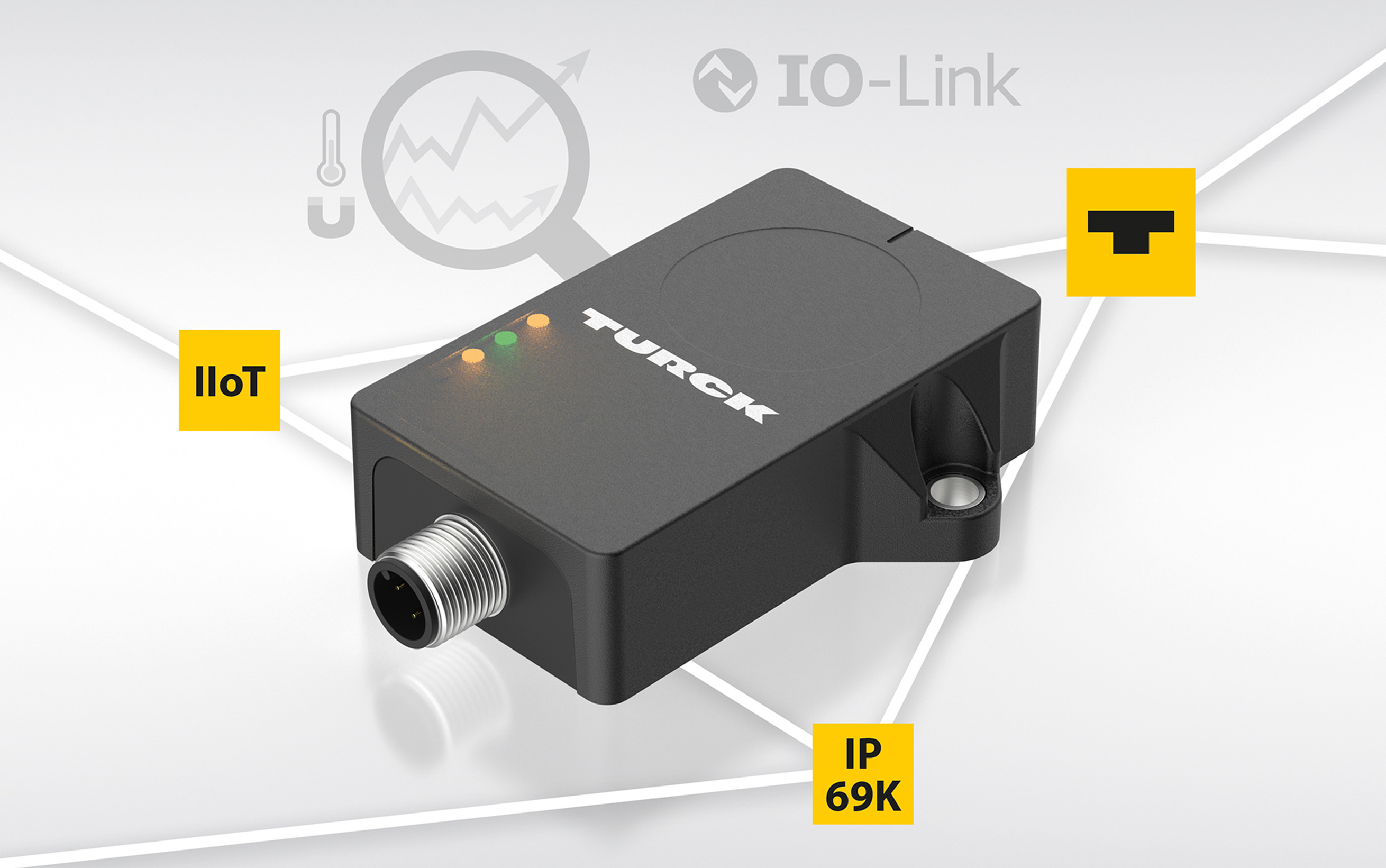

The CMMT 3-axis magnetic field/temperature sensor with IO-Link is the third sensor type that Turck has developed specifically for easy-to-use and retrofittable condition monitoring applications. It complements the existing range consisting of the CMVT vibration/temperature sensor and the CMTH for humidity and temperature measurements. With the CMMT, the combined measurement of magnetic field and temperature enables simple detection of faults on motors or in processes with magnetic components. In addition, the new sensor also opens up applications that were previously impossible, such as the non-contact detection of the rotation and movement of metal objects without visual contact.
Sensors
CMMT magnetic field sensors detect interfering magnets in packets so that suitable measures can be taken to avoid jams

Warning message via IO-Link and switching signal possible

The CMVT detects vibration on three axes and evaluates them internally. It outputs a warning signal directly if the set limit values are exceeded – either via IO-Link or as a switching signal. Vibration and temperature are the key characteristic values for detecting machine faults early on, such as those caused by the imbalance of rotating parts.
The CMTH continuously records humidity and temperature and outputs the values via IO-Link or as a switching signal. This makes the sensor particularly suitable for monitoring the climatic conditions in production and warehouse buildings for all sectors handling goods that are sensitive to humidity and temperature.

App facilitates commissioning

When commissioning the condition monitoring sensors, users are supported by special apps in the Turck Automation Suite (TAS). These applications visualize the sensor data live in the web browser and can be used via any Turck IO-Link master without additional software. The device functions are also set via TAS or other IODD interpreters. In addition to the process values, additional information such as operating hours and switching cycles can also be output via the digital interface. ds
Plug&Check: Turck's CMTH humidity/temperature sensor allows efficient condition monitoring in production and in the warehouse

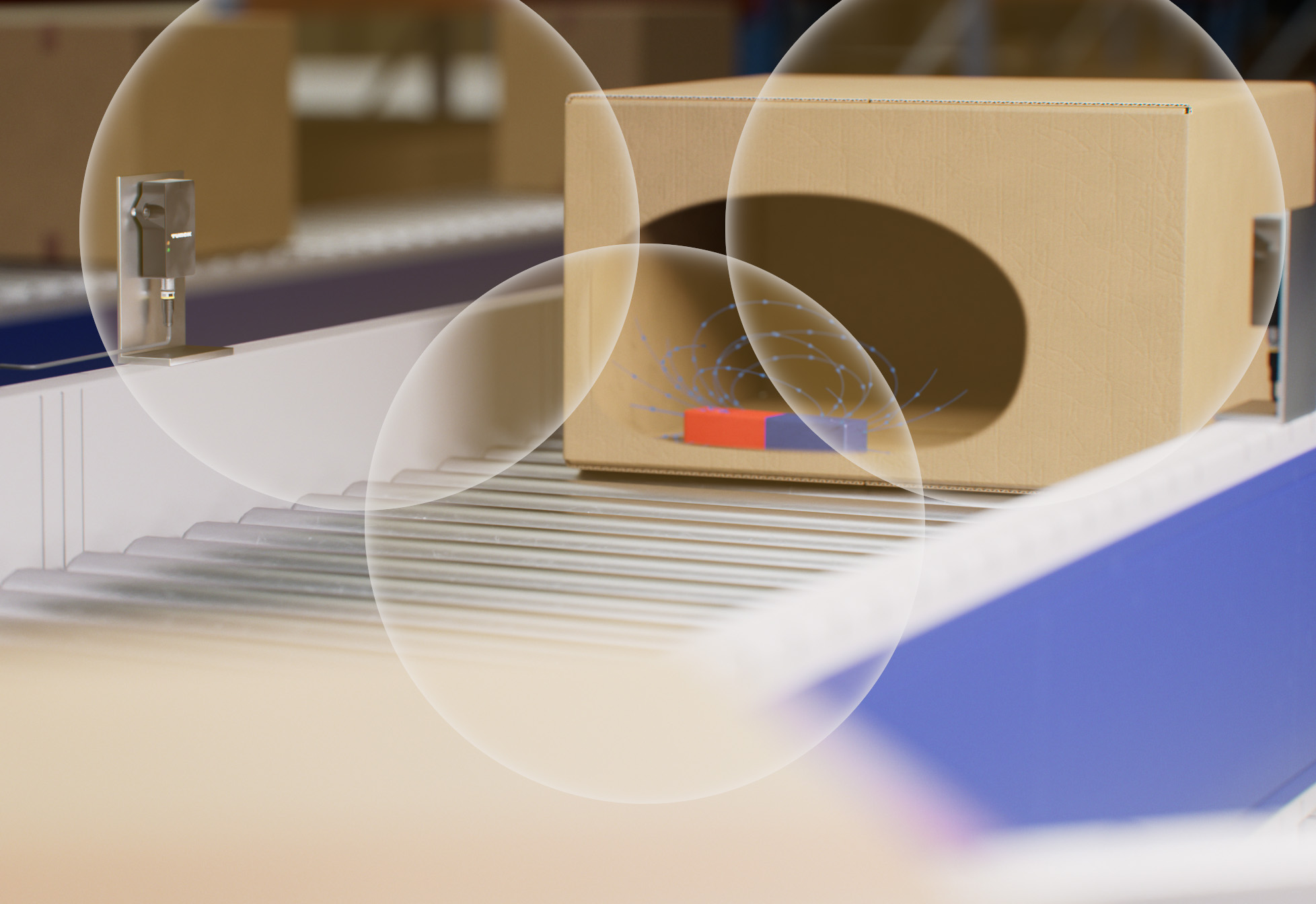

CMMT magnetic field sensors detect interfering magnets
in packets so that suitable measures can be taken to avoid jams
