Video: Elevator Pitch – Condition Monitoring Sensor for Temperature and Air Humidity

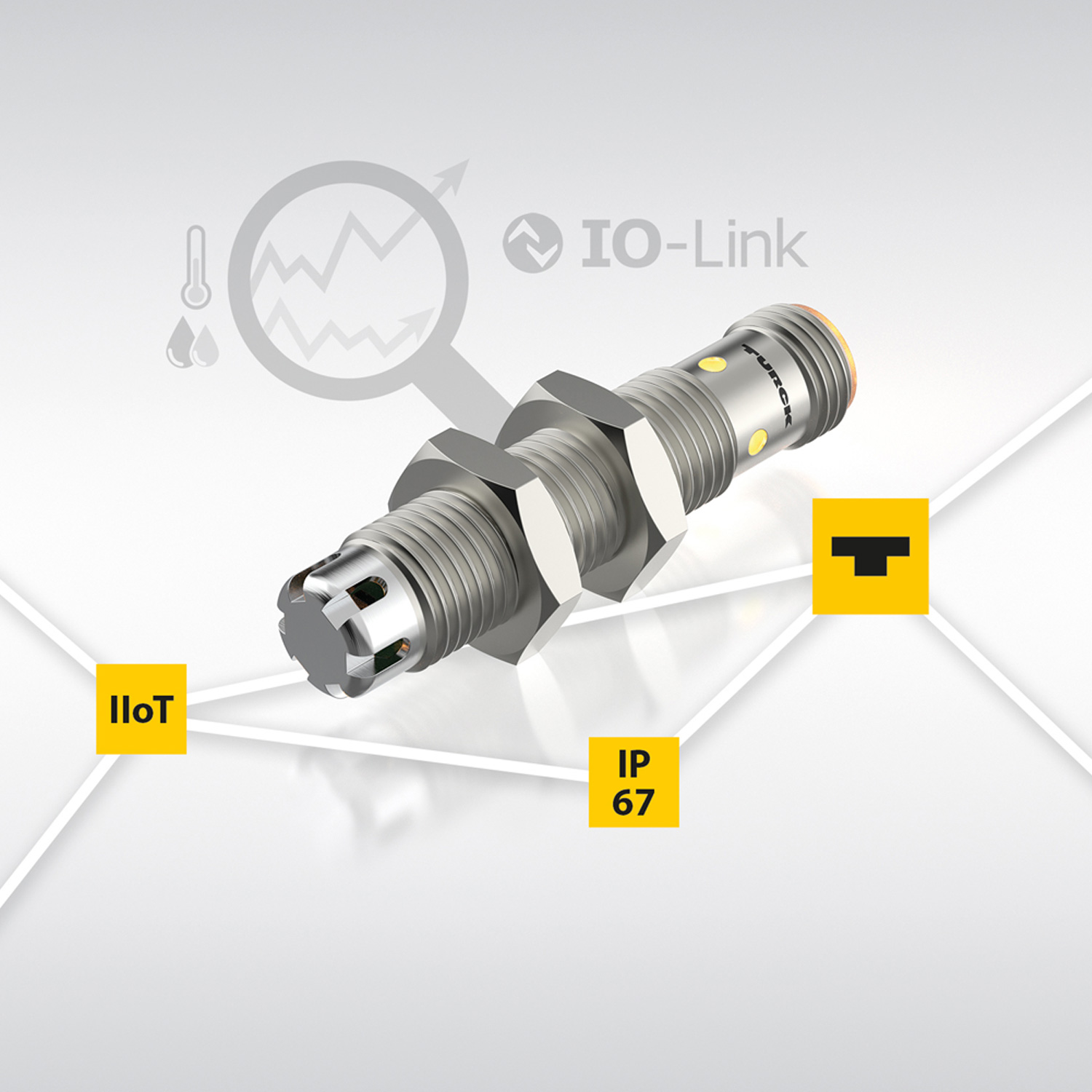

Turck's CMTH combined humidity and temperature sensor is now available in a compact variant with
improved IIoT integration for smart condition monitoring applications. With a length of only 57 mm and
an operating temperature range from -40 to +100 °C, the IP67 sensor in an M12 housing can even be used
in challenging environments.
The interface provided also supports easy integration: The standard IO-Link Smart Sensor Profile
(version 4.1.2.) with 64 bits on two channels simplifies the vendor-neutral configuration of networked
systems.
The CMTH is particularly suitable for monitoring the climatic conditions in production and warehouse buildings for all sectors handling goods that are sensitive to humidity and temperature.Smart additional
In simple I/O mode (SIO) the sensor outputs a switching signal for temperature and one for humidity.
This mode is particularly suitable for retrofitting climatic data in existing applications where digital
interfaces like IO-Link are rarely available.
IO-Link mode offers benefits in modern plants or machines as the CMTH smart sensor can not only output continuous process values but can for example also calculate the local dew point.
Users requiring long-term analyses will appreciate the pre-configured histogram function. The digital interface also simplifies sensor commissioning.
Turck's IO-Link master can commission the device via the master's integrated web browser, without the need for any additional software. ▪ ds
The CMTH is particularly suitable for monitoring the climatic conditions in production and warehouse buildings for all sectors handling goods that are sensitive to humidity and temperature.
Smart additional
functions via IO-Link
In simple I/O mode (SIO) the sensor outputs a switching signal for temperature and one for humidity.
This mode is particularly suitable for retrofitting climatic data in existing applications where digital
interfaces like IO-Link are rarely available. IO-Link mode offers benefits in modern plants or machines as the CMTH smart sensor can not only output continuous process values but can for example also calculate the local dew point.
Users requiring long-term analyses will appreciate the pre-configured histogram function. The digital interface also simplifies sensor commissioning.
Turck's IO-Link master can commission the device via the master's integrated web browser, without the need for any additional software. ▪ ds

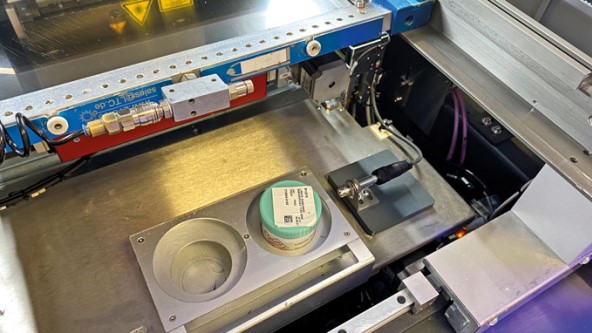

The CMTH detects temperature and humidity in solder paste
printers and transmits values to its IO-Link master
×
![]()
