The uIBX-CZ4350 supports up to 64 GB of memory at 2666 MHz and comes equipped with 16 GB of RAM out of the box.
The UHD graphics unit provides up to 4096 x 2304 pixel resolution. Both a display port and an HDMI port can be
used as connection options for monitors for this.

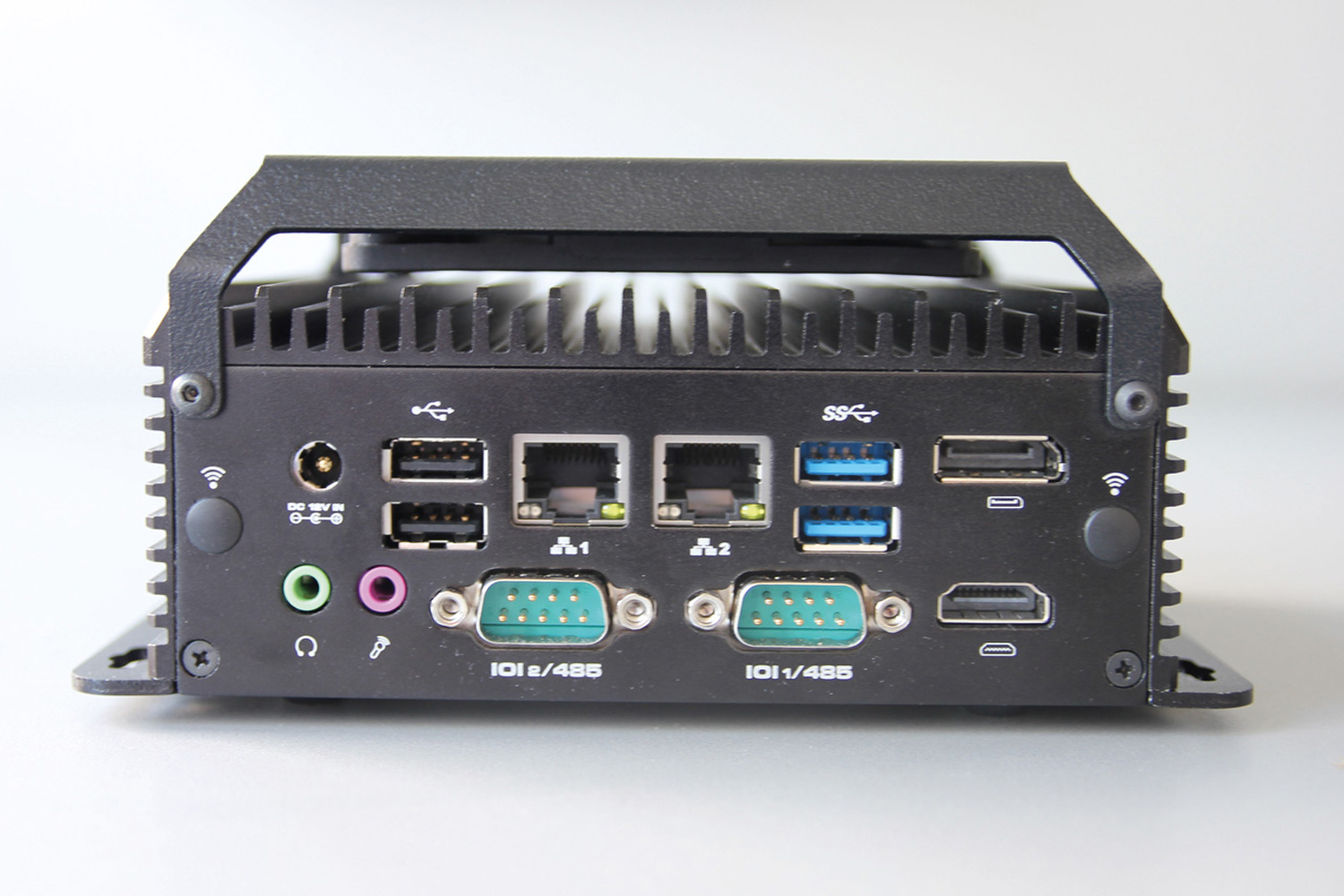

Additional devices can be connected to four USB 3.0, four
USB 2.0, two Gigabit network ports and two RS-232/422/485 interfaces. An M.2 2230 with an externally accessible
SIM card slot and a Mini PCI Express slot are also available as expansion options. The M.2 2280 slot is equipped
with a 256 GB NVME SSD on which Windows 10 IoT version 2021 is preinstalled.
Hybrid cooling system
The uIBX-CZ has pre-activated energy-saving functions on the bios and software side so that the system can be
operated as energy-efficiently as possible.
The optionally available power supplies are efficiently designed and
comply with Energy Efficiency Level VI. Furthermore, the uiBX-CZ4350 is hybrid cooled. The housing of the
uIBX-CZ4350 is designed for fanless operation. The additionally attached fan is particularly quiet,
low-maintenance and durable. Temperature-controlled, the fan operates in a speed range of 600 to 2300 rpm. At
maximum speed, the noise level is below 24 dBA.
The fan is designed to be low maintenance and can be replaced as
needed without having to open the system. The Mean Time to Failure MTTF of the fan is stated to be 150,000
hours. The additional cooling unit reduces the temperature inside the system, which has a positive effect on the
service life of the entire system.
ICP Germany delivers the system as part of the Green IT campaign with
compensated CO
2 offsetting for the transport from the manufacturer to the customer.
