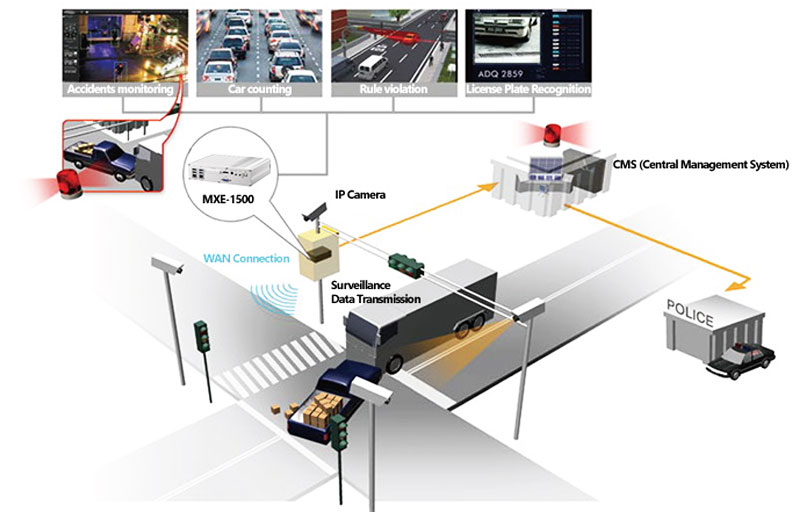

The embedded computers of the MXE-1500 series can be used for traffic monitoring and more

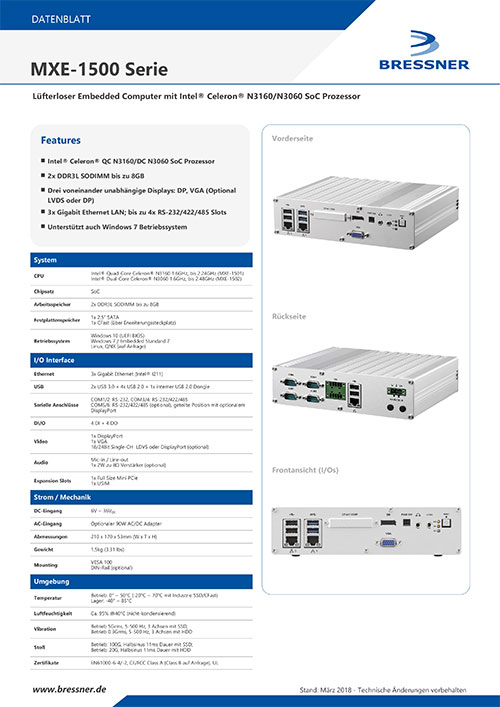

MXE-1500 series specifications

CPUs: Intel^® Quad-Core Celeron^® N3160 1,6 GHz, up to 2,24 GHz (for MXE-1501) or Intel^® Dual-Core Celeron^® N3060 1,6 GHz, up to 2,48 GHz (for MXE-1502)
Memory 2 x DDR3L SODIMM up to 8 GB
2.5″-SATA hard drive storage and CFast
Connect up to three independent displays
Operating temperature: 0° to 50 °C
Wide operating temperature: -20° to 70°C (with industrial SSD/CFast)
Dimensions: 210 x 170 x 53 mm (W x D x H)
Certificates EN61000-6-4/-2, CE/FCC Class A (Class B on request), UL

Find out more now!

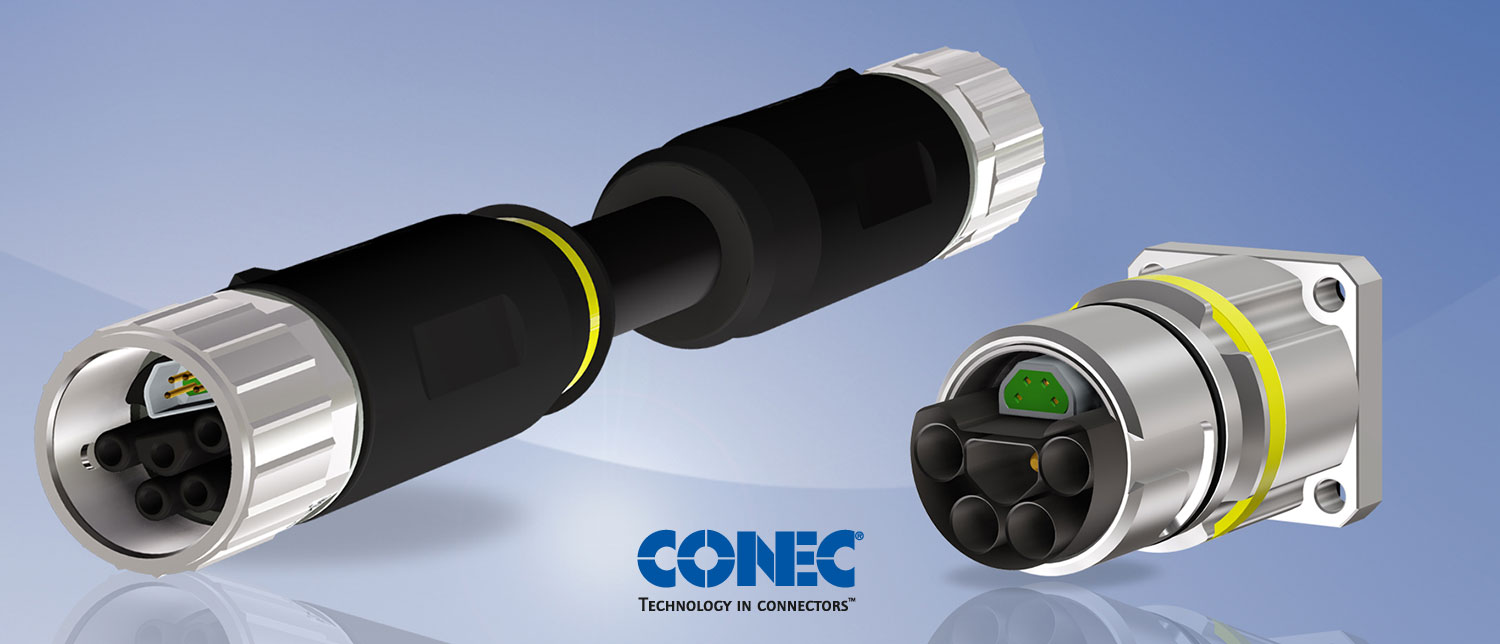

CONEC supplements SuperCon hybrid connector series

CONEC supplements the existing sizes B12 and B17 of the SuperCon series by sockets and overmolded connectors in size B23. While the number of poles and the permitted voltages vary depending on to the size, the 360° shielded data core is always the same and is designed for Industrial Ethernet Cat 5 with wire cross section AWG22.

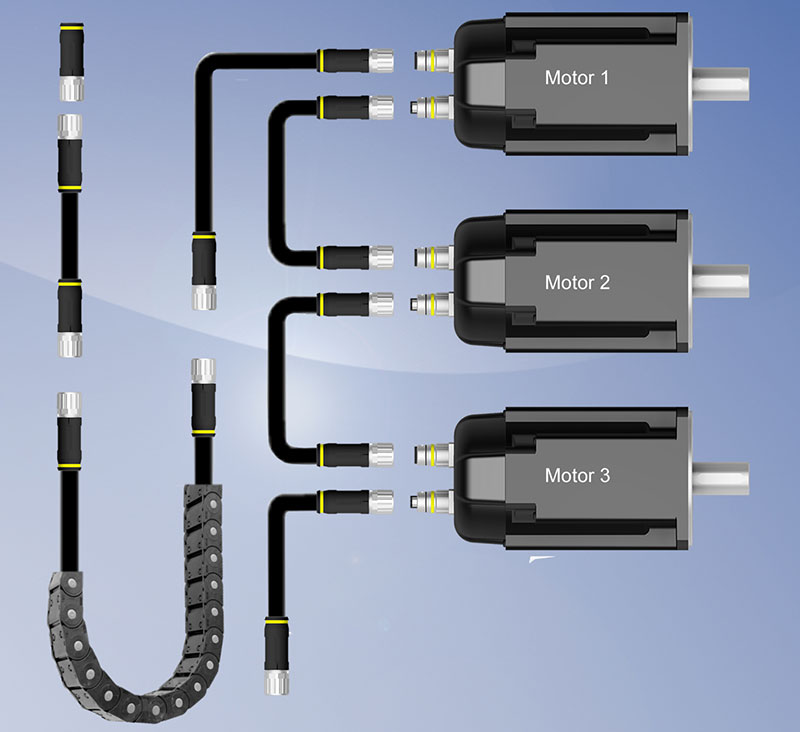

With the decentralised approach, many consumers are linked with standard connecting cables via a daisy chain

Locking is secured with a bayonet fastener, so that a time-consuming screw connection by means of a torque wrench is no longer necessary. A secure connection and the IP67 protection class are achieved by a quarter turn. It is important to note that the bayonet can only be locked when the hybrid connectors are completely plugged in. This greatly reduces the risk of failure due to connectors that are not completely plugged in or screwed together in a defined manner. The hybrid connector B23 is available with two pole number specifications, starting with a 5-pos. (4+PE) variant with a current rating of 32 A/30°C and a rated voltage of 630 V AC, where a wire cross-section up to AWG12/4.0 mm² can be used (available now). Variants will be available late summer. ▪ ds

Find out more now!
