Better visualization with ULT‑processors

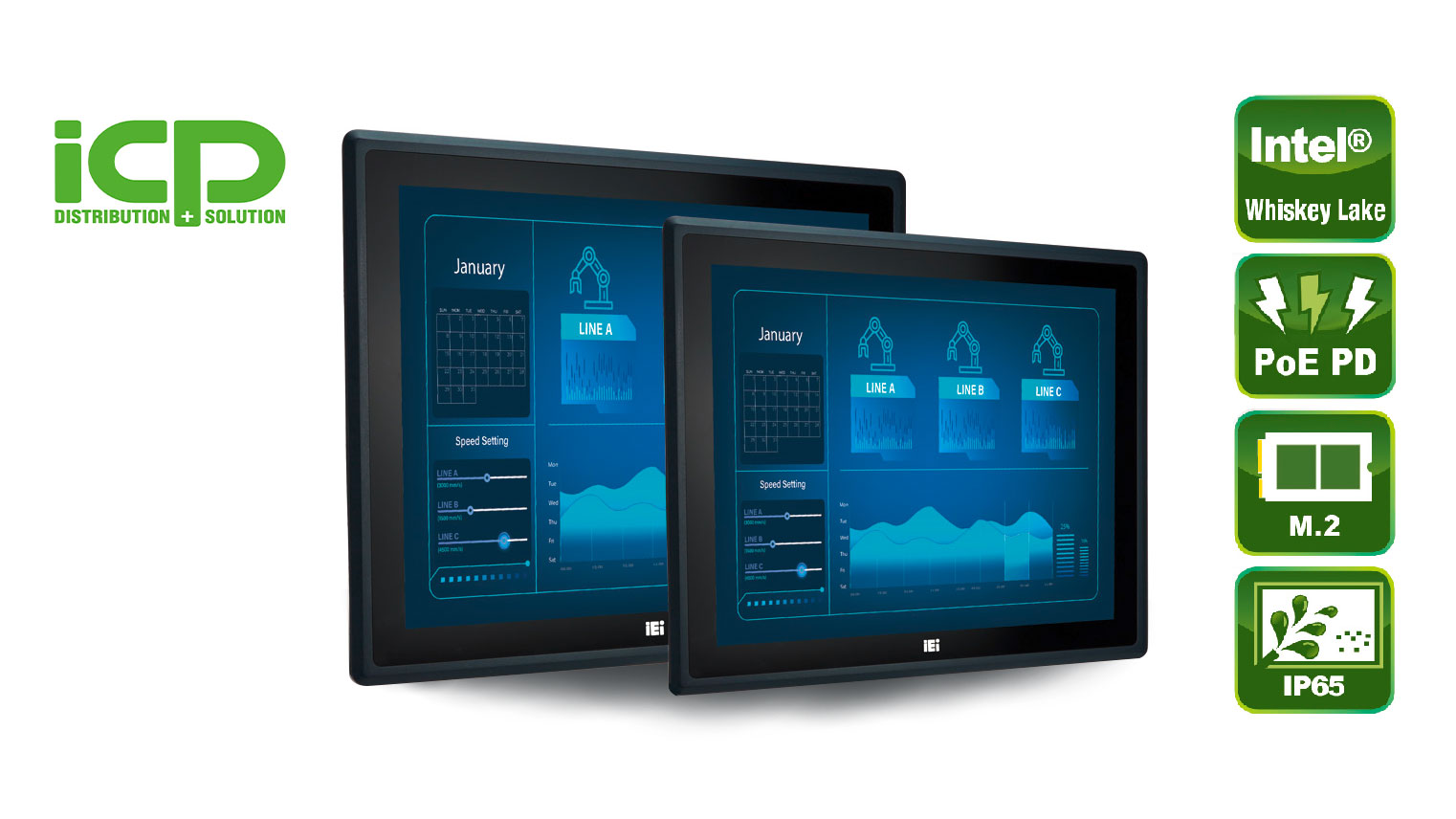

Dirt, dust, moisture and splash water are not uncommon in industrial environments. Panel PC systems that operate in this environment must offer IP protected fronts as well as be able to guarantee low-maintenance operation. The new industrial Panel PC series PPC-F-ULT5 from ICP Germany offers these advantages and forms the basis for powerful HMI solutions.
The aluminum front panel offers IP65 protection and the Panel PC system is fanless. In addition to the two proven 15" and 17" display sizes, ICP also offers 16:9 widescreen display sizes in 15.6" and 18.5". All displays are equipped with a 10-finger projected capacitive multitouch that also features an anti-reflective coating.
Both an Intel® Core™ i5-8365U with a maximum clock frequency of 4.1GHz and an Intel® Celeron® 4305UE with a clock frequency of 2 GHz are available as the computing unit.

Supporting common interfaces

The PPC-F-ULT5 can be equipped with up to 32 GB DDR4 memory. In addition to the 2.5" SATA drive bay, an NGFF NVMe M.2 slot is available for storage media. Furthermore, the PPC-F-ULT5 basic configuration offers two Intel I211 and one I219 LAN port, four USB 3.2 Gen 2 with 10 Gbps, an additional HDMI output, one RS-232/422/485 and one RS-232 interface. The PPCF-ULT5 series is rated at a voltage input of 12 VDC and can operate in a temperature range of -10 °C to +50 °C.
Optionally the PPC-F-ULT5 series can be extended by an internal PoE power supply. Panel Mount, Rack Mount and VESA Mount are available as mounting options for the PPC-F series. ICP delivers the PPC-F-ULT5 with industrial RAM and storage media as a ready-to-use system on request. ds
