Industrial PC for challenging tasks

Spectra Rack 1U 500 R680:
19-inch 1U workstation – high-performant and secure

Today's industrial PCs have to offer the required performance on the one side and on the other side they have to meet the highest security requirements and provide a fast connection to the machine and the network.
Industrial PC
All-round view

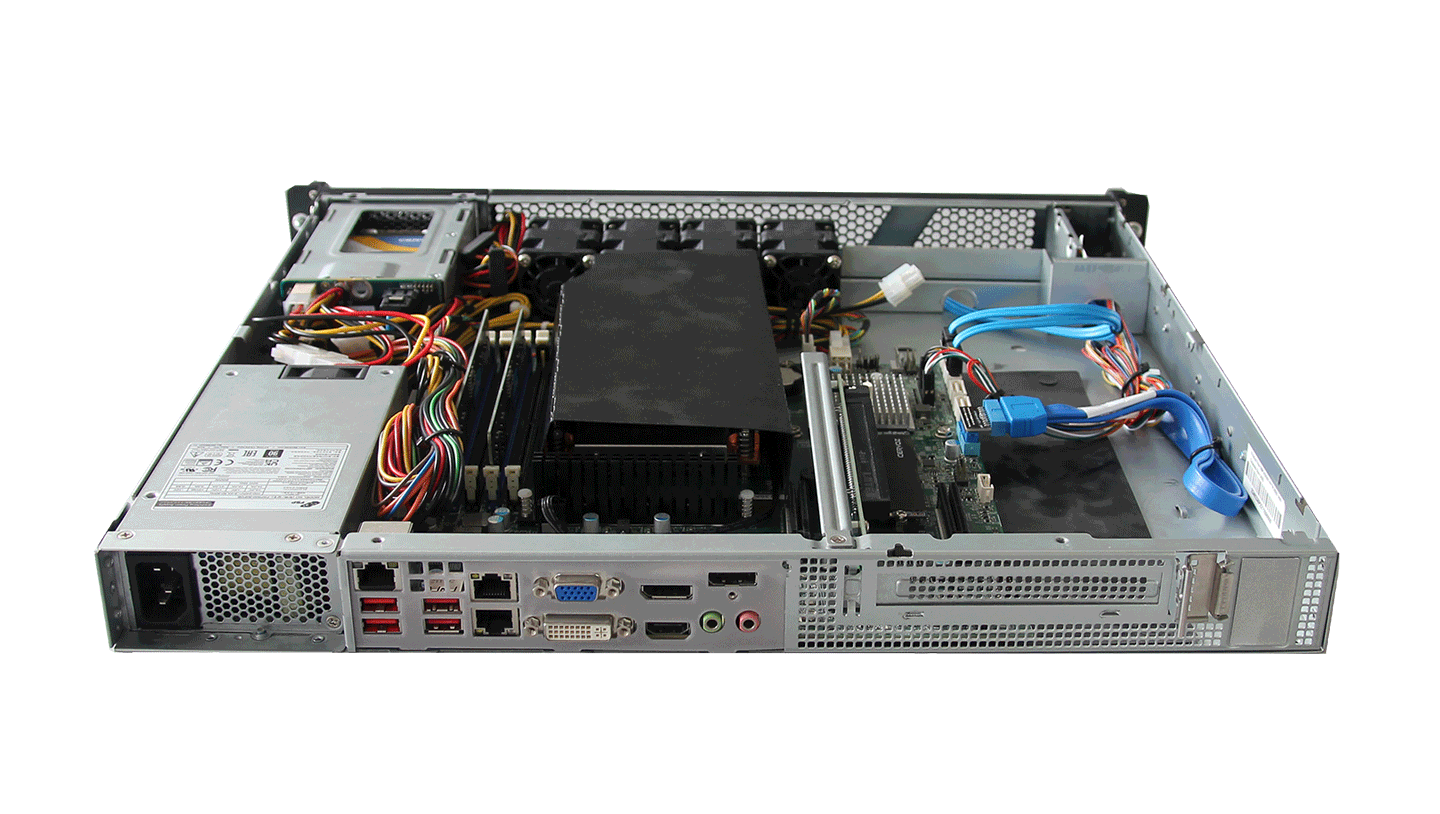

With the Spectra Rack 1U 500 R680, Spectra offers a state-of-the-art solution for applications in industrial environments.

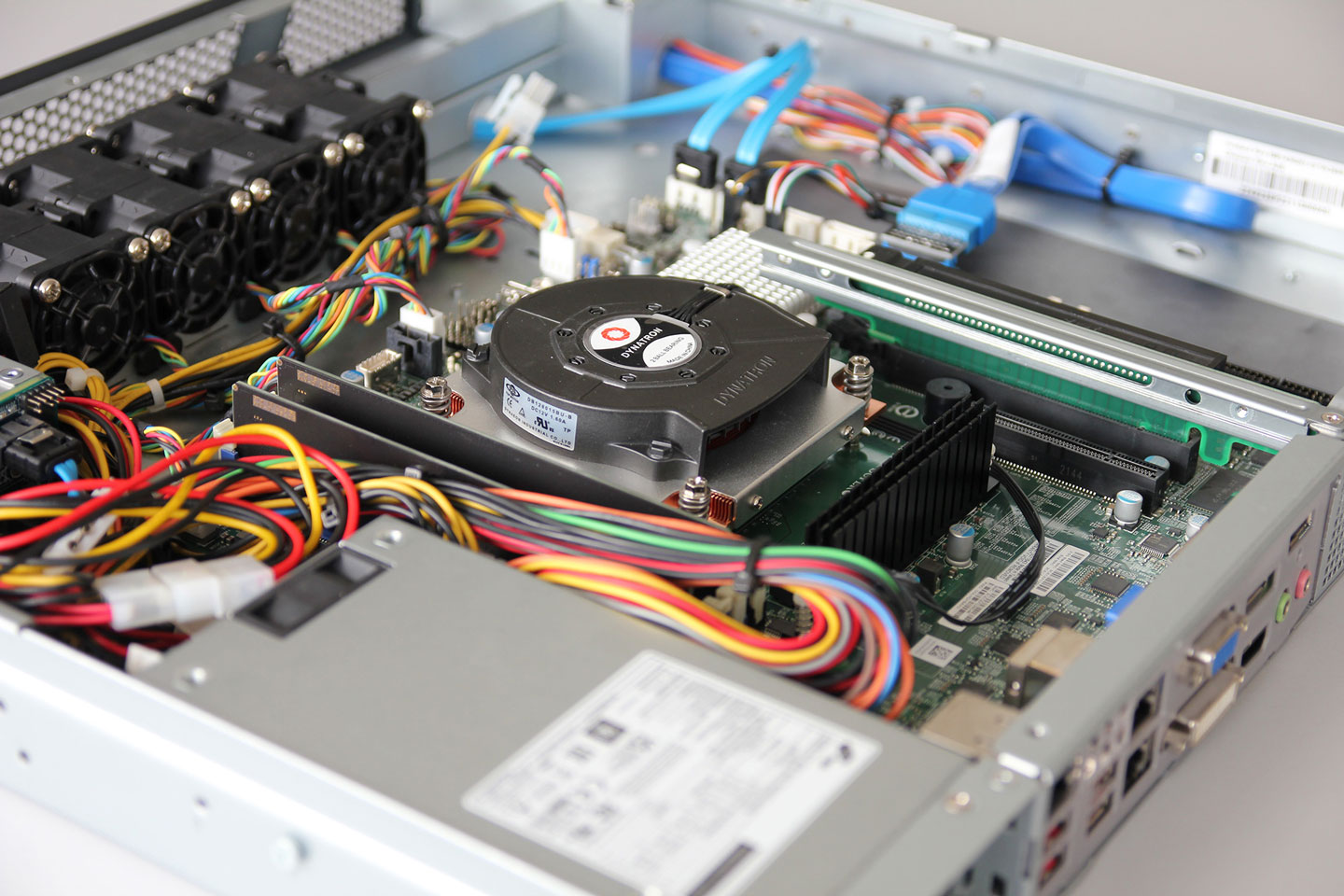

The 19-inch 1U workstation is built on a powerful Intel® Core™ i5-12500TE processor from the Alder Lake family with six cores and a clock frequency of 1.9 to 4.3 GHz. The TPD is 35 W and an innovative cooling concept with four fans and an integrated airflow duct enables operation at temperatures from 0 to 60 °C.

Power for AI

For modern AI applications, the processor offers the Intel® Gaussian & Neural Accelerator and Intel® Deep Learning Boost function units, which allow appropriately programmed applications to work faster. The performance is supported by 16 GB RAM and a super-fast NVMe M.2 SSD with 256 GB mass storage. A removable frame with two 2.5-inch slots is also available for expanding the storage capacity. The new processor generation supports numerous security features such as Intel® Thread Detection for detecting and combating malware or Intel® Total Memory Encryption with the task of encrypting data between the memory controller and the RAM and thus making the unintentional reading of data significantly more difficult.

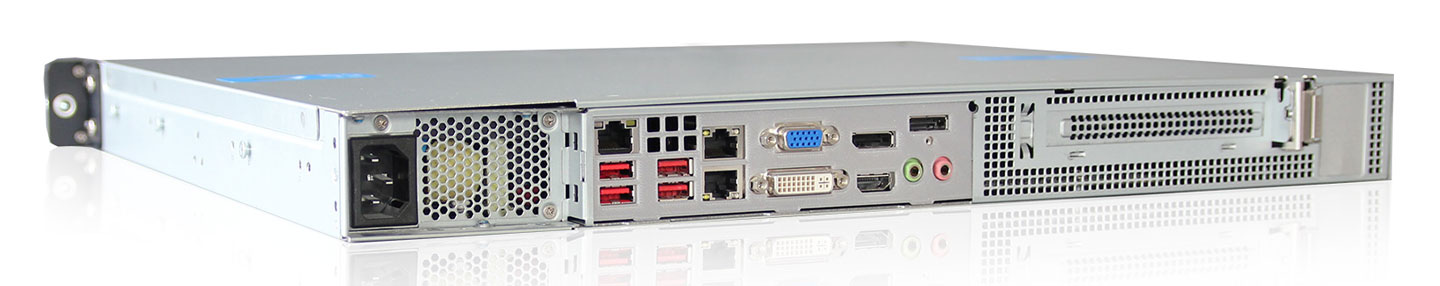

The integrated Intel® UHD Graphics 770 is a guarantee for excellent GPU performance. Four independent displays in 4K quality are supported. In addition, the PCIe(x16) slot can be used for another graphics card, for example. Two 2.5 Gigabit LAN and four USB3.2 ports are available for fast data transfer. ds
