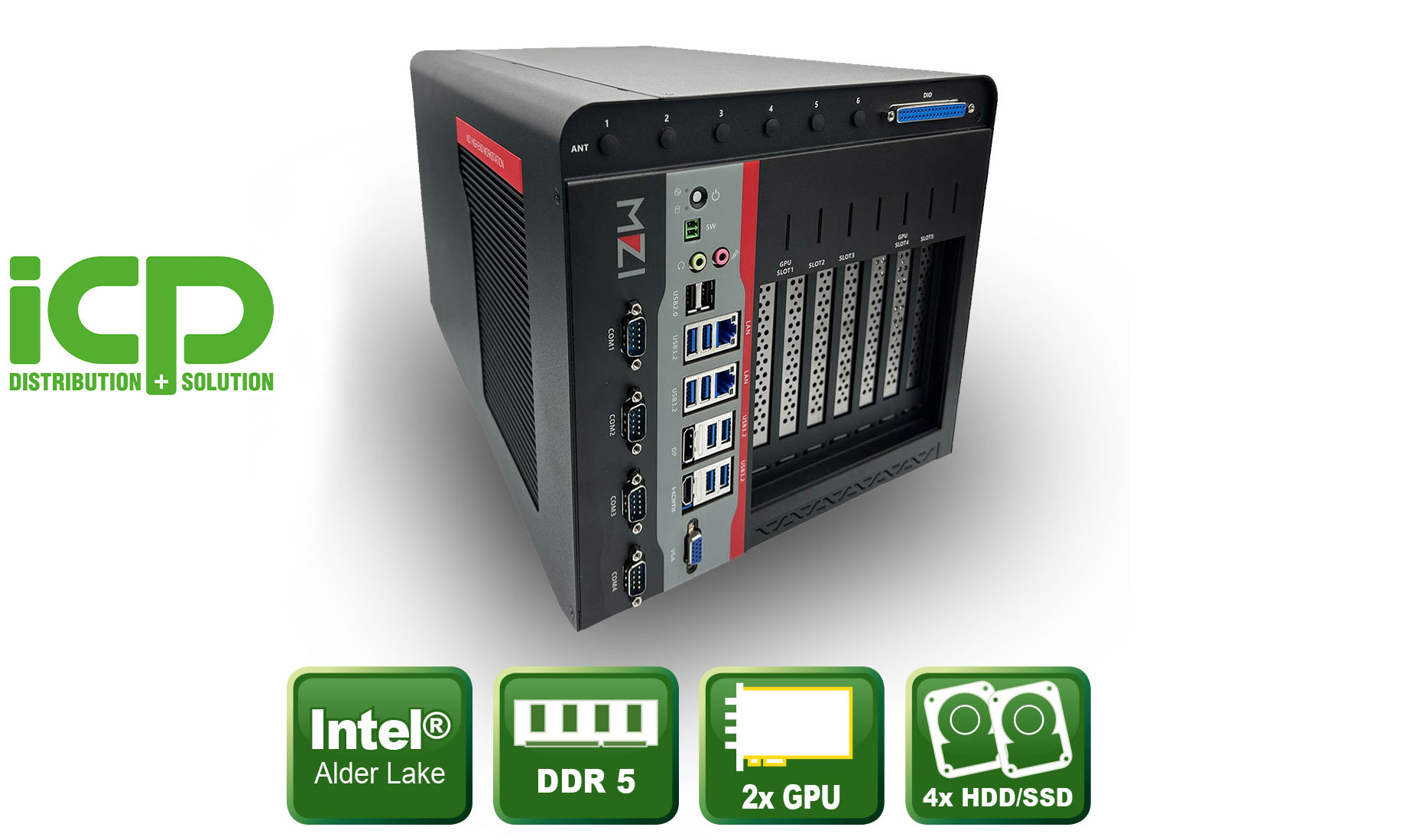

With the Intel^® R680E chipset, high-performance CPUs from the Intel^® Alder Lake S - Xeon and Core i series with a power of up to 125 W can be installed. The RAM can be expanded up to 64 GB with two 262-pin SO-DIMM DDR5 RAM with 4800 MHz. The following slots are available for mass storage: two hot swappable 2.5-inch SSD/HDD trays, two hot swappable 3.5-inch SSD/HDD trays, two mSATA slots, two M.2 slots and one CFast slot. Five PCIe slots with partially selectable lanes are available: x16, x8, x4 and x1. A fast transfer with up to 2.5 Gbit in the network is enabled by the Intel^® I225-LM as well as the Intel^® I225-V network controller.
For simple graphics applications, an Intel^® UHD unit with one HDMI 1.4, one DisplayPort and one VGA connector each is available. On the front of the case are four USB3.2 Gen2, four USB3.2 Gen1 and two USB 2.0 ports.
The case itself has a size of 264 x 415 x 245 mm (WDH). The MZ1-10ADP can operate with an input voltage of 9 to 48 V, depending on the CPU, at temperatures from -40 °C to 60 °C. ICP Germany delivers the MZ1-10ADP as a ready-to-use system with corresponding CPU, memory and GPU or Hailo AI accelerator. ▪ ds
