Pocket-Sized Powerhouse

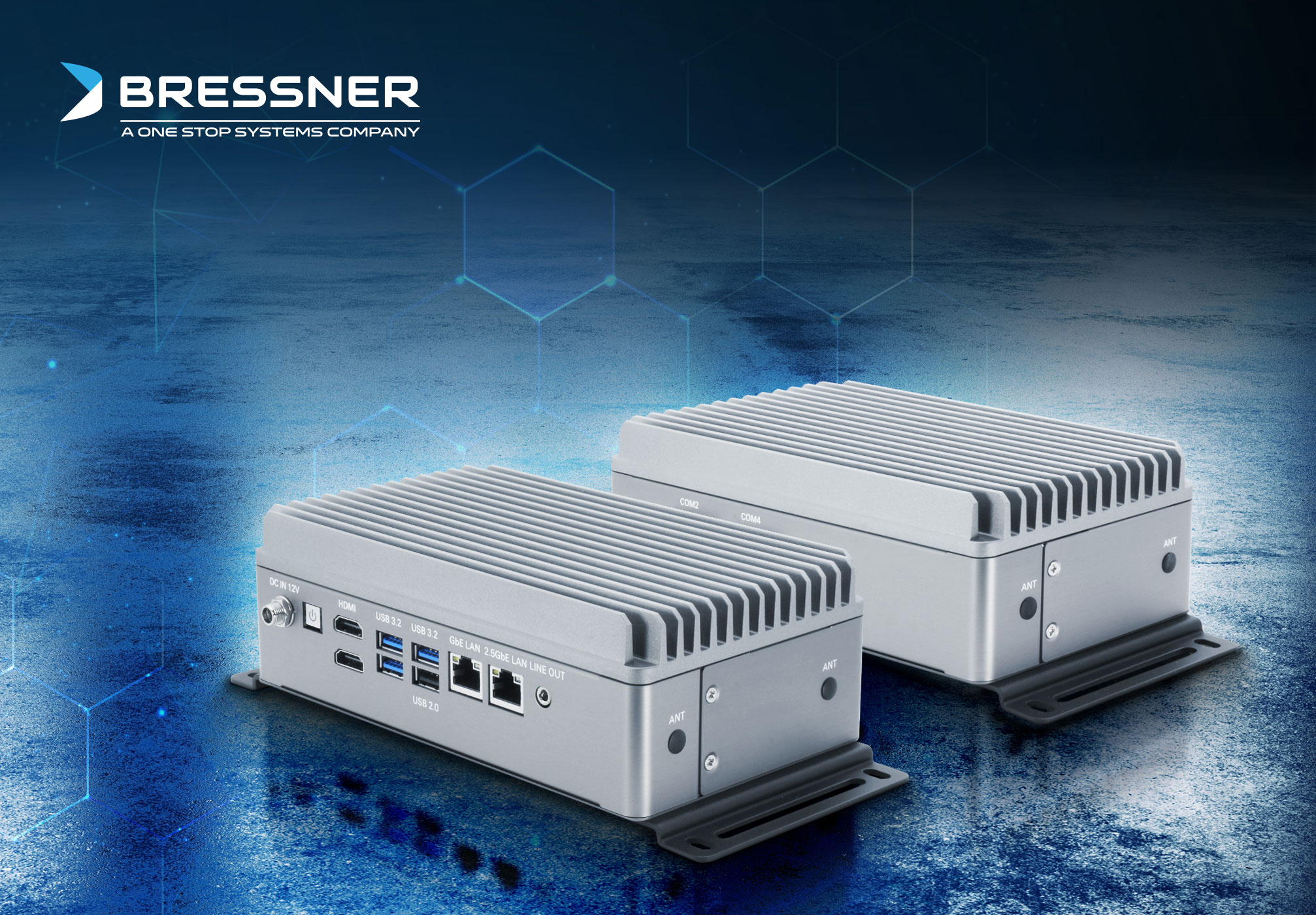

Innovation for limited spaces: fanless embedded PC BOXER‑6451-ADP

BRESSNER Technology, a leading provider of embedded solutions, unveils the BOXER-6451-ADP, a fanless embedded PC specifically designed for space-constrained environments in collaboration by partnered manufacturer AAEON Inc. With its exceptional performance and compact size, this embedded PC offers the ideal solution for applications in the fields of AMR (Autonomous Mobile Robot), kiosk, and intelligent manufacturing.
Equipped with 12th generation Intel® Core™ processors, the BOXER-6451-ADP delivers outstanding computing power. This fanless embedded PC allows for increased workloads through its innovative cooling structure, ensuring efficient heat dissipation. The traditional tube-shaped heat pipe has been flattened to enlarge the heat transfer surface area and accelerate heat dissipation.
28
JUNE 2023
Industrial PC
Control from robot arm possible: Rear side BOXER‑6451-ADP
As a result, the fanless BOXER-6451-ADP can handle higher workloads without the risk of overheating.

Small enough for
installation in mobile robots

In addition to its slim chassis design, the BOXER-6451-ADP features a variety of input and output ports that enable fast data transmission.
With four COM ports supporting RS-232/422/485, three USB 3.2 ports with 10 Gbps, and a 2.5 GbE LAN port, the BOXER-6451-ADP offers high-speed peripheral connectivity that drives AMR applications forward. CPU-derived technologies such as Intel® IPU 6.0 and Intel® DL Boost further optimize performance.

Expandable
Embedded PC

Additionally, the BOXER-6451-ADP provides more expansions for the BOXER-6400 series. With an M.2 2230 E-Key, M.2 3052 B-Key, and M.2 2280 M-Key, it allows users to easily integrate 5G, Wi-Fi, or NVMe functionality into their projects.
This makes the BOXER-6451-ADP highly versatile and suitable for use as an AI-IoT gateway controller, robot arm control, and much more.

Powerful processor

Measuring only 190 mm x 111 mm x 63.5 mm, the BOXER-6451-ADP delivers impressive performance in a compact housing. It is equipped with up to 10 cores and 12 threads of the 12th generation Intel® Core™ processors, making it suitable for deployment in space-constrained environments such as kiosks and charging stations.
"With the BOXER-6451-ADP, we provide a high-performance solution for space-constrained environments in industrial automation," says Gabor Paxian, Senior Account Manager at BRESSNER Technology. "This fanless embedded PC not only offers impressive computing power but also features a sophisticated cooling structure and moderate connectivity options. This allows our customers to make their applications more efficient and reliable." ▪ ds
