The connector series M12x1 x-coded includes socket connector versions incl.
SMT and THR variants, a field attachable connector with crimp termination as
well as overmoulded axial and angled connectors. Therefore, it is possible to
completely map the transmission path of a device installed in the field and the
associated processing unit using CONEC connectors.

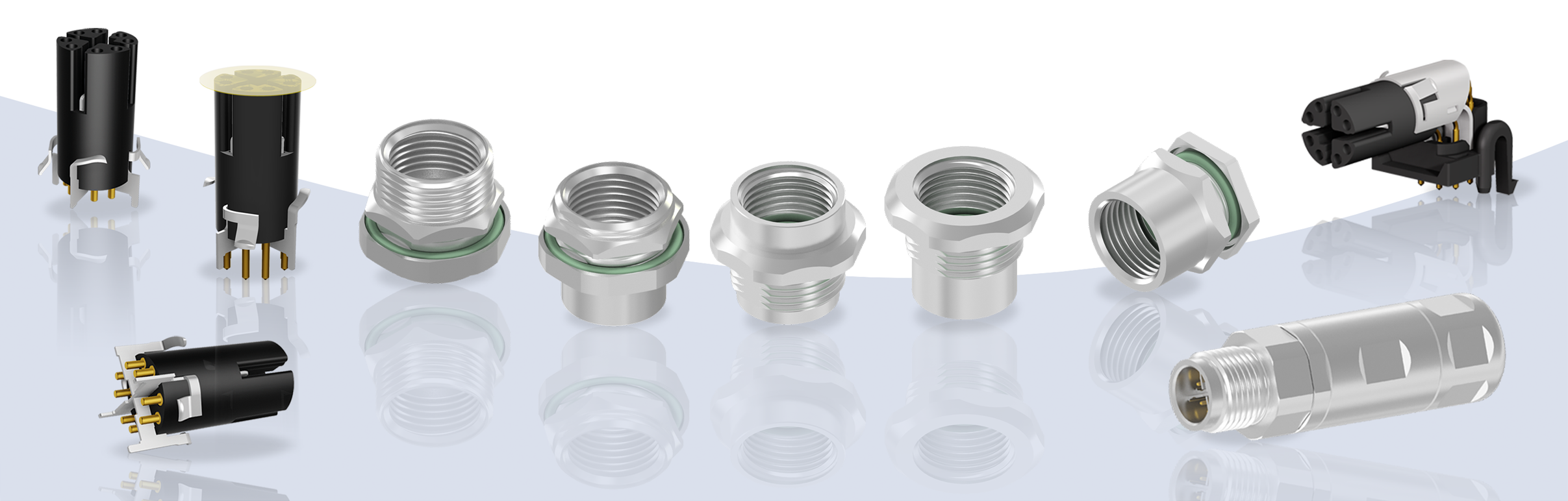

Socket connectors, overmoulded, angled two-piece and SMT/THR
In the product area of socket connectors, axial SMT and THR variants are available in addition
to angled socket connectors/insulation bodies with print connection and an overmoulded
version with cable.
With the SMT/THR variants, the user can mount the board equipped
with the insulation body in different socket geometries. CONEC sockets
are suitable for combined mounting and ideal for designs where the M12x1
thread of the housing is directly moulded on. The dual and symmetrical arrangement
of the contact springs refines the previous shield concepts through an axial and radial
connection to the socket side in order to achieve a of low-resistance shield transmission.
The radial shielding concept can compensate for a considerable tolerance range during installation.
Electromagnetic separation of the four wire pairs according to CAT 6A is 100 percent.
Automatic assembly of the connector is possible despite the spring elements.
As standard,
the degree of protection is IP67 when mounted to the housing and IP20 in the mating face
when not screwed in.

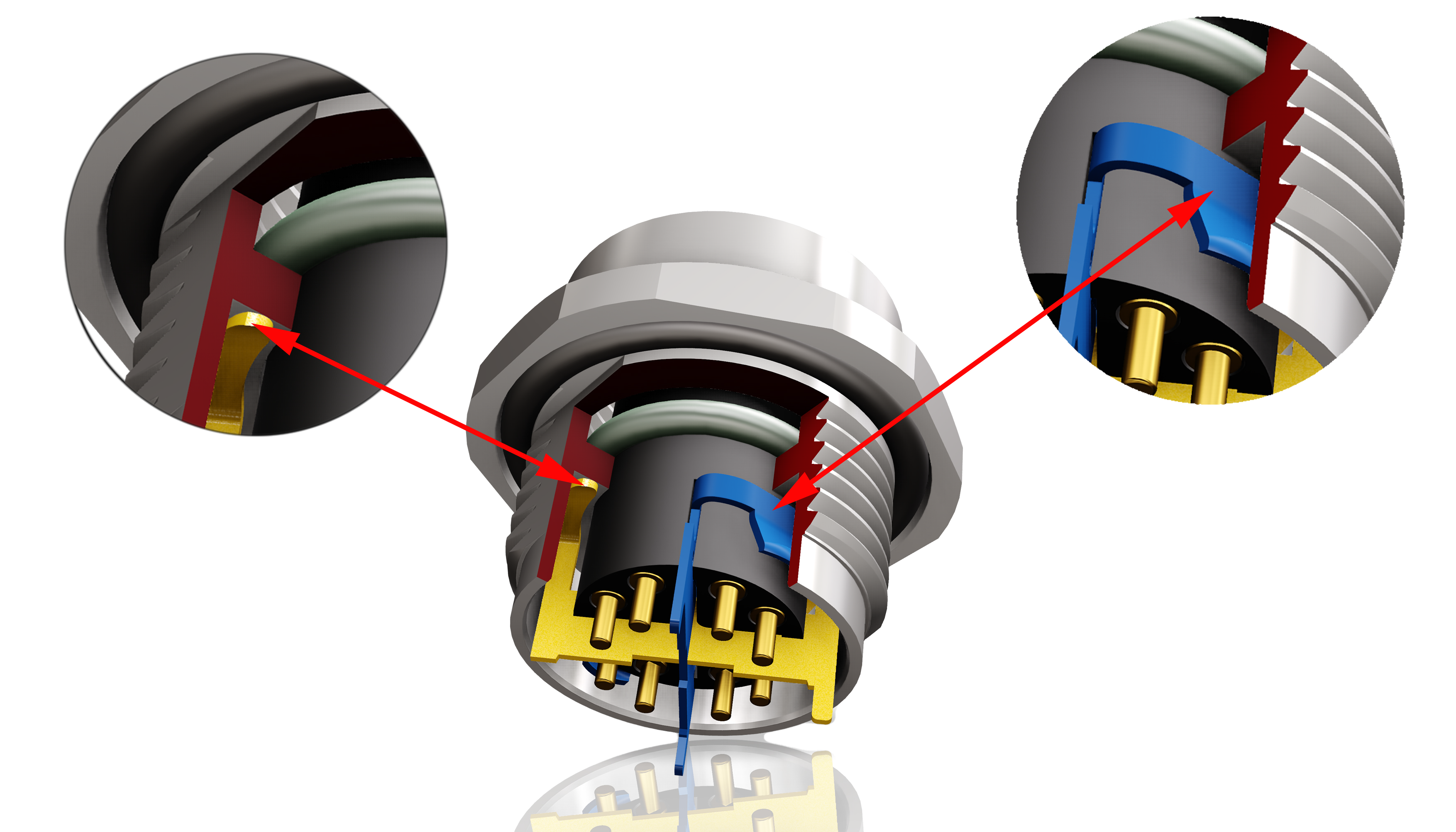

Sectional drawing of a connector from the series
M12x1 x-coded
Connectors field attachable
The CONEC M12x1 connector with crimp termination
can flexibly accommodate wire cross-sections from AWG28 to AWG22. The X-coded, field attachable
connectors are protected against loosening due to vibrations during operation by means of tactile
vibration protection. The connector housing is completely made of metal and thus fully shielded.
The connectors are designed for cable diameters from 4.5 to 8.3 mm and the shield connection is 360°
on the full circumference. The field attachable connectors are tested according to railway approval
DIN EN 45545-2:2016 R24 (flammability) and IEC 61373:2010-10 (shock/vibration).

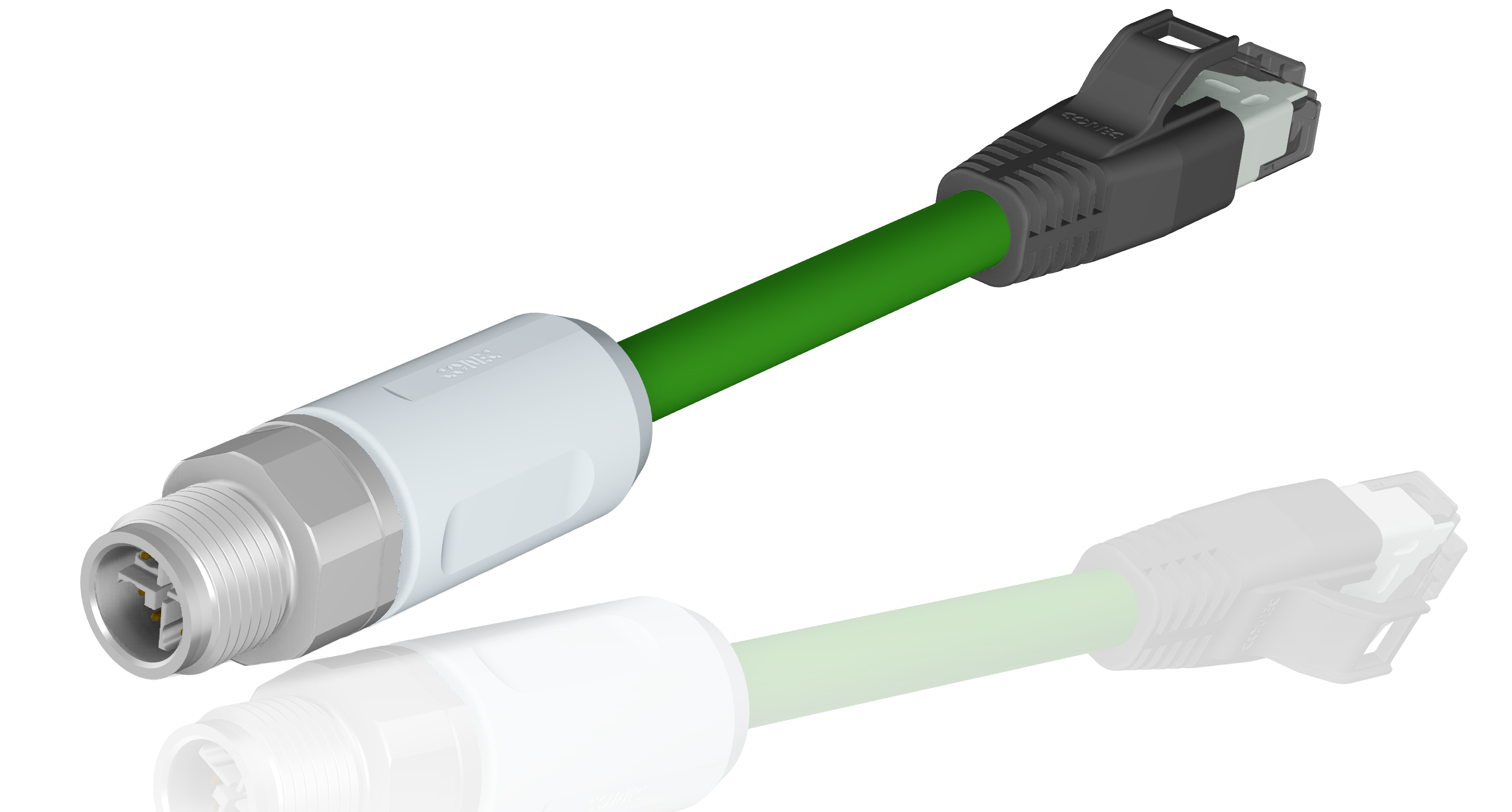

In addition to pure X-coded axial and angled connection cables,
a M12x1 - RJ45 overmoulded variant is also available
Connectors overmoulded
CONEC currently offers various pre-assembled cable lengths of the processed
PUR cable with strand cross-sections 4x2xAWG26. The UL-listed cable has an S/FTP
twisted pair construction and is suitable for temperatures in dynamic and static
environments from -40 °C to +80 °C. With the X-coded connectors in compact design,
CONEC meets all requirements according to IEC 61076-2-109 and with regard to electromagnetic
compatibility according to CAT 6 A standard up to 500 MHz. When mated, the connector complies
with protection class IP67.
