Thanks to its integrated multi-axis motion control kernel, it is particularly suitable for controlling complex motion sequences. The powerful quad-core Cortex-A53 processor, together with the real-time Linux operating system and the built-in soft PLC, ensures fast and real-time-capable behavior. This makes it possible to synchronously update up to 128 slaves, including 16 servo and stepper motors, within a cycle time of 500 microseconds.
The integrated web server provides the necessary support for configuration and diagnostic of EtherCAT networks and testing motion control functions. The IEC-61131-based programming software ensures a high level of compatibility and reusability, e. g. when transferring existing code.

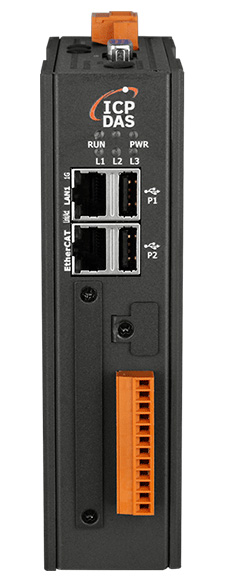

With its narrow 4.2 cm width, the EMP-2848M fits into the smallest control cabinet. A robust metal housing and operation at -25 °C to +75 °C underline its industrial character. ▪ ds

IO Module EMP-2848
