The easy way to Smart HMI

Touchpanel with Object Graphics for installation

Modifying objects, rotating, grouping and zooming the screen can now all be done using the new intelligent display modules. The new EA uniTFT product family was designed by ELECTRONIC ASSEMBLY. Design engineers and systems integrators benefit from considerably shorter development times and gain significantly more flexibility. As a result, the modules open up a whole range of designing Smart HMIs.
HMI – Display
Free design tool for creating screen layouts
The new EA uniTFT070 makes it remarkably easy to combine, modify and adapt a great number of objects to the individual requirements. All objects can be positioned, rotated and zoomed in on as required on the screen and attributes such as transparency and color assigned, while there’s also the option of linking objects to actions.

Style sheets facilitate consistent design

It couldn't be easier for design engineers needing to create keys, dials and other control elements and assign specific functions to them. And that's not all: with the use of style sheets, it is also possible to standardize the look of these elements, thereby creating elegant and user-friendly designs. Tones can also be incorporated for a range of functions from acoustic feedback for operating procedures to entire jingles. The module also allows designers to create fonts to suit their needs, and with Unicode on board the control unit is prepared for all fonts and for marketing worldwide including China.

Object properties
editable with graphic tool

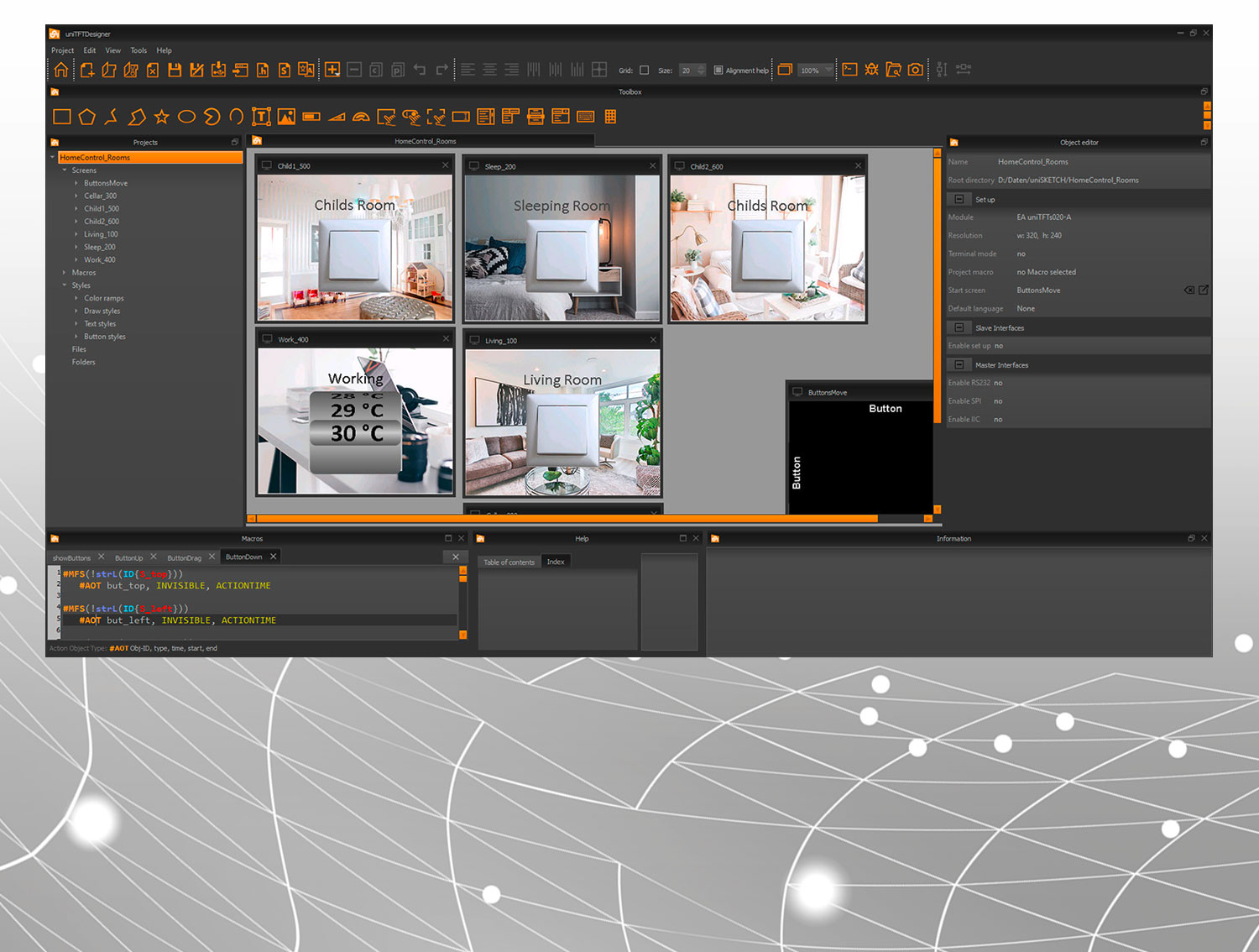

uniTFTDesigner, a specially designed PC graphic tool, enables users to create screen layouts and interfaces, edit the properties of objects and adapt style sheets.

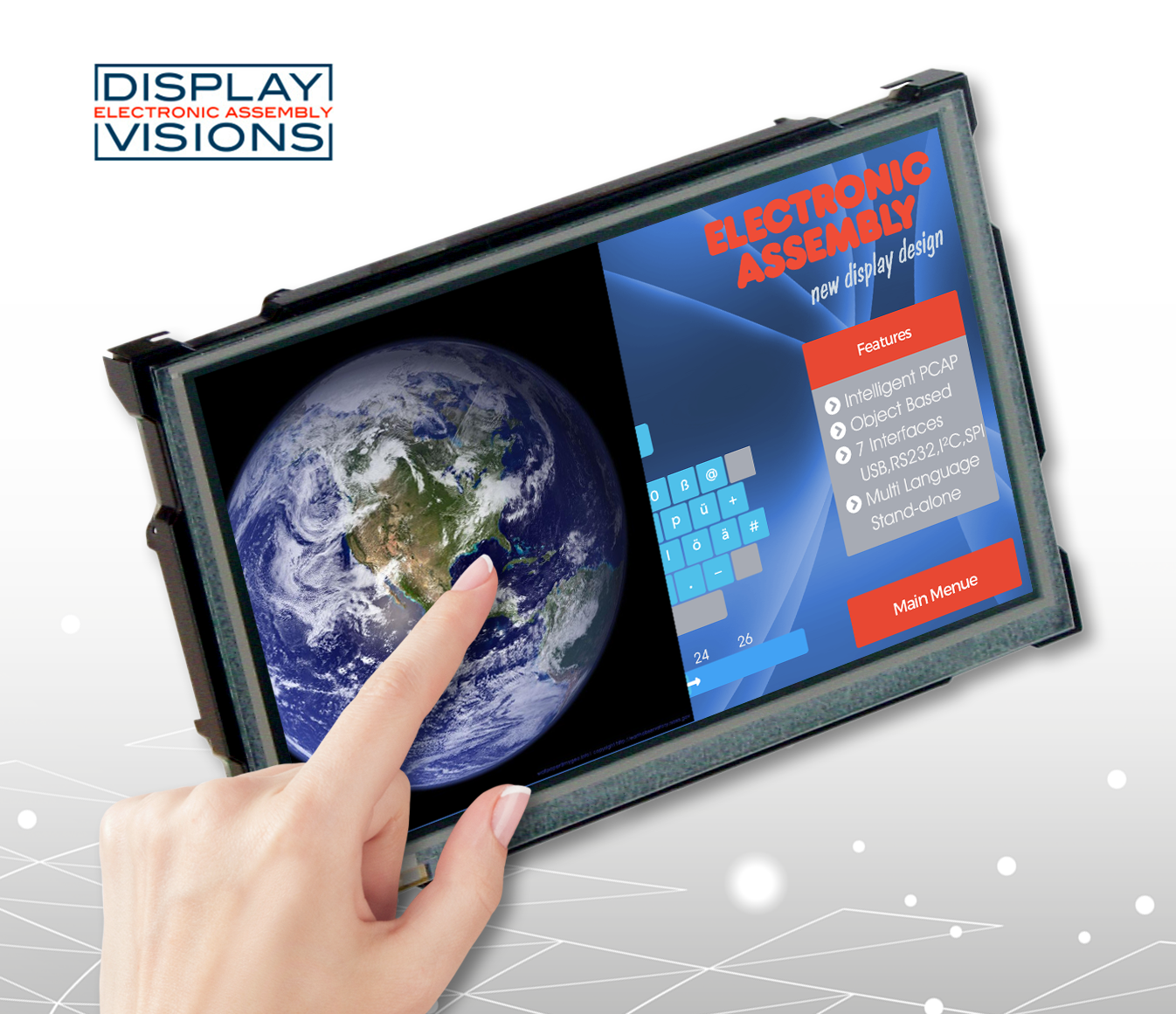

Also available as an option are display modules with a touch panel that use PCAP technology.
Free design tool for creating screen layouts
