Key features

The new FTIR engine offers outstanding spectral performance. With a spectrum response ranging from 1100 nm to 2500 nm, it can generate up to 275 spectra per second, offering the high speed needed for inline industrial applications and analytical testing.

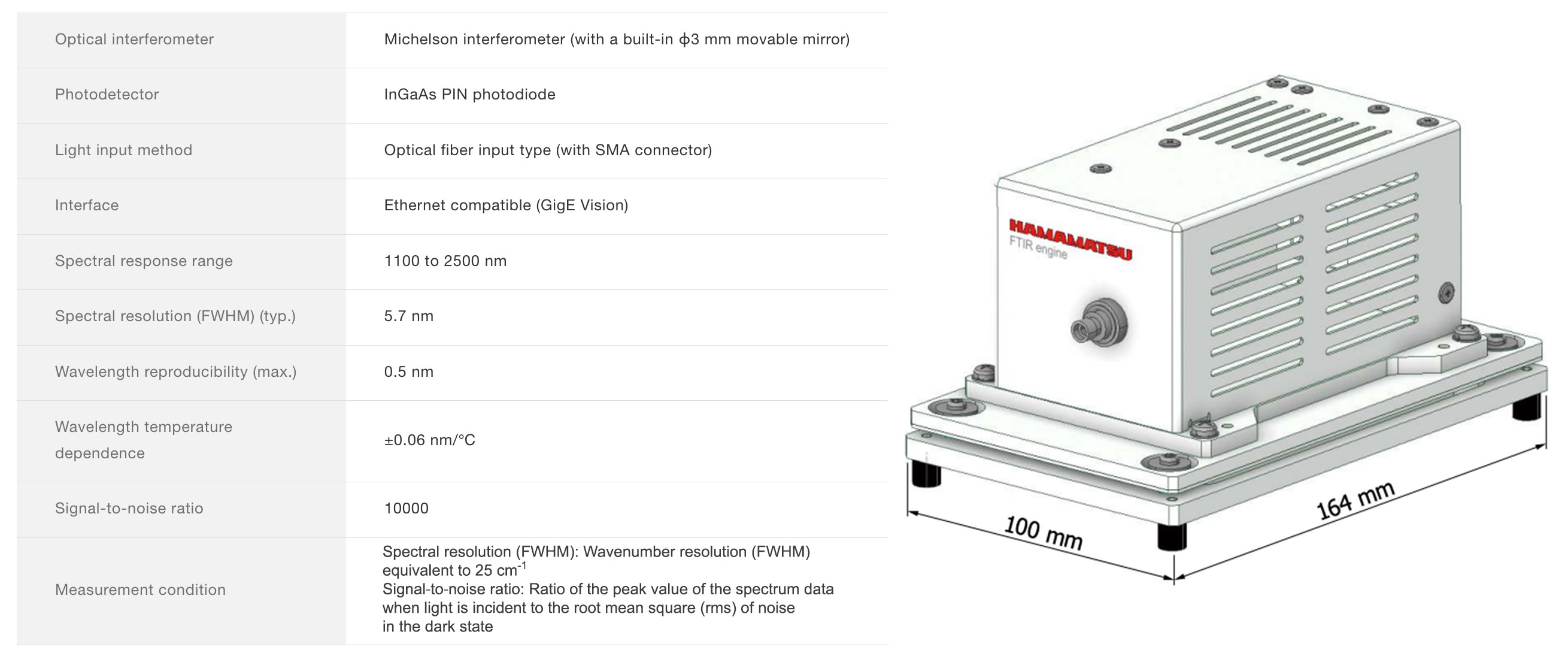

Its compact design, measuring only 68 × 124 × 66 millimeters, makes it easy to incorporate into existing monitoring and analytical equipment.
The C16511-01 offers high versatility. It can analyze samples in liquid, solid, or powder form using diffuse reflection or transmittance measurement.
The spectrometer's seamless connectivity is ensured by an Ethernet interface. It is fully compatible with Windows and Linux operating systems, ensuring easy integration into OEM equipment.
In addition, the evaluation software is included, with functions for setting measurement conditions, data acquisition and visualization. Furthermore, the dynamic link library (DLL) function specifications are disclosed so users can create their original measurement software programs.

Applications

This latest spectrometer is predicted to impact the industrial and academic sectors. Its exceptional sensitivity and high spectral resolution make it ideal for analysis, material testing, and quality control applications where portability and efficiency are crucial.
Areas of application include process analytical technology, material sorting and inspection, sorting and inspection of farm products as well as food, pharmaceutical inspection and plastic sorting. ▪ ds
