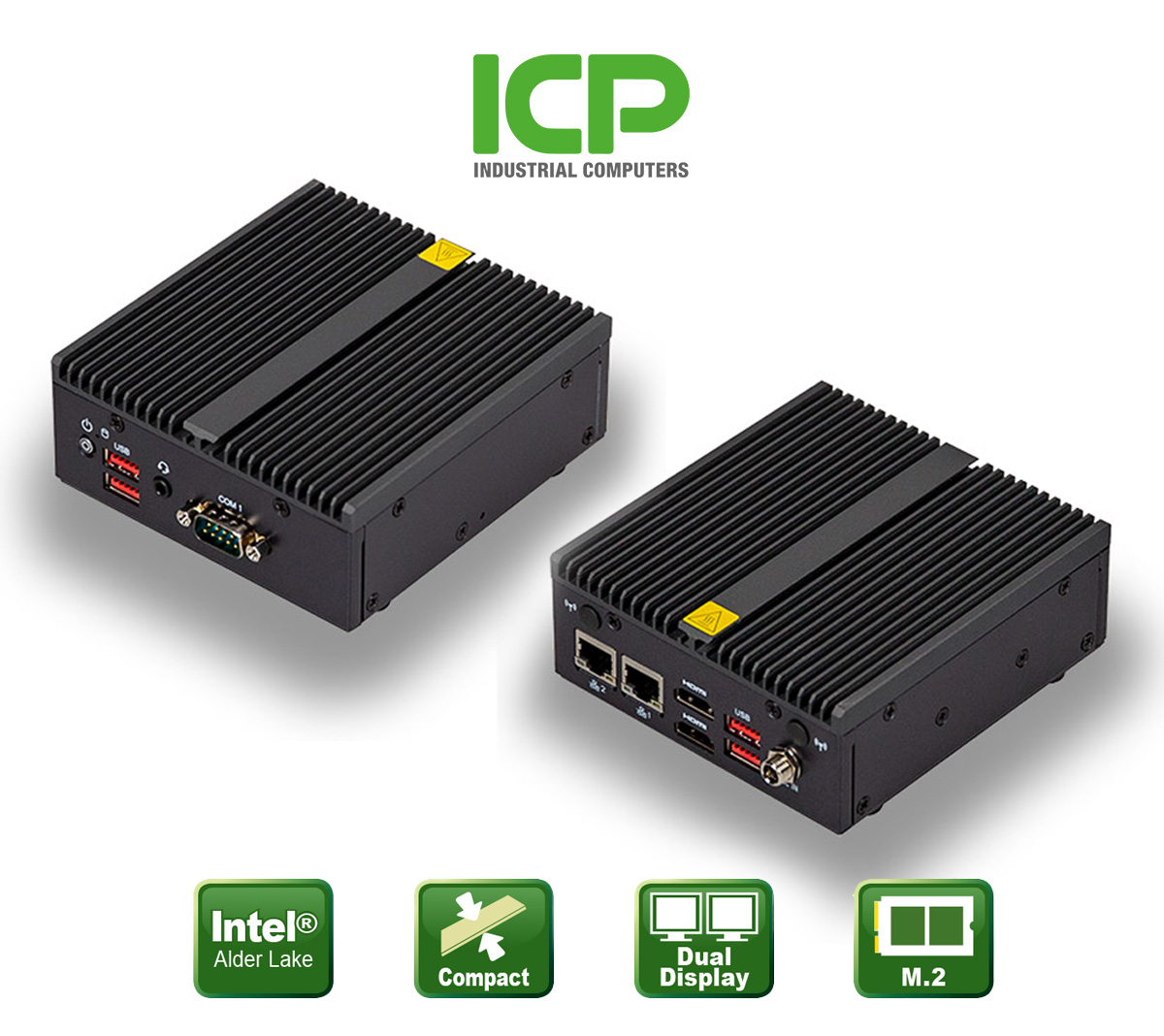

Compact embedded system
for industrial use

Measuring just 118 x 109 x 44 millimeters, the embedded system accommodates a mainboard in the 10 x 10-inch form factor. The Intel^® Alder Lake N97 processor offers sufficient performance for medium-duty tasks with four cores and a maximum turbo frequency of 3.6 GHz. Up to 16 GB of DDR5 memory can be used on the socket.

Low space requirement

The compact housing offers space for dual Gigabit Ethernet ports, dual HDMI, four USB 3.2, an RS-232 interface, and audio jacks. Storage media can be installed on the M.2 2280 slot. An M.2 2230 is also available for Wi-Fi and Bluetooth. The QBiX-ADNAN97-A1 has a voltage input of 12 to 19 V DC and can be operated in a temperature range from 0 °C to 50 °C. On request, ICP Germany can supply the QBiX-ADNAN97-A1 as a ready-to-use system with suitable industrial memory modules and solid-state disks.

Many application areas

The embedded system can be used in factory automation, for example to control, regulate, and monitor machines and systems. Another important area of application is machine vision, where industrial PCs are used for image processing and analysis to increase quality and efficiency in production. Finally, the embedded system can also function as a data logger for recording and storing important data, enabling well-founded analysis and decision-making.
▪ ds

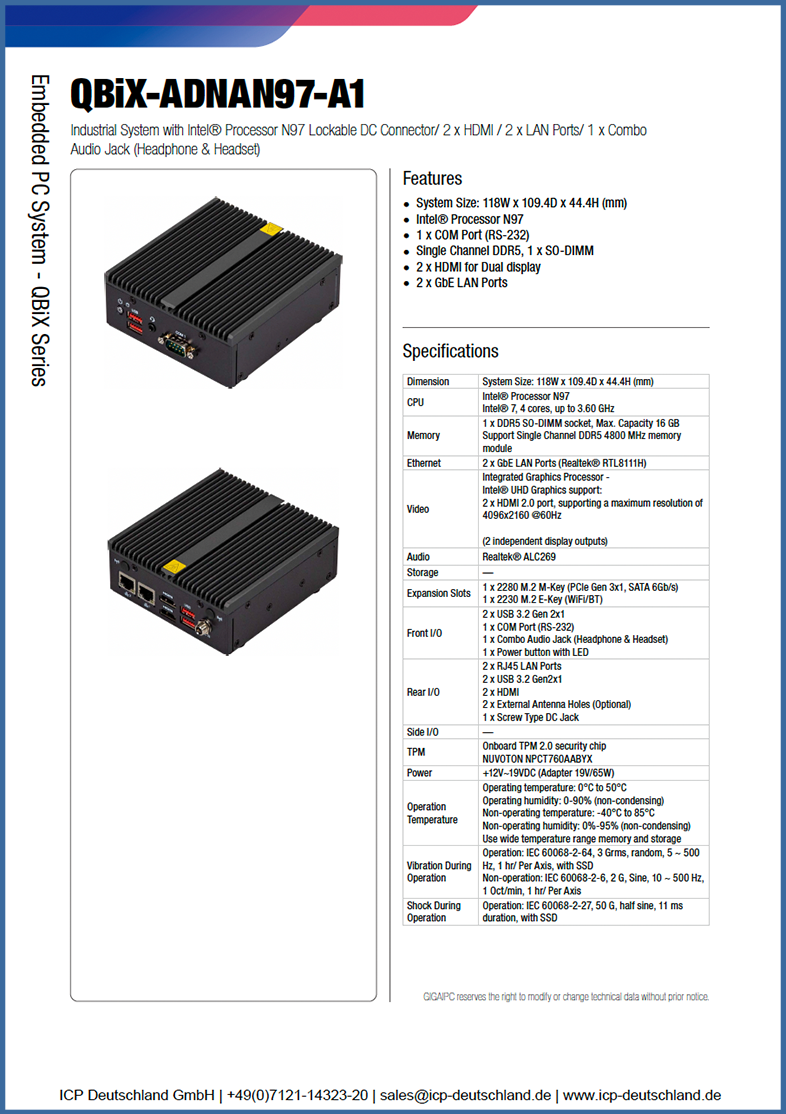

The most important specifications at a glance
