Very easy to customize
Spectra PowerBox 600:
A compact embedded PC for a wide range of applications
Spectra PowerBox 600:
Industrial PC
❮

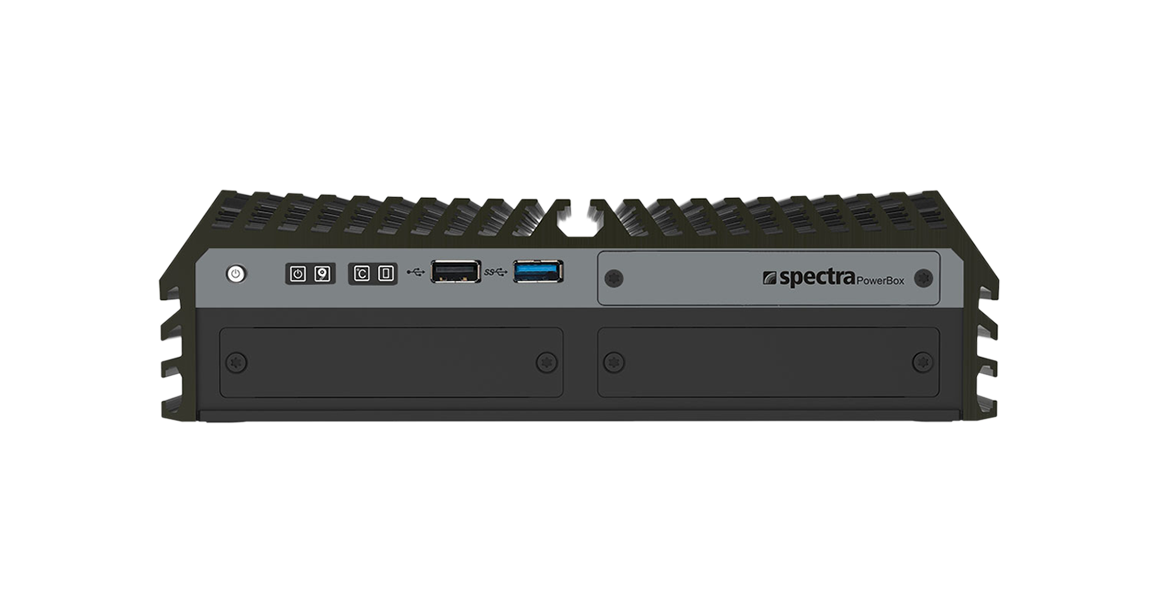

Front

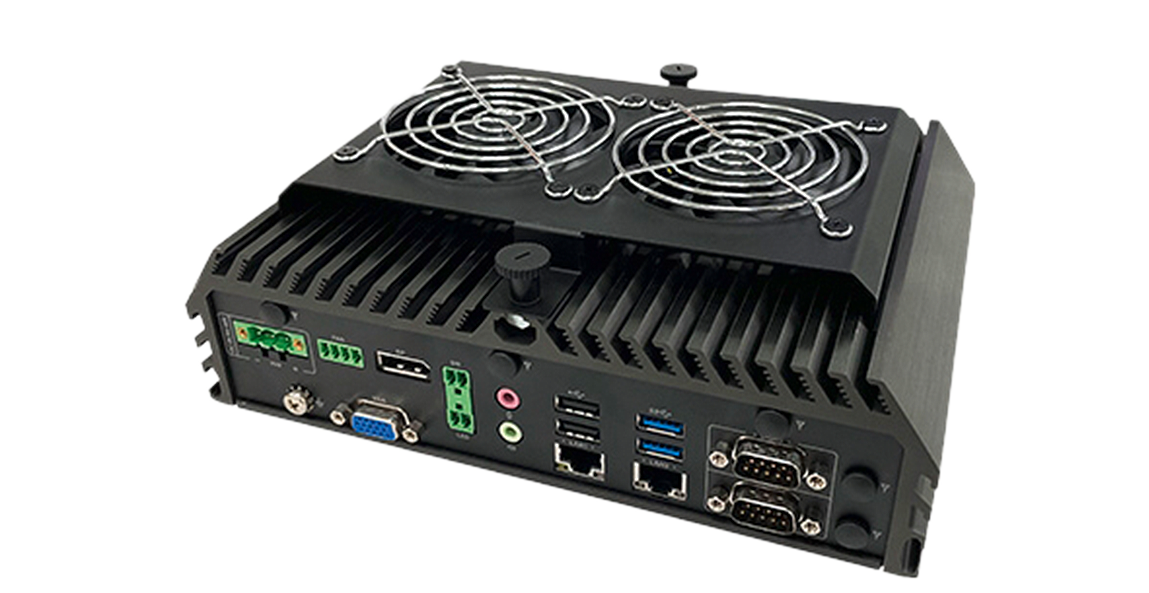

Version with external fan

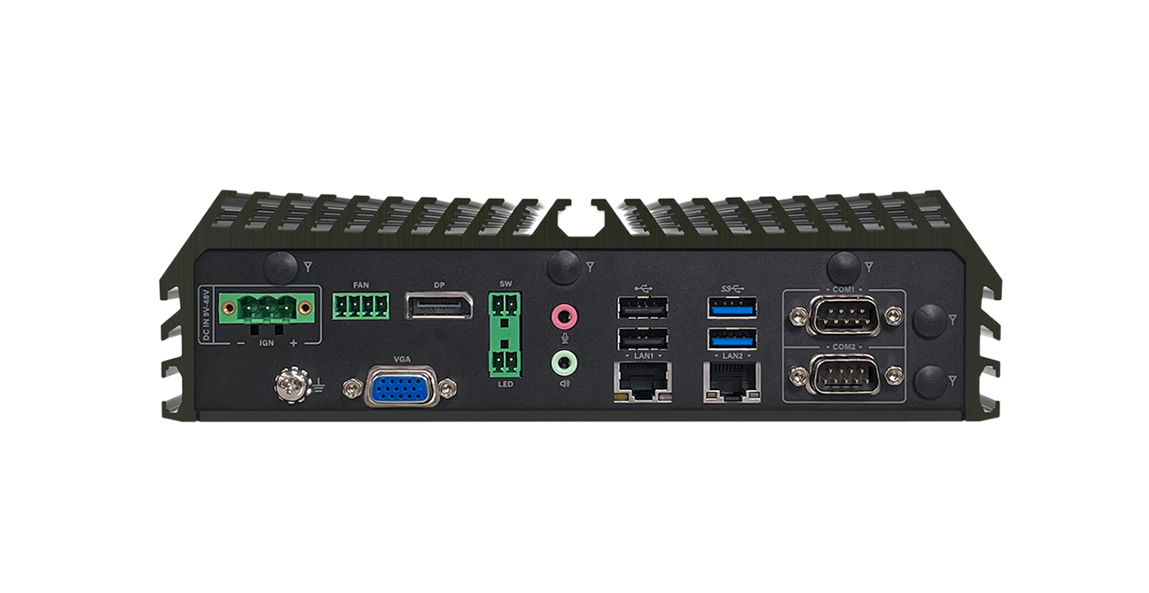

Rear

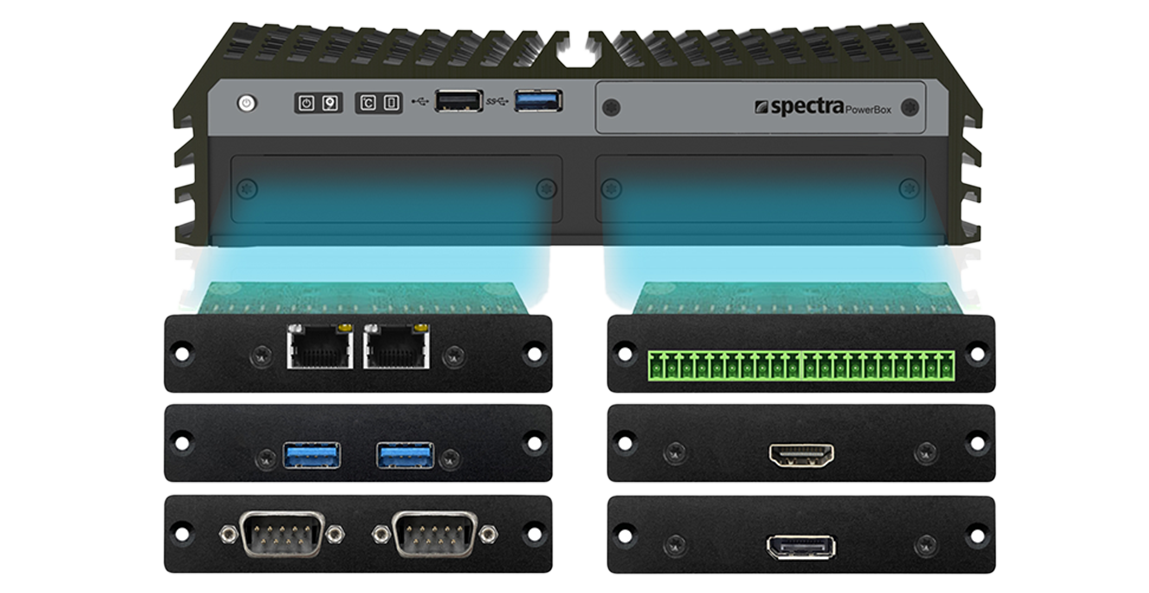

IO variants at a glance
❯
Many modern processes require an embedded PC that is directly integrated into the machine or
application, such as the control of autonomous transport vehicles in logistics or robot arms in
factory automation or
image processing in a machine.
image processing in a machine.
Spectra introduces the Spectra PowerBox 600, a box PC series that offers many application options due to its
features. The user can choose between six different i-Core processor variants of the 9th generation. The most
powerful processor Intel Core i7-9700E with eight cores reaches 4.4 GHz at a TDP of 65 watts. The most
economical processor is the Intel Core i3-9100TE with four cores and 3.2 GHz at a TDP of 35 watts.
A 2666 MHz DDR4 SO-DIMM with a capacity of up to 32 GB is used as working memory. Further storage options are offered by a 2.5-inch SATA slot, two mSATA slots and an M.2 2280 M-Key socket that supports the NVMe protocol.
A 2666 MHz DDR4 SO-DIMM with a capacity of up to 32 GB is used as working memory. Further storage options are offered by a 2.5-inch SATA slot, two mSATA slots and an M.2 2280 M-Key socket that supports the NVMe protocol.
Fit for space-critical applications
The following expansion options enable easy customization: plug-in modules for DisplayPort, HDMI, RS-232/422/485, 16-bit digital I/O, USB 3.2 Gen1 and LAN port as well as two mini PCIe slots, a SIM card slot and an M.2 2230 E-Key slot.
The integrated UHD Graphics 630 GPU allows the connection of two independent displays, which can be connected
via a VGA port with Full HD resolution and a DisplayPort with 4K resolution.
And process connectivity is enabled by two GbE ports and two RS-232/422/485 interfaces, as well as 6 USB ports (three USB 3.2 Gen1 and three USB 2.0). The Spectra PowerBox 600 series is fanless, robust and very compact.
The small dimensions of 224 x 162 x 64 mm – the footprint corresponds to approximately one DIN A5 sheet – are ideal for use in space-critical environments. ▪ ds
And process connectivity is enabled by two GbE ports and two RS-232/422/485 interfaces, as well as 6 USB ports (three USB 3.2 Gen1 and three USB 2.0). The Spectra PowerBox 600 series is fanless, robust and very compact.
The small dimensions of 224 x 162 x 64 mm – the footprint corresponds to approximately one DIN A5 sheet – are ideal for use in space-critical environments. ▪ ds
