Robust IP67 D-SUB connectors

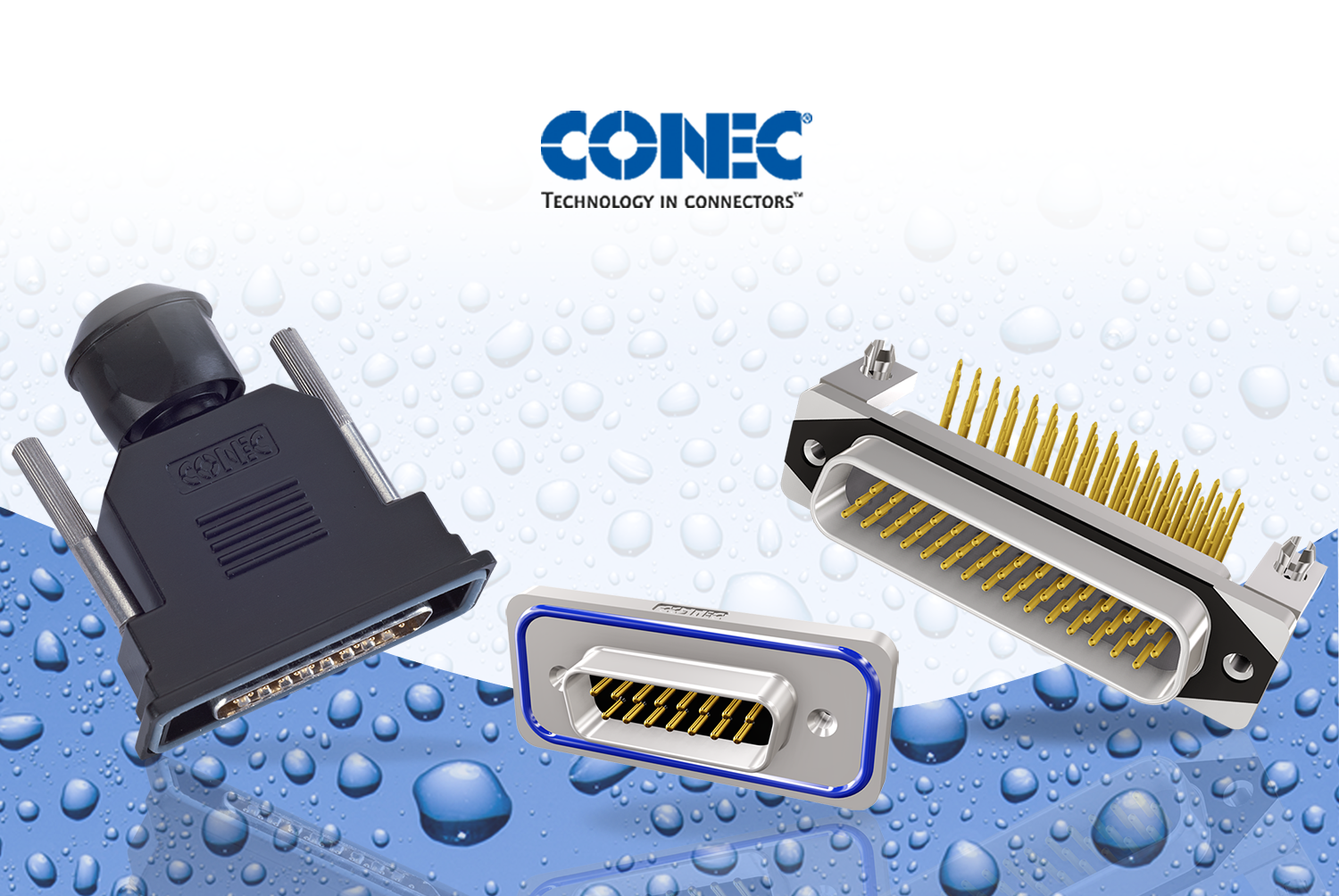

For industrial use in harsh environments, connector systems are needed that meet special requirements. The CONEC range includes a wide variety of IP67 D-SUB connectors and corresponding protective hoods.
D-SUB connectors are used in numerous fields of application, for example in automation technology, drive technology, cable assembly, machine manufacturing, power supply, transport industry, communication technology, process automation, control engineering, telecommunications and medical technology. They are used for housing and device connection, industrial interfaces, testing and diagnostic equipment and are also widely used in assembly and production lines.
In addition to the IP67 product series D-SUB, D-SUB High Density, Combination D-SUB, Combination D-SUB High Density and Filter D-SUB in standard design, CONEC offers the series Solid Body and CONEC SlimCon. The advantage of the Solid-Body and CONEC SlimCon connector series is their one-piece zinc die-cast housing with nickel-plated surface, which guarantees optimum protection for the system.
The CONEC SlimCon series stands out not only due to its very small dimensions, but it also includes D-SUB filter connectors with an integrated low-pass filter for conducted interference protection.
Thus, the interfaces to the interior of the device are not only perfectly protected against moisture but can also contribute to meet EMC requirements.
Connector technology

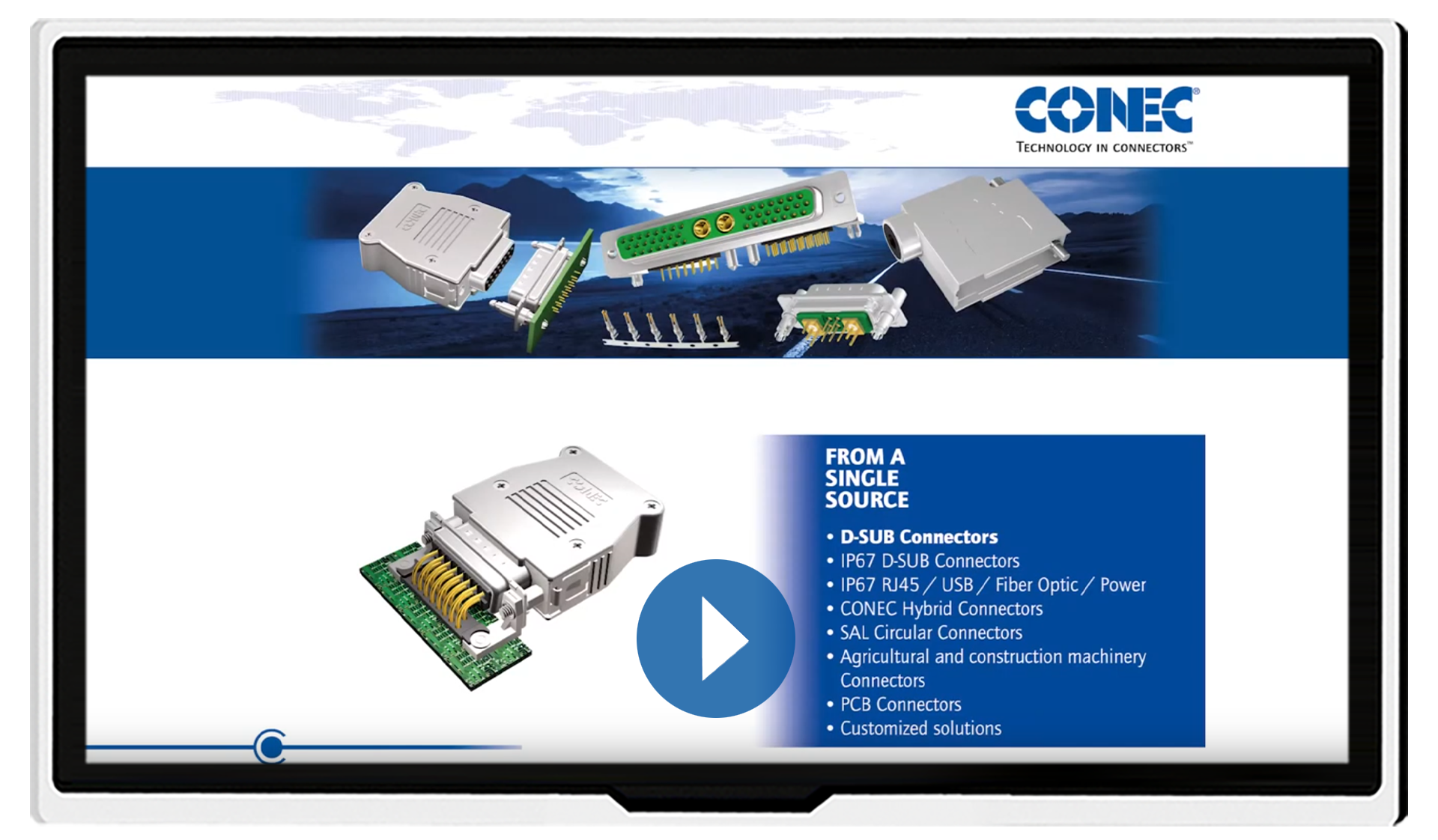

Video: CONEC Elektronische Bauelemente - At a glance!
The connectors mentioned on the left page (Solid Body and CONEC SlimCon) are designed for rear panel mounting and come with a 4-40 UNC internal thread. Corresponding threaded bolts made of stainless steel are standard parts of the product series. In addition to the connectors, various IP67 D-SUB protective hoods are also part of the CONEC product range. As a metallized version, IP67 hoods also provide protection against electromagnetic interferences. Despite the compact design, the IP67 hoods have sufficient space to accommodate all D-SUB connectors as well as Combination D-SUB connectors with integrated coaxial or high current contacts. The mounting screws are made of stainless steel.

Small construction forms

The IP67 CONEC SlimCon connector series are available in housing sizes 1 to 3 as male and female. Due to their small size and one-piece zinc die-cast housing, they are ideally suited for industrial and harsh environments. Four contact surfaces ensure that the connectors are always mounted evenly with the existing seal on the device wall, thus preventing overstressing of the seal and at the same time ensuring safe assembly at the customer's site.
CONEC SlimCon connectors are designed for a panel thicknesses between 0.8 mm and 1.3 mm.
The size of the housing corresponds to the standard dimensions of the D-SUB connectors and achieves a reduction of the occupied area of 48 to 52 percent compared to the IP67 protected connectors with extended sealing frame. This generally applies to all CONEC SlimCon connectors.
Size IP67 D-SUB CONEC SlimCon Standard IP67 D-SUB Reduction of the external dimensions compared to a standard IP67 connector Reduction of the mounting surface
1 30.88 mm x 12.8 mm 39.4 mm x 21.1 mm Width: 8.3 mm / 13.5 %

Height: 8.3 mm / 39 %
52 %
2 39.22 mm x 12,8 mm 47.7 mm x 21.1 mm 50 %
3 53.1 mm x 12.8 mm 61.4 mm x 21.1 mm 48 %
