Digital Signage Displays with FrontFace Software

A separate category of computer-based operating and display systems are large format displays that offer a high reading distance in order to provide those present in public spaces, offices, factory halls or outdoors with a display of notices, messages, news or advertising. These devices are called digital signage systems.
The all-in-one solution consisting of a large monitor, PC and FrontFace software enables sophisticated digital signage applications to be realized
HMI – Display
Depending on the application, MASS supplements large format displays with various PC modules and interfaces and can supply these with FrontFace software, which enables easy programming. The fields of application for such devices are diverse, for example industrial plants, exhibition halls, hotels, gastronomy, trade, wholesale markets (advertising and cash register systems). As display systems with Internet connection, they are suitable for timetables/flight schedules in railway stations, at airports, in public transport, as location overviews in city marketing/tourism, in the reception area of banks and information/advertising boards (indoor/outdoor) in environments with large audiences.

Displays in XL format

The units are available with LCDs of 21, 32, 43, 55, 65 and 86 inches diagonal and have full HD resolution (1920 x 1080 pixels) in the sizes 21 to 43 inches. From 55 inch diagonal, it is 4k (3840 x 2160 pixels). All are equipped with a glare-free glass front panel, the narrow edge of which is backprinted in black. This extends from edge to edge of the LCD and can also be damp cleaned thoroughly during operation. The unit housings are powder-coated in black RAL 9005.

Complete solution with display, PC and software possible

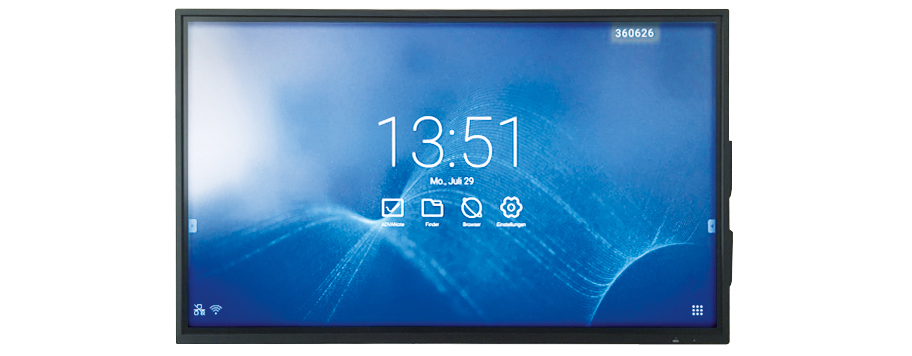

A NUC PC or an embedded box computer can be connected behind the display. MASS also offers an ILFD system (Interactive Large Format Display) for this purpose, the technical data of which can be found under "Learn more now". The displays can be set up in portrait or landscape format with wall mounting or on a pedestal. As industrial versions, the units are designed to be vibration-proof for 18/7 or 24/7 operation and remain available for at least 3 to 5 years.
In addition to the standard PC operating system, the FrontFace software is also available on request, which offers particularly simple programming combined with a comprehensive range of functions and features. This means that a system can be supplied completely from a single source. ds
