Drive technology

Waterproof fans (IP68)

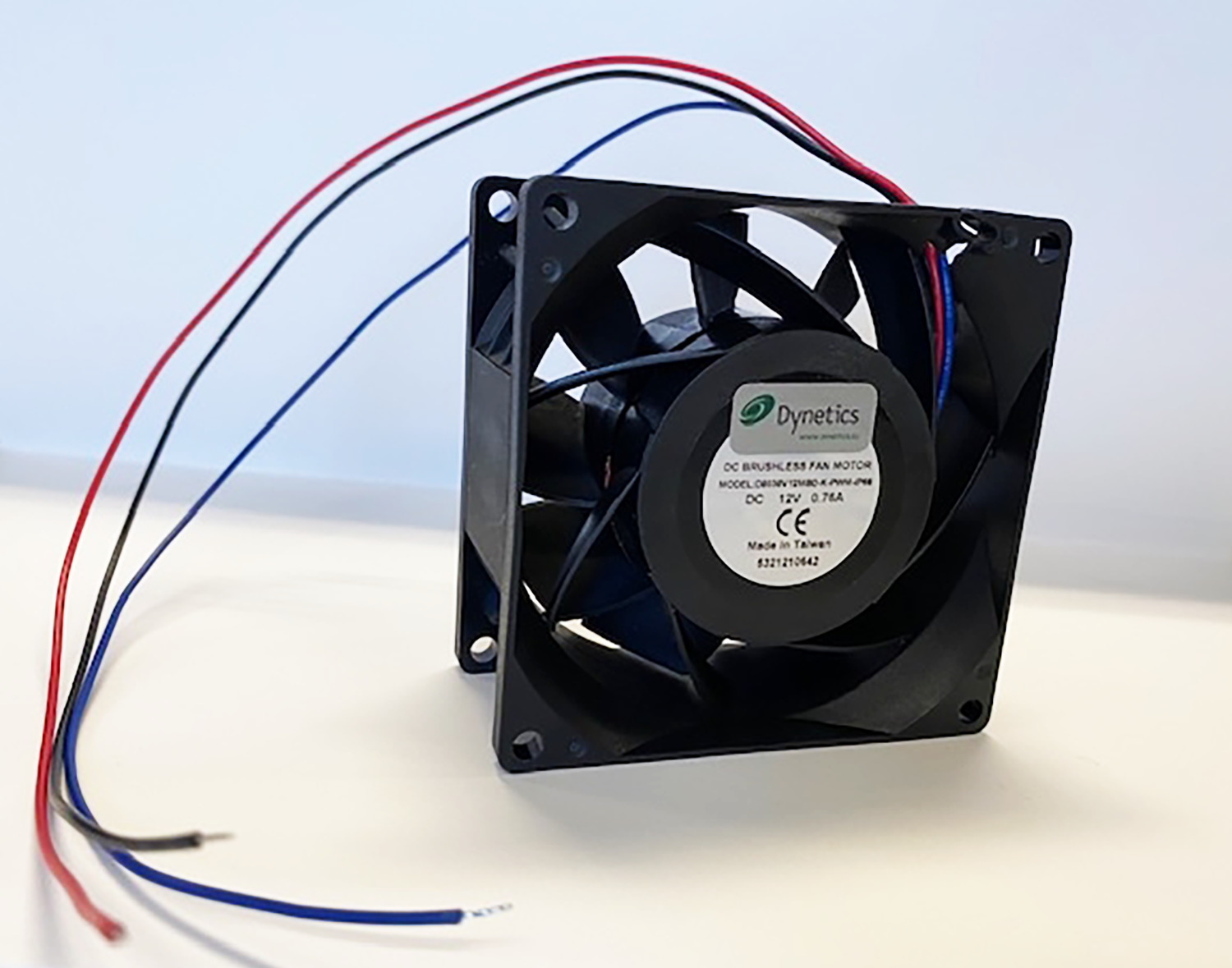

In the size 80 x 80 x 38 mm, Dynetics offers the DYD8038V12MBD-K-PWM-IP68, a waterproof fan with an variable speed control (PWM), which can further reduce power consumption and noise. This is particularly advantageous when a device is in idle mode. The fan has a ball bearing, weighs 177.6 g and is operated with 12 V/DC. It generates a volume flow of 78.8 CFM at a static pressure of 19.3 mm H2O. Fan housing and fan blades are made of thermoplastic (PBT, UL94V-0). The fan can be operated in the temperature range from -10 °C to + 70 ° C. The insulation resistance is at least 10 MΩ at 500 VDC. The dielectric strength is 500 VAC for 1 minute (5 mA). According to customer requirements, the fans can be equipped with additional functions (e. g. speed monitoring, alarm function in case of speed reduction) and with options such as customised solutions and mechanical adaptations (cables, connectors, etc.). The fans are RoHs compliant and available in various supply voltages. ds
Overview waterproof fans
