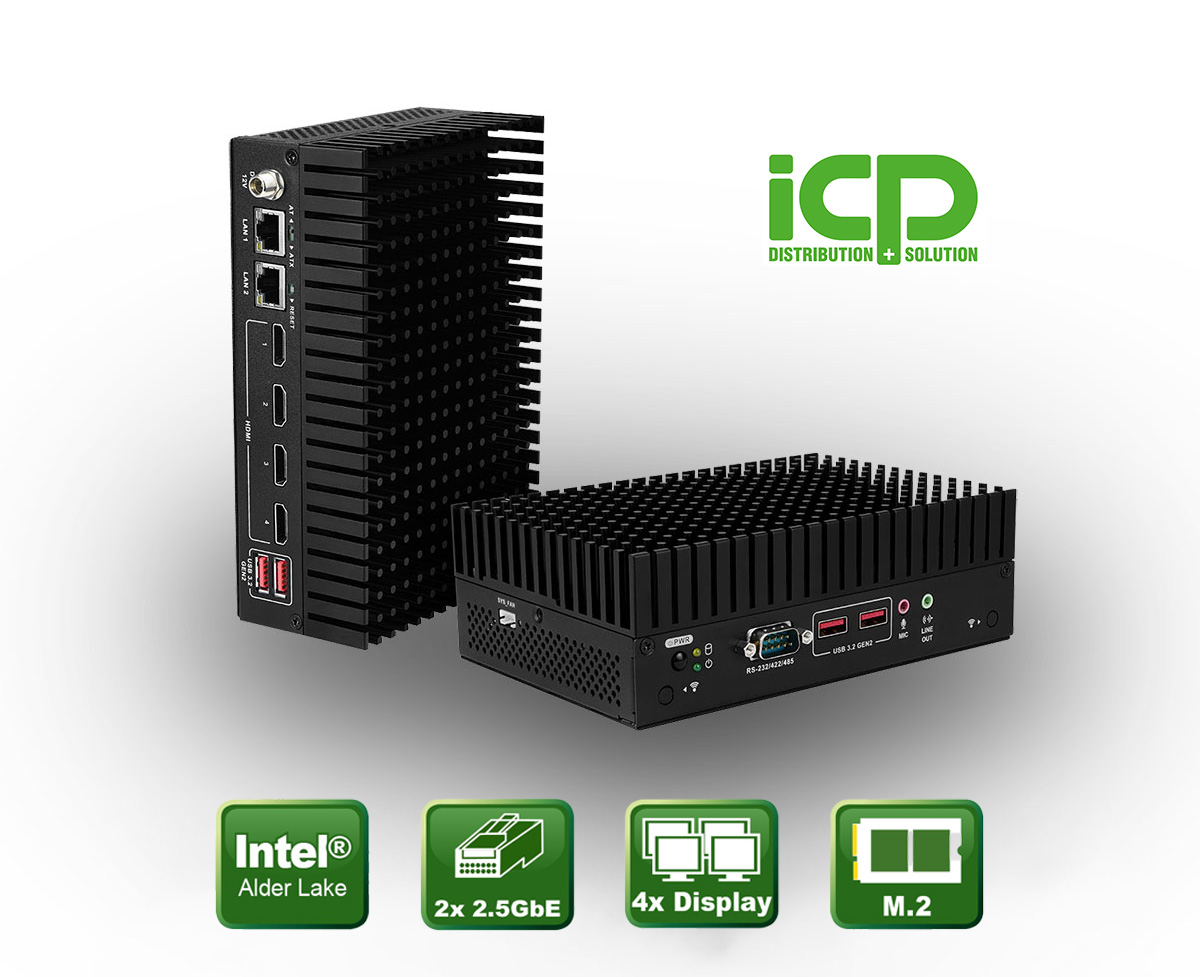

Multifunctional embedded system with four HDMI connections
With the IDS-330-ADL-P, ICP Germany offers another compact and powerful embedded system suitable for applications in automation, industrial control, machine vision and data loggers.
The IDS-330-ADL-P supports the 12th generation Intel® Core™
I processors and is available in two variants.
You can choose between an Intel® Core™ i5-1235U and an i7-1255U processor. Both are equipped with 10 cores, which are divided into eight efficiency cores and two performance cores. They also each have twelve threads. The i5 has a maximum turbo frequency of 4.40 GHz, while the i7 offers up to 4.70 GHz.
You can choose between an Intel® Core™ i5-1235U and an i7-1255U processor. Both are equipped with 10 cores, which are divided into eight efficiency cores and two performance cores. They also each have twelve threads. The i5 has a maximum turbo frequency of 4.40 GHz, while the i7 offers up to 4.70 GHz.
![](/wa3000_logo.jpg)
Industrial PC
High performance thanks to Intel® Core™ i5

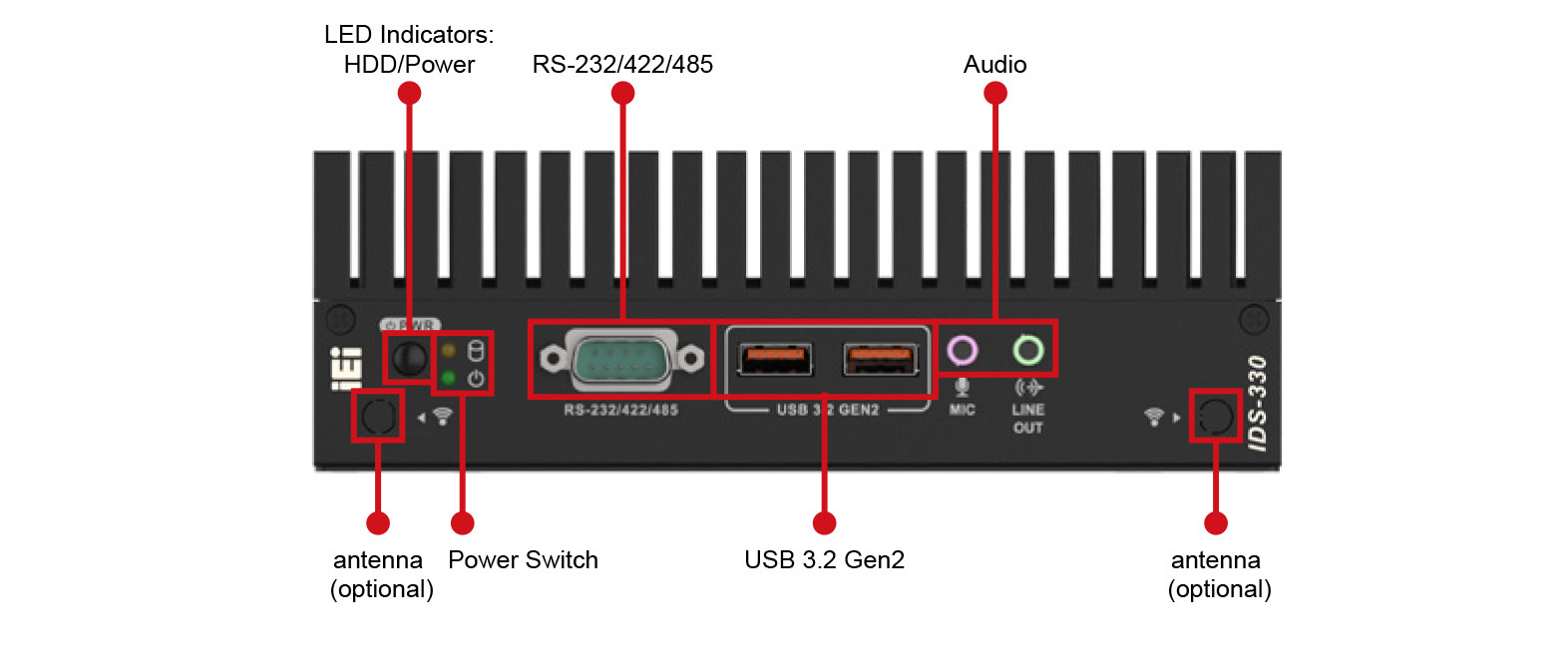

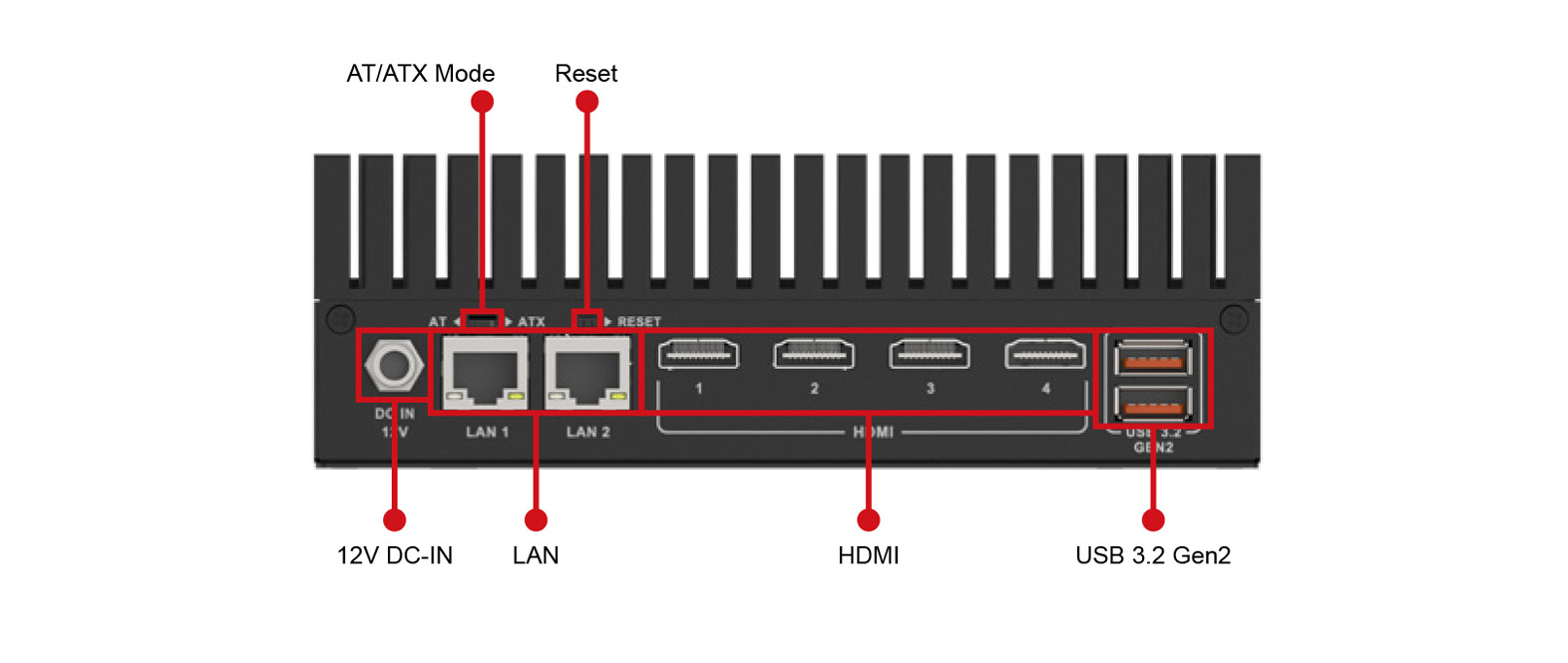

The RAM is pre-equipped with 8 GB LPDDR4 RAM and can be expanded to up to 16 GB. An M.2 B Key 3042/52/80 and a 2280 M-Key slot are provided for memory. The special feature of the IDS-330-ADL-P is its four HDMI ports, allowing four displays to be operated with a resolution of 4096 x 2160 at 30 Hz. Additional peripheral devices can be connected via four USB 3.2 ports or the RS-232/422/485 interface. The two Intel® I225V LAN 2.5GbE controllers provide the basis for fast network communication. An M.2 2230 E key slot can be used for extensions such as Wifi or additional interfaces.
![](/magazines/WA3000_2024/top_focus_february-2024/content/icp/2/IDS-330-Bild-04.jpg)
System variants are possible

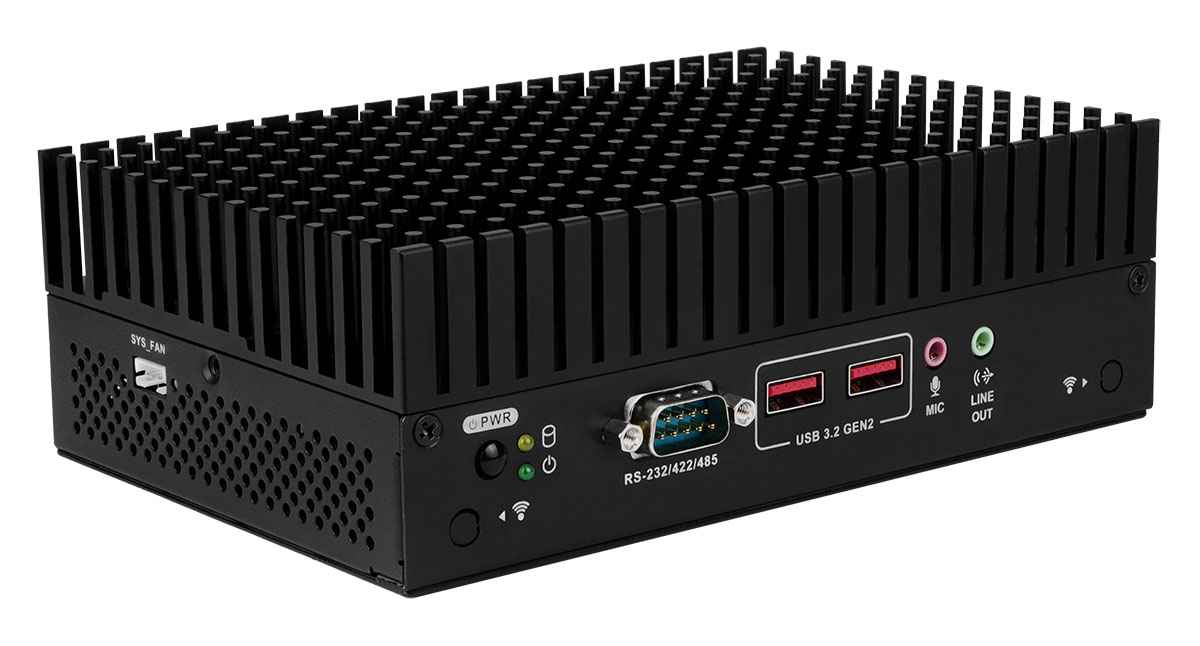

The IDS-330-ADL-P can be used with a voltage input of 12 V and an ambient temperature of -10 °C to 40 °C and can be mounted using VESA75/100.
On customer request, ICP Deutschland can supply the embedded PC pre-equipped with suitable industrial RAM and mass storage devices.
