Minimizing vehicle downtime

Overmoulded AT connectors from CONEC are suitable for customized control of work machinery and trailers even under harsh environmental conditions

Vehicles used in forestry, agriculture, and waste management, their trailers and construction machinery are constantly exposed to changing weather conditions, rain, and sometimes heavy contamination. At the same time, the degree of automation is increasing and with it the need to equip machines with sensors and other electrical components.
Connector technology
Protection class IP67/IP 69K
The integration of electrical and electronic components requires particularly secure connectors capable of withstanding high mechanical stress and harsh environmental and weather conditions. Efficient fertilization and water management are becoming increasingly crucial in agricultural technology, for example. By intelligently networking various data, farmers can irrigate their fields accurately and proactively supply nutrients.

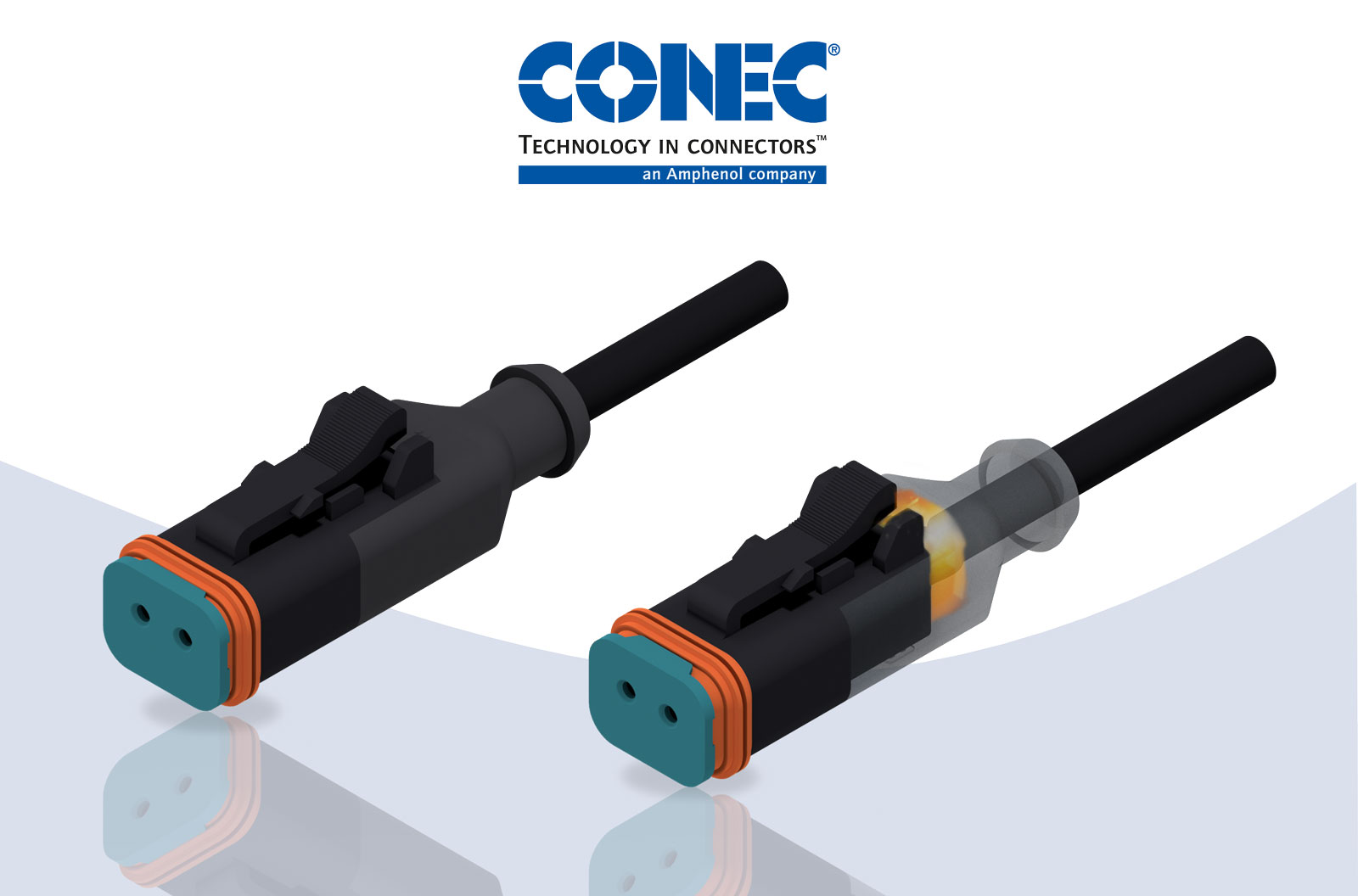

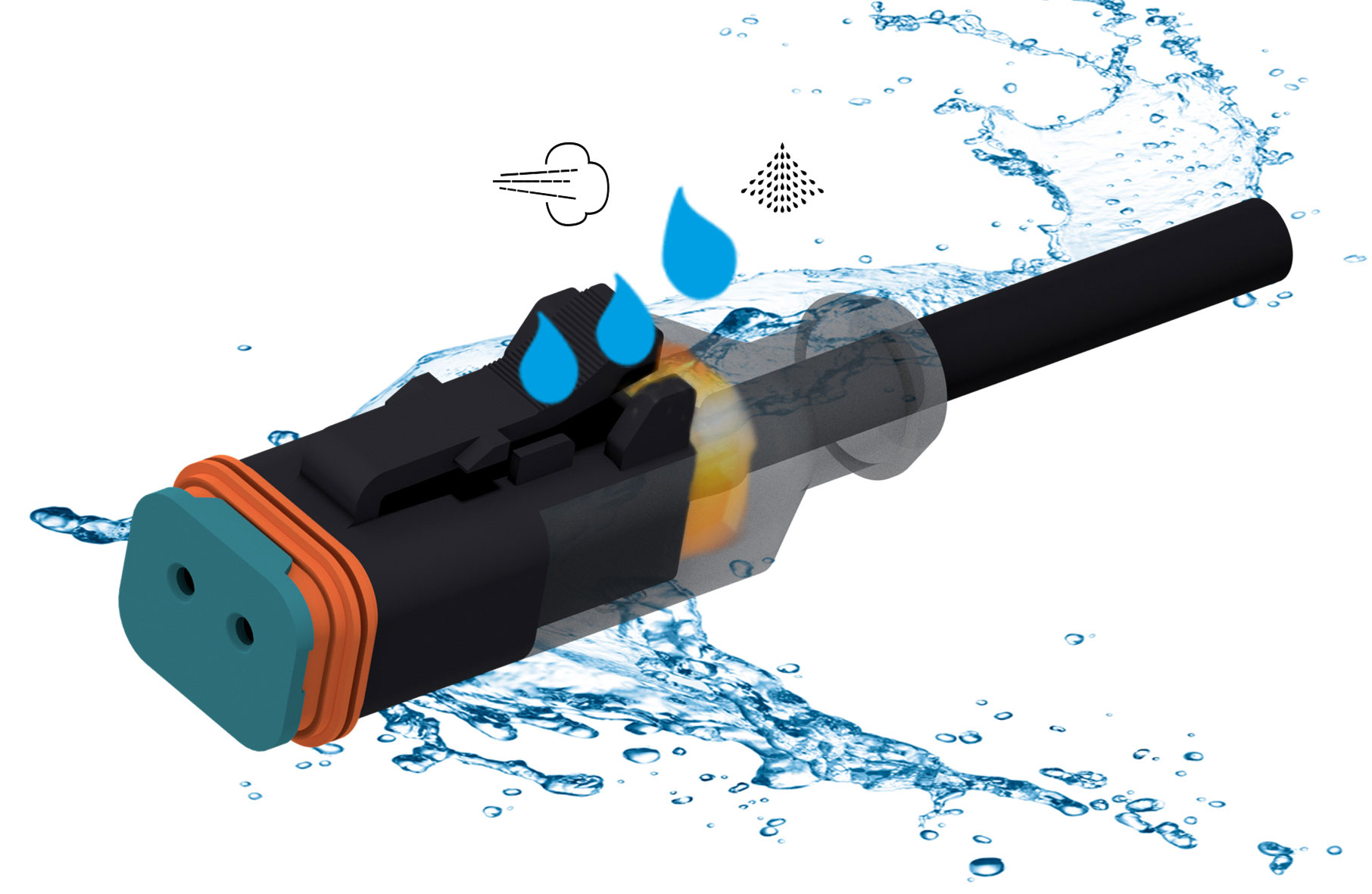

The overmoulded AT connectors from CONEC offer a high level of IP protection (IP67/IP69K) right down to the cable. Especially in short connections, the connected electronics and connector are optimally protected against moisture or oils, thanks to capillary action. Optional plastic corrugated tubes further enhance the mechanical protection of the cable.

For easy and user-friendly application, there are variants with protection circuit and LEDs. The LEDs visually indicate the switching states at the connector. Custom cable lengths can be provided upon request. ds


  • Compact design
  • Tool-free, secure and quick locking
  • Consistant protection from the housing into the cable
  • Tamper proof
  • Protection class IP67 / IP 69K in mated condition
  • Electrically tested

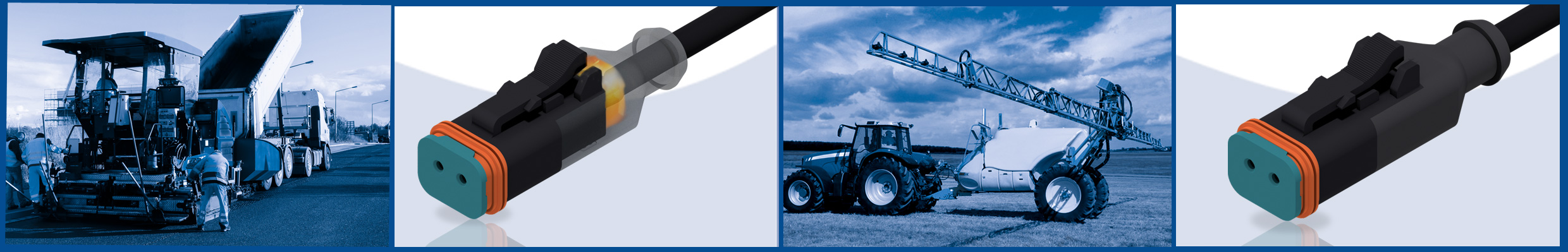

Fields of application

  • Transportation industry
  • Municipal technology vehicles
  • Agricultural and construction machinery
  • Road construction
