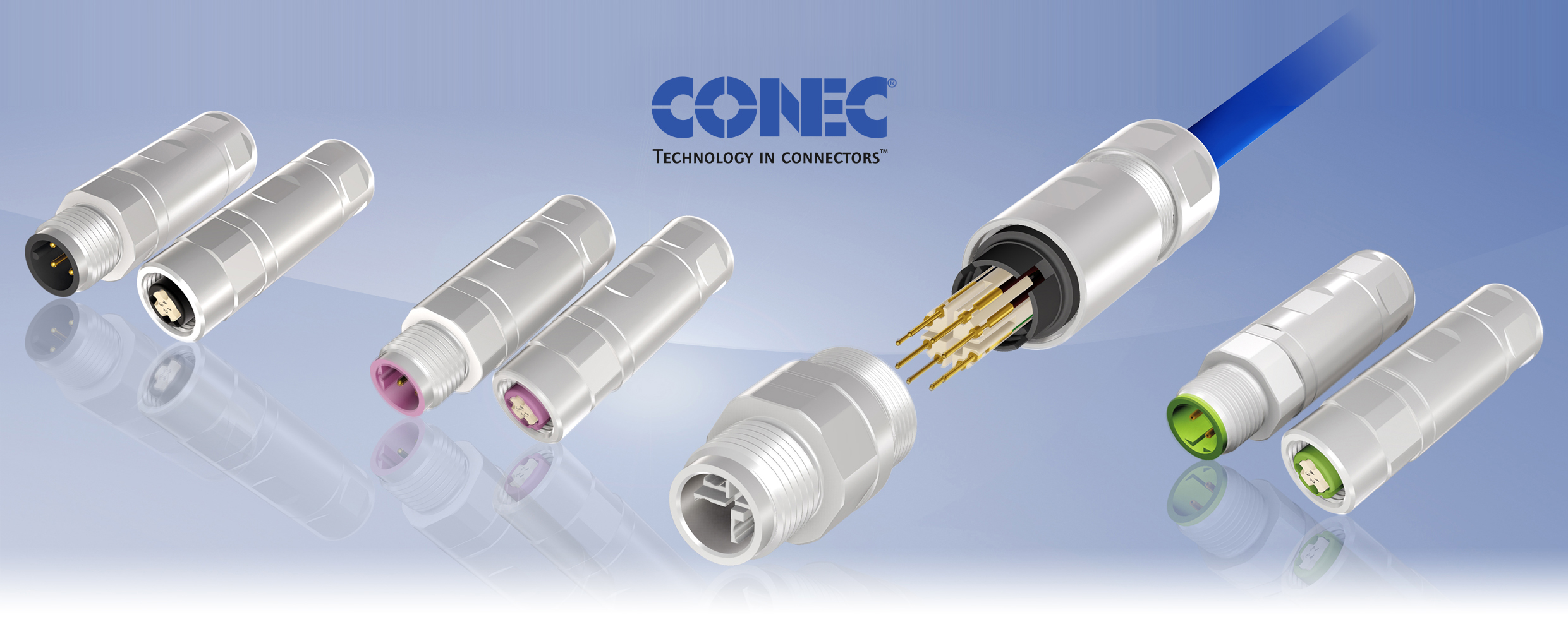

The connector is available in codings A, B, D, and X. The very compact and lightweight design is ideal
for
applications where space and weight are limited. The CONEC M12 Crimp X-coded is designed for Ethernet
applications with data rates up to 10 Gigabit/s, allowing applications with high data rates to be
implemented in an industrial environment.
The turned crimp contacts can take flexible wire cross-sections from AWG 28 to AWG 22 (with X coding)
and
AWG 24 to AWG 18 (with A, B and D coding).
They provide a reliable and gas-tight connection to the
stranded
wire, which ensures a constant low contact resistance even under extreme conditions. In addition, the
female
connectors are also available with so-called closed entry contacts offering an additional plug-in
security
of the socket contacts.
The CONEC M12 Crimp connectors are protected against loosening due to vibrations during operation by a
tactile vibration lock.
The connector shell is entirely made of metal and therefore fully shielded.
The
connectors are designed for cable diameter of 4.5 to 8.3 mm and the shielding connection is done 360° to
the
full extent. All versions meet protection degree IP67 when mated and bolted.
