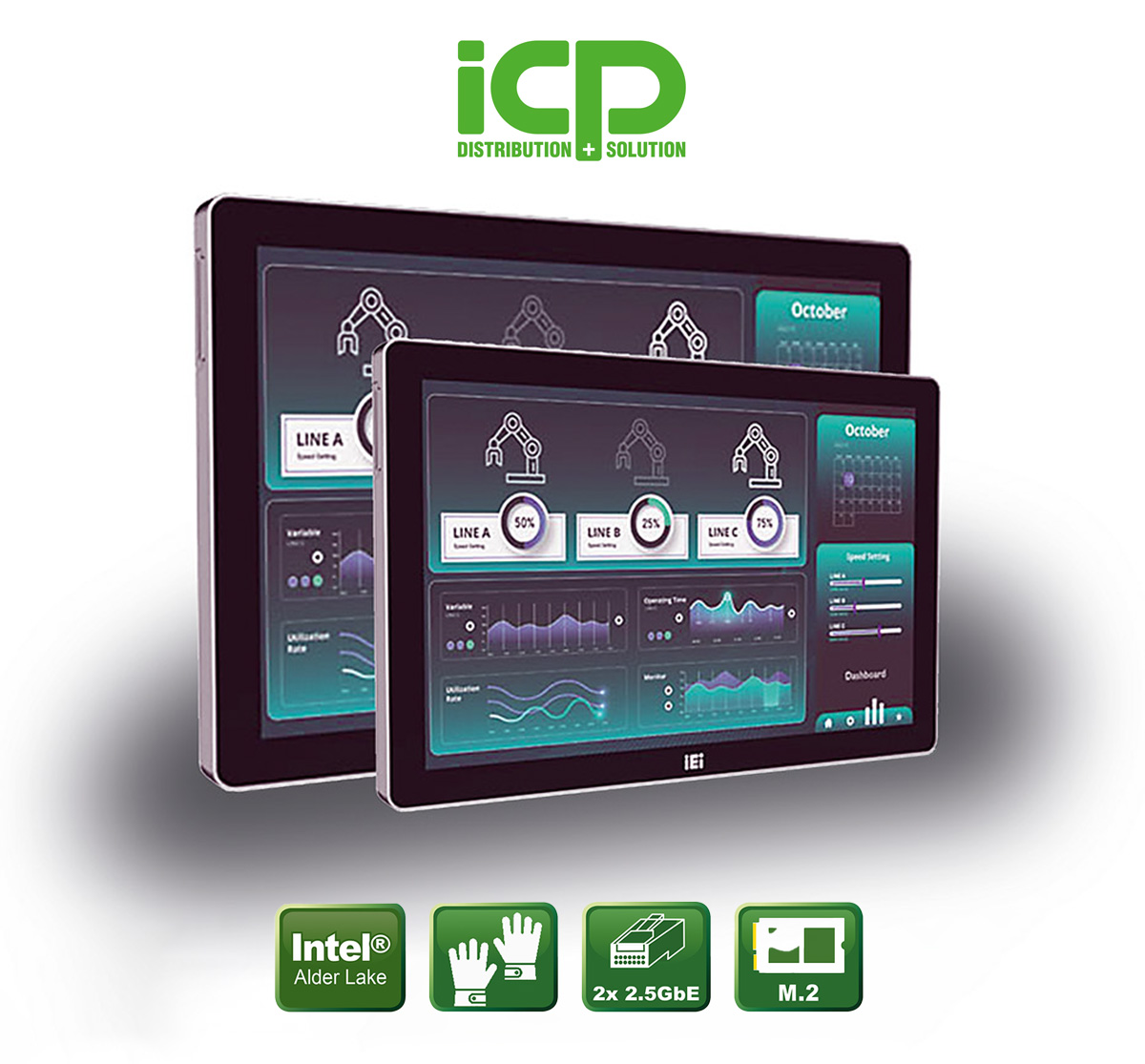

All-in-One PC series with aesthetic narrow bezel design

The portfolio of ICP Germany expands with the versatile AFL4-ADLP Fanless All-in-One PC series: It is the ideal solution for areas such as factory automation, retail, digital signage, and POS (Point of Sale).
ICP Deutschland erweitert sein Portfolio um die vielseitige AFL4-ADLP Fanless All-in-One-PC-Serie: Sie ist eine ideale Lösung für Bereiche wie Fabrikautomation, Einzelhandel, Digital Signage und POS (Point of Sale).
Industrial PC

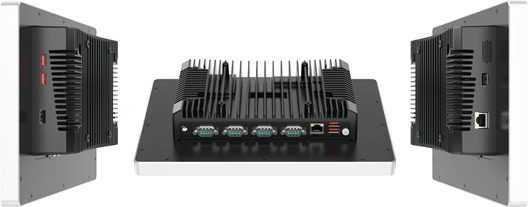

Numerous I/O interfaces
Numerous I/O interfaces
The AFL4-ADLP series features a slim design with a very narrow bezel, which is not only aesthetically pleasing but also allows the screen to be fully appreciated. The Panel PC is available in three sizes with 10.1-inch, 12.1-inch, and 13.3-inch. The aluminium housing with integrated heat sink is extremely robust and is designed so that the Panel PC can be operated without a fan despite the high-performance CPU.
Compared to the AFL4-EHL series, the AFL4-ADLP series is equipped with more powerful Intel® Core Mobile i7/i5/i3 processors of the twelfth generation. The Intel® Core i3-1220P features 10 cores and 12 threads.
Anti-glare and Anti-UV PCAP
The base clock frequency is 3.30 GHz, the maximum Turbo clock frequency is 4.40 GHz. Intel® Core i5-1240P and Intel® Core i7-1260P each have 12 cores and 16 threads. The i5 has a base clock frequency of 3.3 GHz, the i7 3.40 GHz. The maximum Turbo clock frequency is 4.40 GHz for the i5 and 4.70 GHz for the i7. The optimized PCAP touchscreen of the AFL4-ADLP series offers 10-finger operation and is equipped with anti-glare and anti-UV coating. It ensures excellent readability in various lighting conditions. In addition, the touchscreen supports operation with gloves and wet hands, and its 7H hardness rating makes it especially resistant. The BIOS of the AFL4-ADLP is touch-enabled and can be operated without a separately connected keyboard. Five USB interfaces, including 2x USB 3.2 Gen2, 2x USB 3.2 Gen1 and 1x USB 2.0, 1x HDMI, as well as 4 COM interfaces are available for peripheral devices.
The AFL4-ADLP also offers advanced wireless communication capabilities such as Wi-Fi 6E as well as Bluetooth® 5.2, and two 2.5 GbE network interfaces. Two M.2 slots with M Key are available for expansion. With an input voltage of 12 V DC, the AFL4-ADLP All-in-One PC series can be used in environments ranging from -10 °C to 60 °C. ICP Germany delivers the AFL4-ADLP equipped with SSD and operating system as a ready-to-use system on request.
